1 Meter Stage Light LED Pixel Bar

LCL-RGB-DBM2738
Delivery:
EXW
minimum order:
2
Supply Ability:
10~15 /
Country of Origin:
Shenzhen
27*38mm LED Pixel Bar is an eye-catching element for stage, nightclub, and DJ booth decoration. High-quality black aluminum housing and diffuser in clear or opal white for your choice. There are 4-pin DMX input and output cable connectors on the side of the housing, which are IP65 waterproof and customizable in length. LED pixel bar uses 60 RGB SMD5050 LEDs as the light source, with 20 pixels per meter and a group of 3 LEDs.
Quantity:
Contact Now
Add to Cart

1 Meter Stage Light LED Pixel Bar


Video for Pixel Bars:

0.5m LED Pixel Bar built into a triangle

✅ Description of LED Pixel Bar:

The LED Pixel Bar Light is a premium aluminum-linear LED strip designed for professional lighting applications. Featuring 60 high-brightness SMD5050 LEDs per meter, DMX512 control, and rugged M10 threaded rod design, it delivers creative, pixel-perfect lighting for stages, architectural accents, retail displays, and more.
The 1m LED pixel bar uses a black aluminum shell and a transparent diffuser, which is of high quality and good lighting effect. Standard lengths of 0.5m and 1m, other lengths can be customized. The pixel bars can be RGB or RGB+W, IP65 outdoor protection grade, and the pixels are controllable. Each pixel bar light has an M10 threaded rod on both ends for creating different lighting structures.

✅ Key Features for LED Pixel Bar Light:

DMX512 Control: Perfect synchronization for dynamic effects (gradients, chases, music sync).
High-quality Aluminum Housing: black finish, anodized, excellent heat dissipation performance.
M10 Threaded Rod Ends: Easy screw-mounting for building structures, such as cubes, pyramids, and hexagons.
Custom Lengths: 0.5m / 1m / 1.5m / 2m (non-standard sizes available on request).
Dual Diffuser Options: Choose clear (high-intensity) or frosted (soft glow) covers.

✅ Basic Details of Pixel Bar Light:

  • 27mm (width) * 38mm (height)
  • Standard lengths are 0.5m and 1m, other lengths can be customized
  • High-quality black aluminum shell, PC flame retardant material
  • Diffusers available in clear or opalescent colors
  • A variety of creative designs can be created by connecting metal balls
  • Stability and safety testing before shipment
  • Standard DMX512 control, the starting channel needs to be set through external equipment
  • RGB or RGB+CCT emitting color
  • IP65 protection for stage LED light bar
  • 2-year warranty

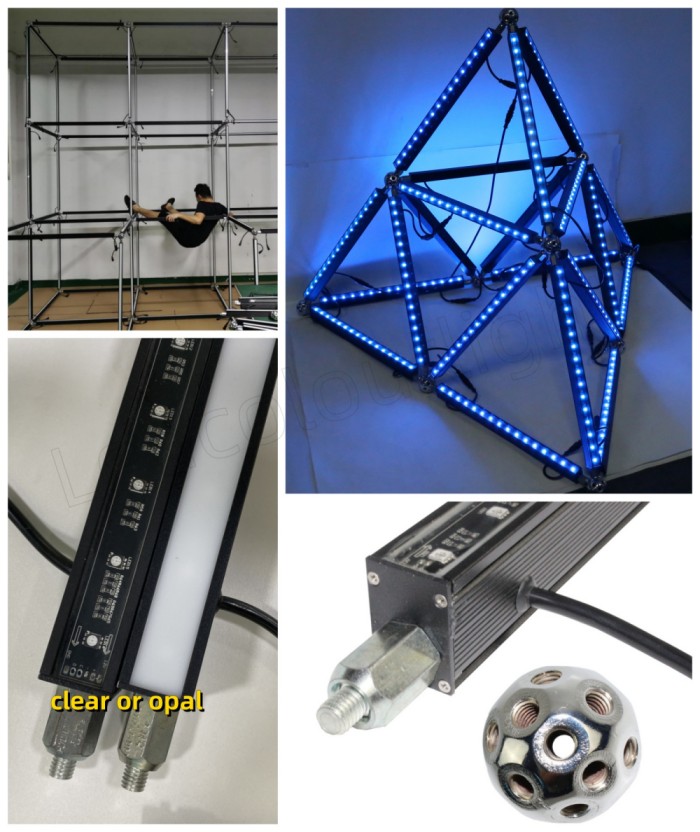

led pixel bar

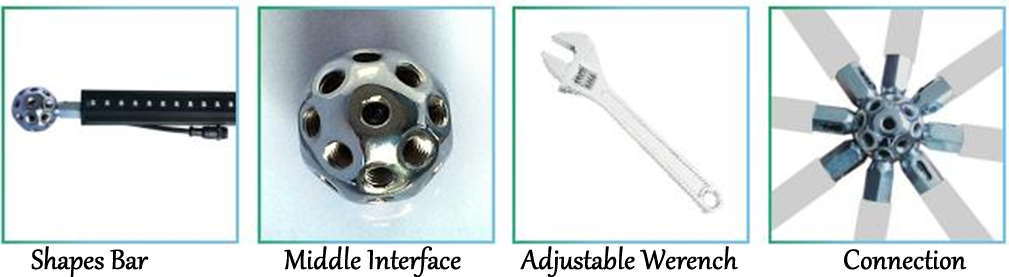

installation accessories for LED pixel bar

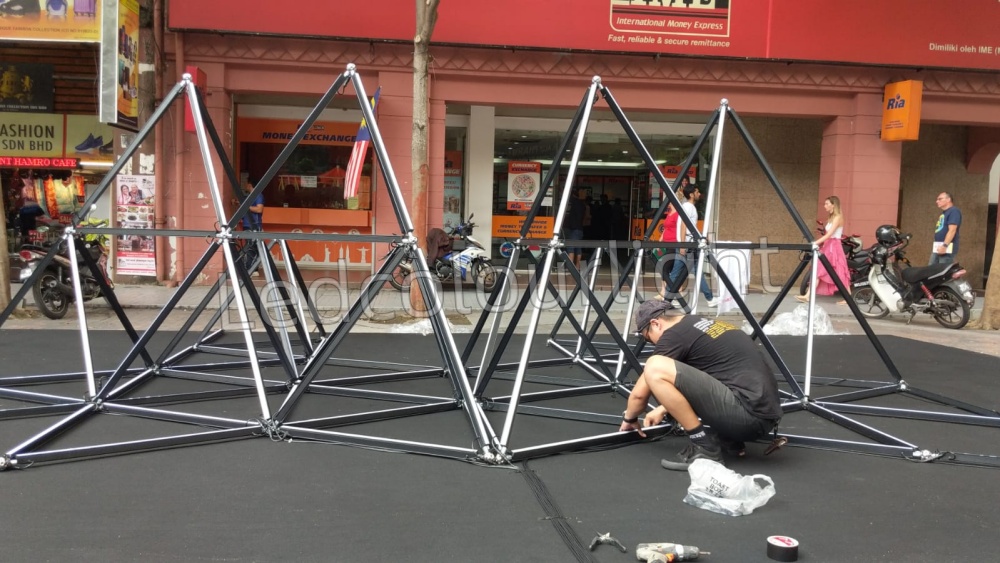

1m pixel bar with milky white diffuser
We are an SGS-certifiedandTÜV-certified manufacturing facility, demonstrating our commitment to quality, reliability, and customer satisfaction.

✅ FAQ (Customer Concerns Addressed)

Q: Can I have a 1.2-meter-long Pixel Bar?
A: Yes! Custom lengths (0.5m–2m) are available.
Q: How to control these lights?
A: Use any DMX512 controller or software (e.g., ENTTEC, Luminair).
Q: Are these pixel bars addressable?
A: Yes, each LED pixel bar can be set with a unique DMX address via an external device.
Q: Can it survive outdoors?
A: Absolutely. IP65 rating protects against rain and dust—but avoid submersion.
Q: Warranty?
A: 2-year limited warranty + lifetime technical support.
