100mm IP68 Waterproof 24v LED Pixel Lights

LCL-RGB-PL100M-1201-B
Delivery:
EXW
minimum order:
5
Country of Origin:
Shenzhen
Die-cast aluminum housing and milky white diffuser provide soft light. 12-piece Epistar SMD5050 RGB lamp beads are used in these 100mm 24v LED Pixel Lights, high brightness and long lifespan. If your project requires it, we can do dot string designs at 30 or 40 dot lights per string.
The starting channel can be set manually via an external device or automatically generated after the connection.
Quantity:
Contact Now
Add to Cart

100mm IP68 Waterproof 24v LED Pixel Lights



- Video for LED Pixel Light

30 pieces 24v LED lights per string, 24 meters long, 80 cm pixel pitch :




- Overview for 100mm LED Pixel Light:

100mm diameter, 12x0.2w SMD5050 lamp beads as light source, we also provide these LED pixel lights with 18x0.2w SMD5050 lamp beads. The 100mm LED pixel light adopts the standard DMX512 protocol, which can present exciting lighting effects such as chasing, breathing, and gradient. You can string them into strings of up to 30~40 dots without any voltage drop. These 100mm LED pixel lights have different top diffusers to choose from for different lighting effects. Each LED pixel light has two mounting holes for secure mounting.
led pixel light

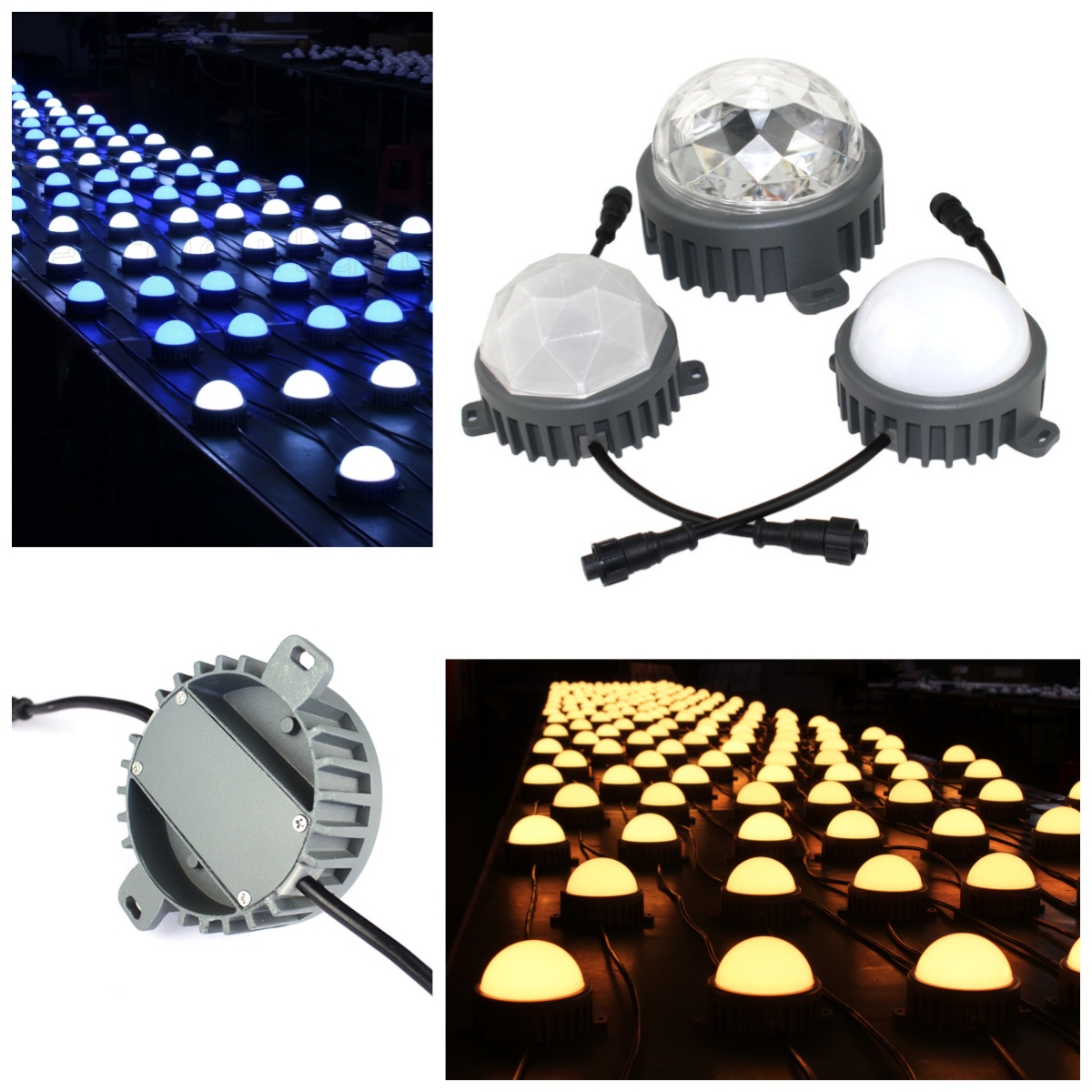

Details of 100mm LED Pixel Light:

  • Diameter:100mm,available in 83mm
  • Die-cast aluminum base and milky white diffuser, soft lighting effect; Choice of multi-sided opal diffuser or crystal diffuser etc.
  • Epistar LED chip, long lifespan, and high brightness
  • DC24V working voltage
  • The starting channel for each light can be set manually through an external device or automatically generated after the connection
  • Up to IP68 protection class

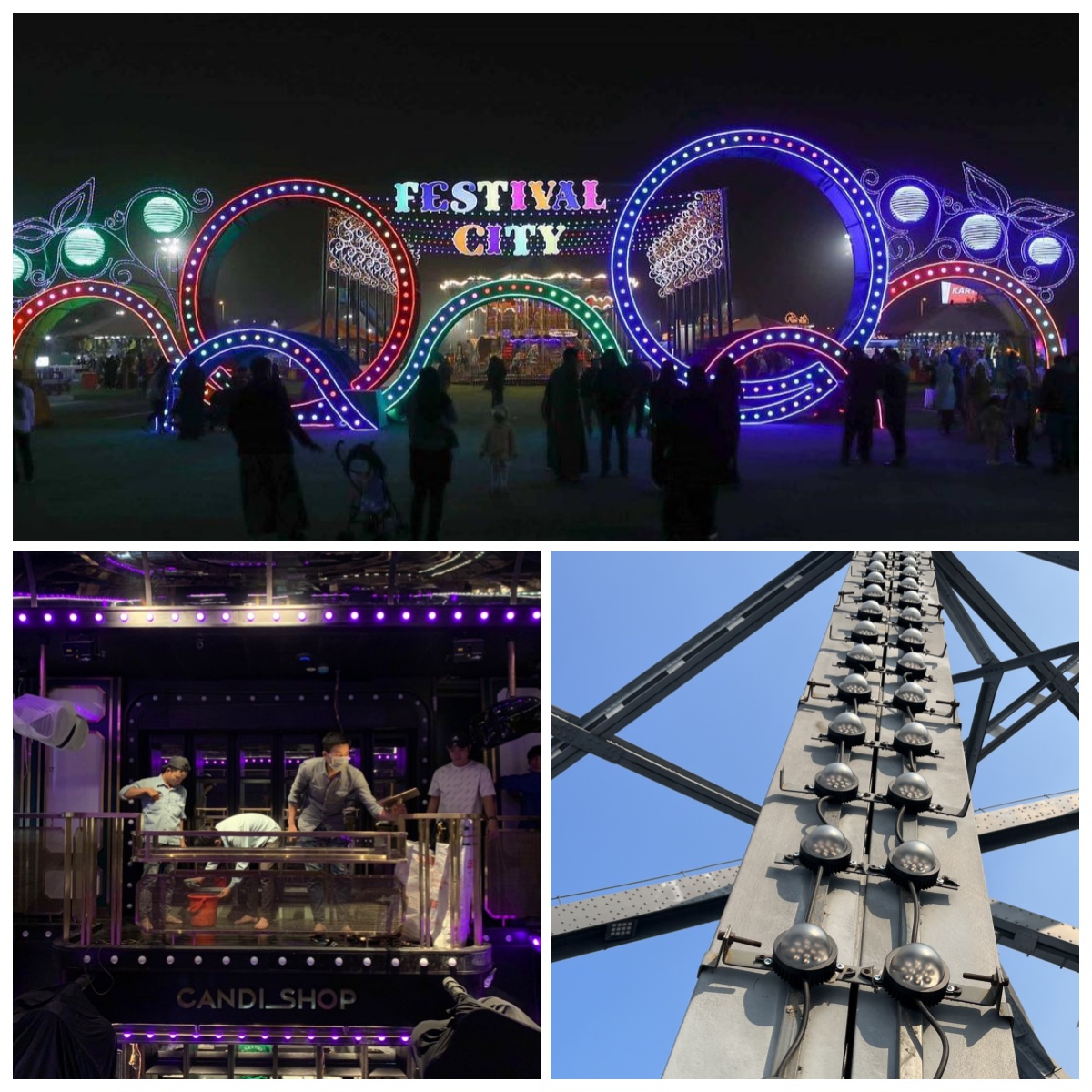

  • Popular in buildings, bridges, theme park decorations

For these IP68 waterproof LED lights, we use high waterproof grade and completely glue-sealed. IP68 can be used on or under water. Ledcolourlight workshop will do the waterproof testing for your order. The pixel spacing between LED points can be 200/300/500mm or customized. If you are looking for a product for your event, this 100mm LED pixel light would be a great choice.
