24V DJ RDM DMX LED RGB Light Bar
LCL-DBBT2725
Delivery:
EXW
minimum order:
2
Supply Ability:
10~15 / Day

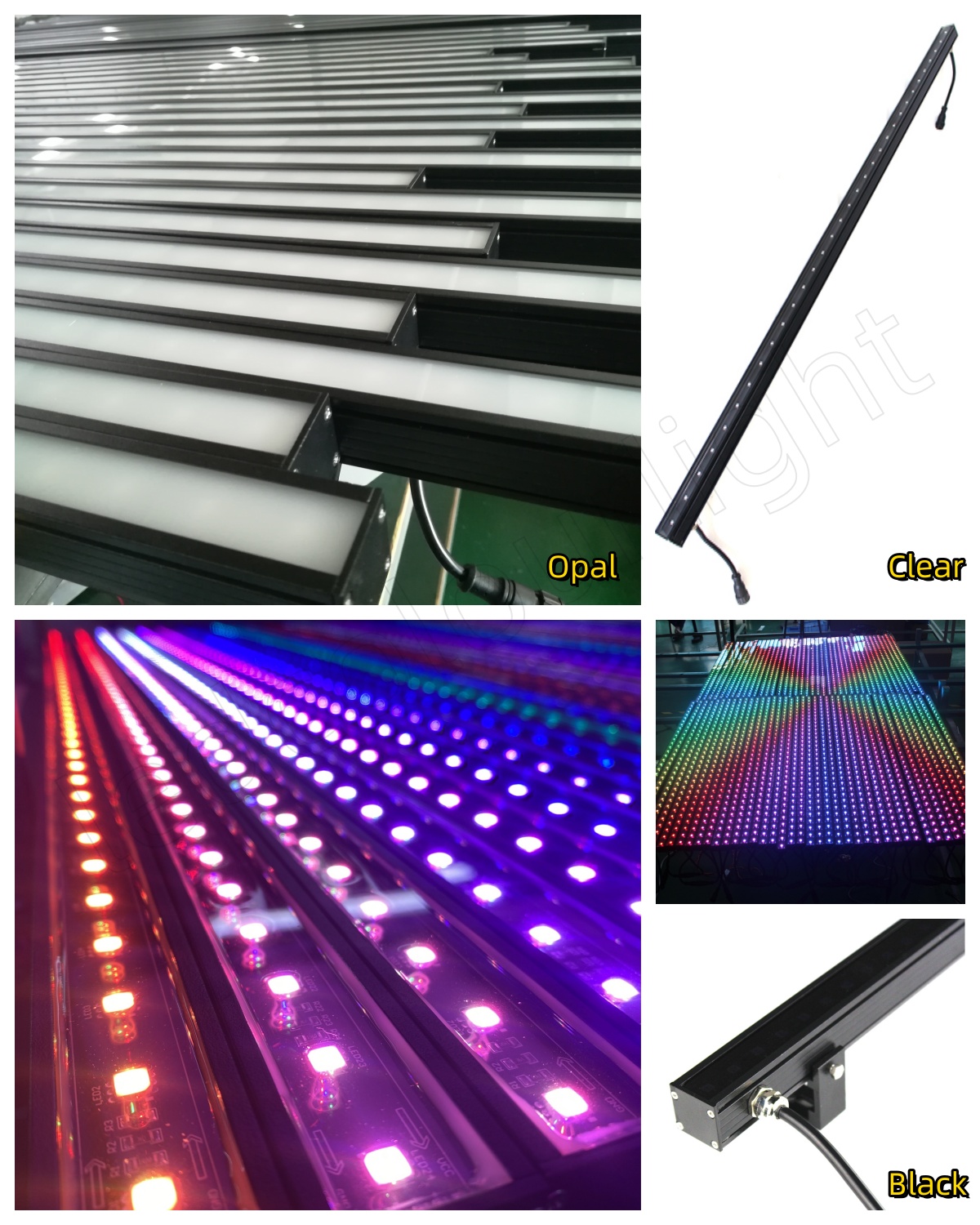

27*25mm DMX Pixel Bar is an outdoor IP-grade LED Pixel Bar equipped with 48 or 60 RGB SMD5050 LEDs. Each pixel bar is housed in a black aluminum housing and comes with a pair of mounting brackets for easy installation. Standard DMX512 protocol, pixels are individually controlled. Power and data are transferred via 4-pin cable connectors that is stable and customizable in length.
Quantity:
24V DJ RDM DMX LED RGB Light Bar
LED RGB Light Bar in Ledcolourlight showroom
DMX Light Bar Info:
This RGB light bar is easy to install, has a protection level of IP65, and is suitable for outdoor stage performances, theme parks, and event decorations. With the high-quality aluminum housing and bright SMD5050 LED, unique and colorful designs can be created. RGB LED light bar is controlled by DMX512, and multiple DMX light bars can display characters, images, and animations through DMX or Art-net controllers.
Features of RGB Light Bar:
- Outdoor IP65 protection
- 48 or 60 RGB SMD5050 LEDs per meter
- 16 pixels (48LEDs) or 10 pixels (60LEDs)
- 27*25mm size, black aluminum shell
- Three different diffusers are available: transparent, milky white, and black
- Available in lengths from 0.5m to 2m
- Standard DMX512 or UCS1903 TTL signal control
- Each dj LED light bar comes with a pair of mounting brackets for easy installation
- 4-pin DMX male and female on the bottom of the shell, customizable length
- This 24v LED light bar has two different height mounting clips for the installation
How can I install LED pixel bar? - Firstly, drill a hole on the mounting surface and insert the expansion bolt; then secure the bracket to the surface with screws; finally place the product on the bracket and secure with flat head screws.
