3M D40mm LED Neon Flexible Tube Lights

LCL-RGB-NS-D40-DMX-24V-12010
Delivery:
EXW
minimum order:
10 meters
D40mm LED flexible tube lights are designed to emit light uniformly in all directions, creating a smooth and consistent glow. They feature addressable LED technology (e.g., DMX512, WS2811, WS2812, or SK6812 chips), allowing for precise control of each LED segment for animations and effects.
Quantity:
Contact Now
Add to Cart

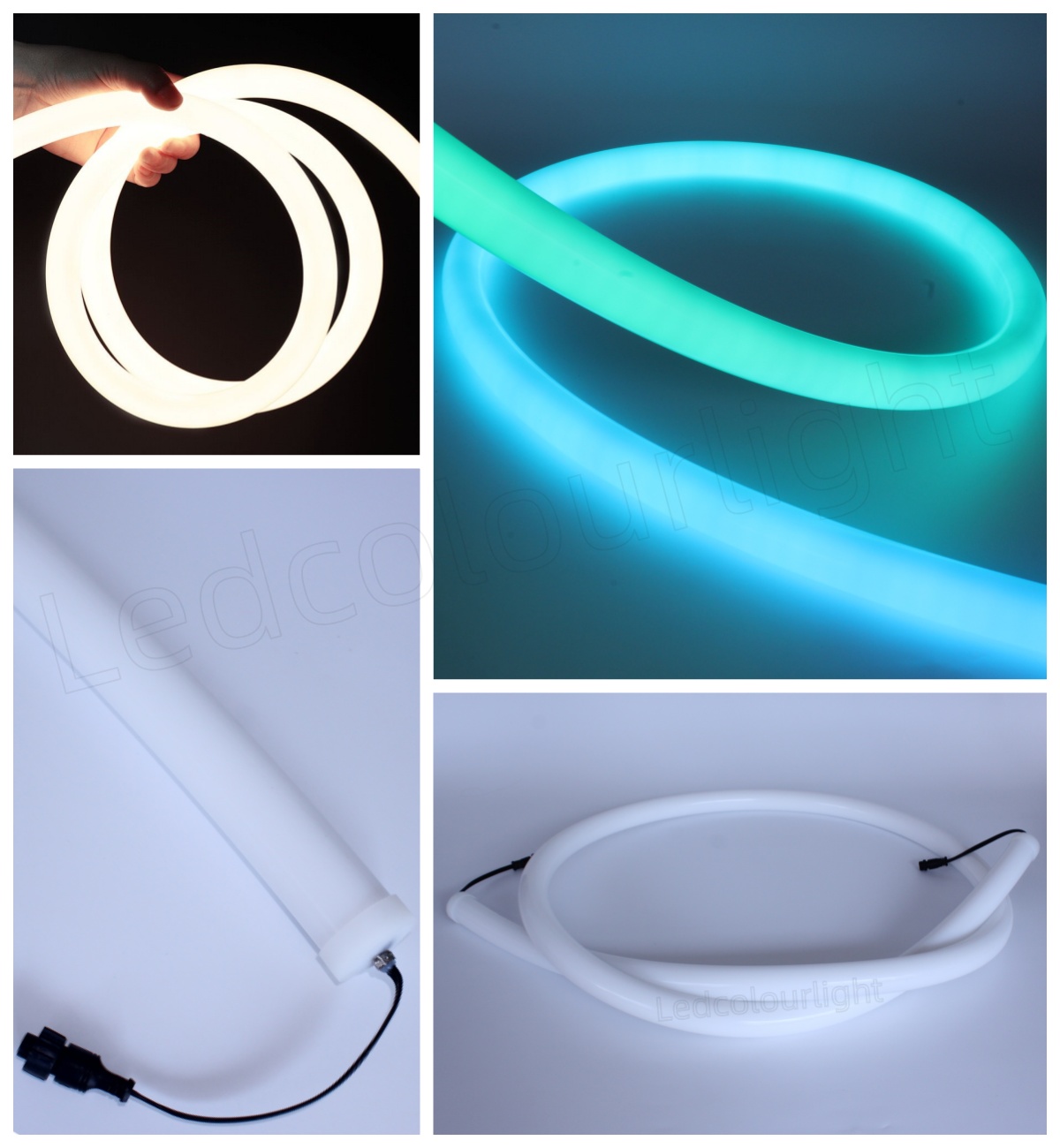

3M D40mm LED Neon Flexible Tube Lights


Flexible LED Tube Product Video:

DMX512 RGB control, 3M long


Description of LED Flexible Tube Lights:

Omnidirectional Lighting: With a flexible LED strip on both ends, the 360-degree design ensures that the tube emits light evenly in all directions. Flexible, allowing them to be bent. The opalescent silicone tubing softens the light, creating a lighting effect with no visible LED dots. RGB or RGBW LEDs for dynamic color options and effects. DMX512, WS2815, UCS1903 and other signal protocols, each pixel is controlled individually, 12 LED nodes form a segment.
led neon flexible

Features of LED Neon Flexible:

  • Size: D40mm, 3 meters long
  • Silicone tube, sofe lighting effects
  • RGB or RGBW LEDs, SMD5050
  • DMX512, UCS1903, WS2815, etc protocol
  • 120 LEDs per meter, 10 segments
  • Run under DC24V, 14.4W per meter
  • Flexible and bendable
  • 10cm per cut for D40mm flexible LED tube
  • Often rated IP65 to IP68

Installation Tips for LED Flexible Tube Lights:
Power Supply:
Match the power supply voltage -24V DC to the flexible LED tube's requirements. Calculate the total power draw and ensure the power supply can handle the full load.
Mounting:
Use compatible mounting clips, brackets, or channels to secure the tube in place. Avoid sharp bends or twisting to prevent damage to the internal components.
Wiring:
For longer runs, inject power at multiple points to avoid voltage drops. Normally, 5~6 meters connection requires re-injection of power. Follow the wiring diagrams for proper connections.
Controller:
If the flexible LED tube uses addressable LEDs, ensure you use a compatible controller (e.g., DMX512, SPI). Use software like Resolume, Madrix, or ELM for creating animations and effects.
Weatherproofing:
Ensure connectors and power supplies are properly sealed for outdoor installations. Use heat shrink tubing or waterproof connectors to protect exposed wires.
