30x47mm Pixel Light Tubes for Versatile LED Lighting Solutions

2025-06-20

Innovative 30x47mm Pixel Tube Light – Customizable LED Lighting for Endless Creativity

Introducing Ledcolourlight Premium 30x47mm Pixel Tube Lights

Elevate your lighting projects with Ledcolourlight high-performance 30x47mm pixel light bars, designed for flexibility, durability, and stunning visual effects. These sleek RGB light bars feature a black aluminum base for superior heat dissipation and a modern aesthetic. With customizable diffuser covers—available in square, curved, and flat designs—you can achieve the perfect lighting angle and diffusion for any application.

➣ Product Overview: 30x47mm Pixel Tube Light

1. Premium Construction & Design

The 30x47mm RGB pixel light tube from Ledcolourlight is designed for professionals who demand flexibility in architectural, interior, and stage lighting.

20x20mm Black Aluminum Base – Ensures superior heat dissipation, extending LED lifespan.
Pixel LED Technology – Delivers bright, uniform lighting with smooth color transitions.
Multiple Diffuser Options – Choose from flat, square, or curved covers to control light spread.
Diffuser Color Choices – Diffusers available in milky white (soft glow) or black (discreet look).

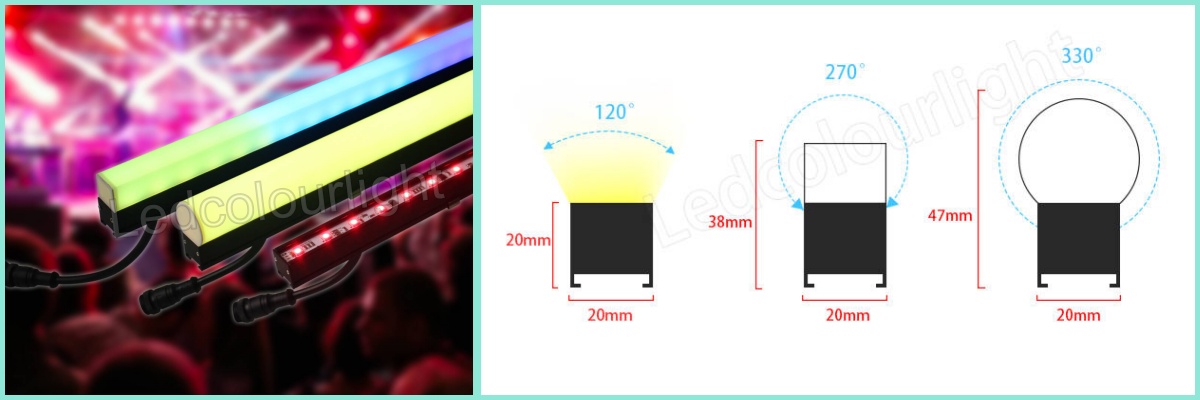

2. Diffuser Options & Beam Angles

Choose from 3 cover shapes — each with unique lighting characteristics:

Cover Type	Ideal For	Beam Angle	Available Colors
Flat	Direct & focused lighting	120°	Milky white / Black translucent
Square	Wider illumination	270°	Milky white / Black translucent
Arc	Maximum dispersion	330°	Milky white / Black translucent

3. Flexible Lengths & Connectivity

Standard Lengths – Standard lengths of 0.5 meter and 1 meter are available, providing flexibility in both compact and large-scale installations (custom lengths available upon request).

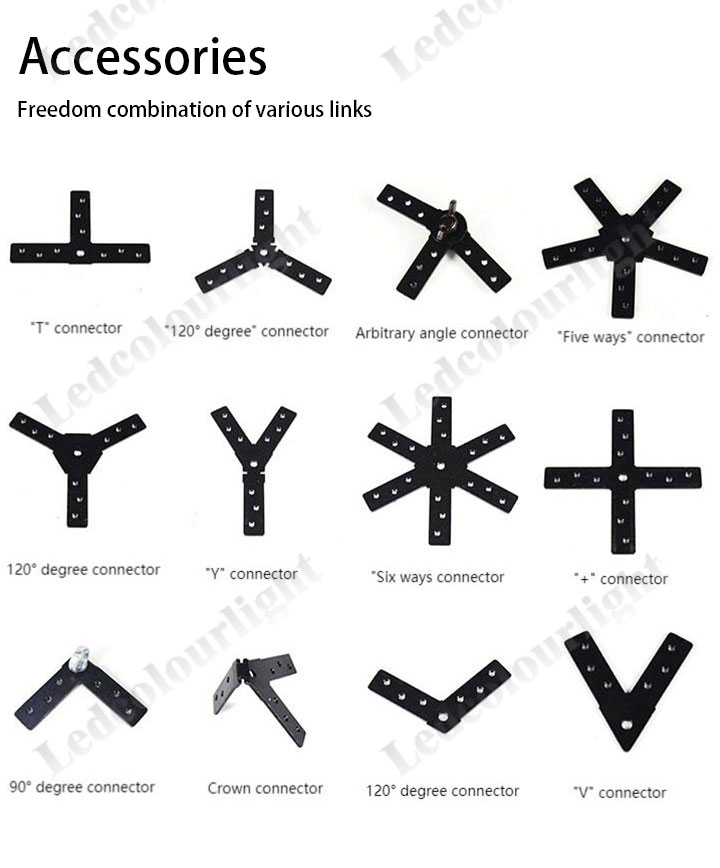

Multi-Angle Connectors – One of the standout features is its diverse connector system

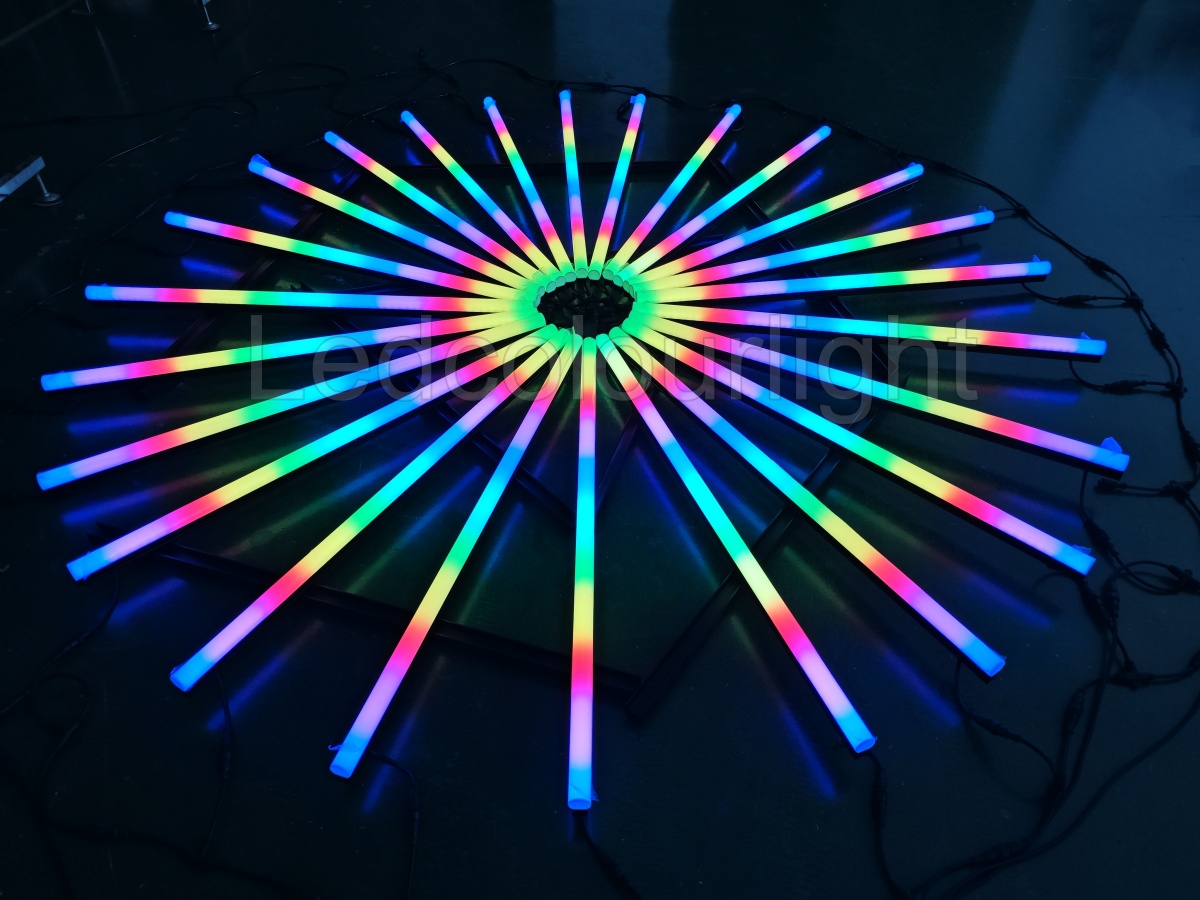

The series includes multi-angle connecting rods that allow effortless and secure linking of multiple RGB light tubes. With the ability to rotate and connect at various angles, the tubes can be arranged in countless custom 2D or 3D forms, such as:

Linear Arrangement – Straight wiring seamless stitching
90° Connecting Rod – Dynamic square designs for artistic installations.
Hexagonal Connector – Eye-catching displays for light art design.
3D Structures – Multi-level lighting for events or stage designs.

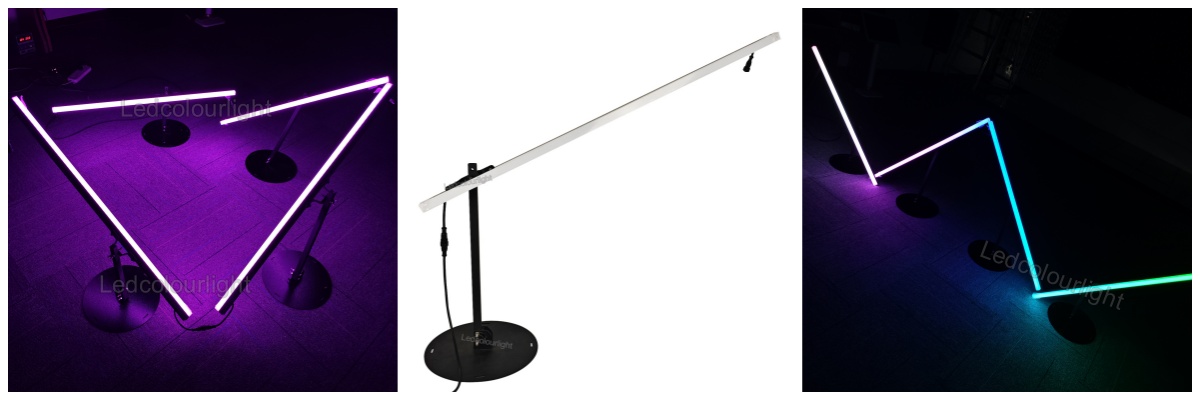

Adjustable Mounting Options: Beyond modular connections, users can opt for adjustable round-base mounting brackets that provide 0°–180° tilt adjustment. Enables pixel light tubes to stand on the ground at any angle.

These configurations not only serve aesthetic purposes but also make the product a favorite among lighting designers looking to push creative boundaries in stage, event, and architectural spaces.

4. Control Protocols & Lighting Effects

Pixel Light Bars support multiple professional-grade control systems, giving you full creative and technical freedom.

Compatible Protocols
Whether you're syncing lights to music, video, or sensor input, we offer flexible protocol options to suit any scale:

DMX512 — Industry-standard for live entertainment, fully addressable for large-scale shows
SPI (TTL) — Ideal for pixel-level animations and custom data control
DVI / Artnet — Available for advanced video-to-light mapping

Need something custom? We support protocol customization for OEM/ODM clients.

Vivid Color & Smooth Gradients
Each pixel light bar tube supports RGB or RGBW LED options, delivering a broad spectrum of color expression:

8-bit color depth for ultra-smooth fades and rich gradients
Pixel mapping for flowing animations, video effects, and reactive designs
Dynamic scenes — chase, breathing, flowing, pulsing, audio-reactive, etc.

From soft ambient glow to high-energy chases.

Smart Synchronization
Use with lighting consoles, media servers, or interactive triggers:

Sync to timecode, music beats, or visual input
Map effects by zone, group, or per-pixel
Control remotely via network or bluetooth systems

Whether it's a single installation or a massive festival grid — precision and creativity stay in perfect sync.

➣ Technical Specifications of 30x47mm Pixel Tube Light

Feature	Details
Model	30x47mm Pixel Light Bar
Material	Black aluminum base + PC diffuser
Diffuser Types	Flat (120°), Square (270°), Curved (330°)
Diffuser Colors	Milky white / Black
LED Type	High-efficiency SMD LEDs
LED Qty	60LEDs/M
Pixels	10pixels/M, 60pixels/M
CRI	>80
Voltage	12V / 24V DC (Low voltage for safety)
IP Rating	IP44 (Indoor) / IP65 (Outdoor upon request)
Lifespan	50,000+ hours
Control Options	DMX512, RGB, SPI, Art-Net, App Control

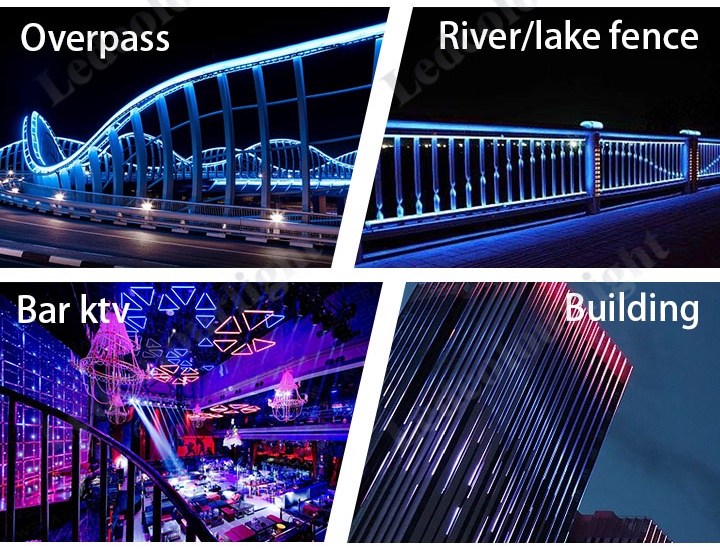

➣ Creative Applications of Pixel Light Tubes

Pixel Light Bar Tubes aren't just lighting products — they're tools for atmosphere, immersion, and identity. Designed for seamless integration and limitless creativity, here's how they shine across different environments:

Stage Lighting Architecture- Modular Framing for Performance Spaces

Pixel Light Bars can be interconnected to build dynamic light cages, angled backgrounds, or floating geometric structures. With programmable color and motion control, they respond to music and performance, enhancing visual rhythm and spatial depth.

Perfect for concerts, dance shows, and immersive theatrical productions.

Bar & Lounge Ambience- Soft Atmosphere Meets Sharp Design

Whether used as backbar highlights, under-counter glow, or ceiling sculptures, these RGB light tubes add modern, moody character to nightlife spaces. Choose black translucent covers for invisible by day, vibrant by night effects.

Creates a sophisticated, ever-changing atmosphere in clubs, lounges, and rooftop bars.

Music Festival Light Lines- Defining Spaces with Linear Brilliance

Pixel Light Bars outline stage perimeters, LED totems, or audience tunnels at outdoor music festivals. With their modular connectors and wide beam angles, they deliver dramatic silhouette lighting, motion effects, or beat-synced pulses.

Ideal for stage designers looking to create identity and energy across large grounds.

Night Park Installations- Sculptural Light in Outdoor Landscapes

From linear paths to artful treescapes, Pixel Light Bars illuminate public parks with programmable, low-power ambient lighting. Mounted on trees, benches, or abstract forms, they invite interaction and storytelling in night landscapes.

A favorite for urban designers and city beautification projects.

Product Launches & Tech Exhibits- Framing Innovation with Light

Create high-tech, futuristic vibes in exhibitions and launch events. The RGB LED pixel tube lights can form glowing frames, interactive stages, or responsive product pedestals. Sync with video walls or trigger effects on entry.

Because first impressions matter — especially in the spotlight.

About Ledcolourlight

With over a decade of expertise in LED pixel lighting, we are a leading manufacturer specializing in innovative, high-performance lighting solutions. Our mission is to provide customizable, creative LEDs that meet the evolving needs of architects, designers, and businesses worldwide.

Our Strengths:

OEM/ODM Services – Tailored lighting solutions for your project.
Strict Quality Control – Rigorous testing for durability & performance.
Fast Production & Delivery – Efficient logistics for global clients.
24/7 Customer Support – Expert assistance from concept to installation.

Contact us today for product specifications, sample kits, or custom development.

Website: [//www.ledcolorplayer.com/] [//www.ledcolourlight.com/]
Email: [info@ledcolourlight.com]
Phone: [+86 158 1374 3157]
Factory: [3F, Building 2, Hejing Industrial Park, Heping Community Fuyong Town, Baoan District, Shenzhen, 518000, P.R.China]

Ledcolourlight — Shaping Light. Shaping Experience.
