64mm Pixel DMX DJ Lights Addressable LED

LCL-RGB-PL64M

Delivery:

EXW

minimum order:

5

Country of Origin:

Shenzhen

Addressable LED DJ pixel light comes in an aluminum black housing. Built-in one 3W LED with high brightness in these DMX DJ lights. Standard DMX512 signal, DMX starting channel is manually set by an external device, and the signal is transmitted over long distances.
Energy saving, low maintenance cost, and long service life. Excellent waterproof performance.

Quantity:

Contact Now

Add to Cart

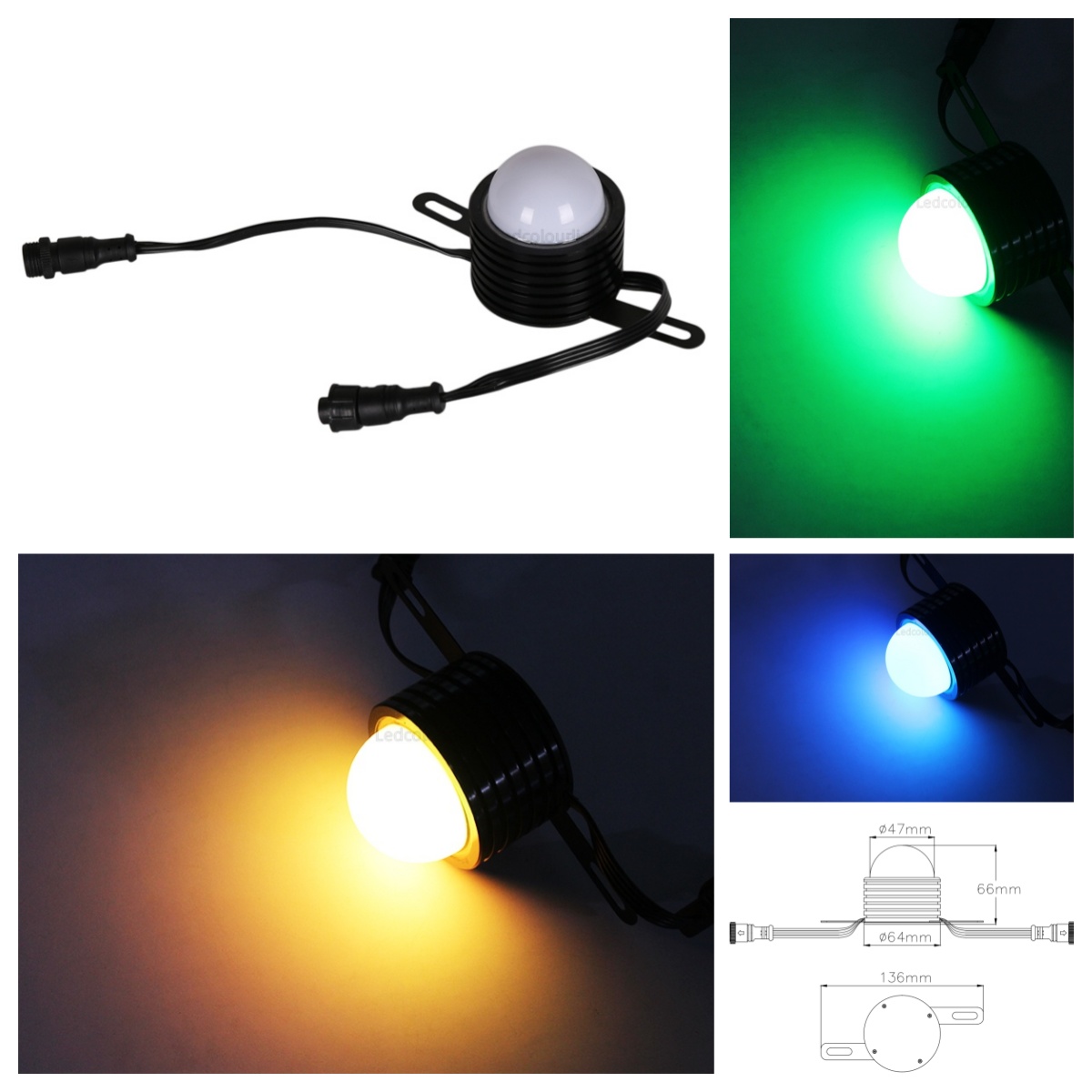

64mm Pixel DMX DJ Lights Addressable LED

Description for 64mm DJ Pixel Light:

The lamp body of DJ pixel light is made of aluminum, oxidized black. Beautiful appearance, high quality product. The addressable LED DJ pixel light uses Epistar lamp beads, which have high brightness, stable performance, small light attenuation and high color rendering index. One 3W RGB LEDs as the light source, DC24V working voltage. DMX512 control, it can work with any DMX LED controller.

DMX DJ Lights Features:

Diameter: 64mm
Aluminum material, black housing
There are two mounting holes for easy installation
DMX signal cable from the side of the shell, customized length
Standard DMX control, addressable, RGB full-color
IP65 rainproof can be safely used for outdoor facade installation in shopping malls, banks, brides, and hotels
Manually set the starting channel via an external device

Specification for 64mm Pixel DMX DJ Lights:

Size	*H66mm D64mm**
LED Qty	1 * 3W High-power LEDs
Pixel	1 pixel
Color	■■■ RGB
DMX Channel	3 CHs
Voltage	DC24V
Power	3W
Emitting Angle	120-degree
Starting Channel	Manually / Automatically
Working Temperature	-20~50℃
IP Rating	IP65 / IP67

↵

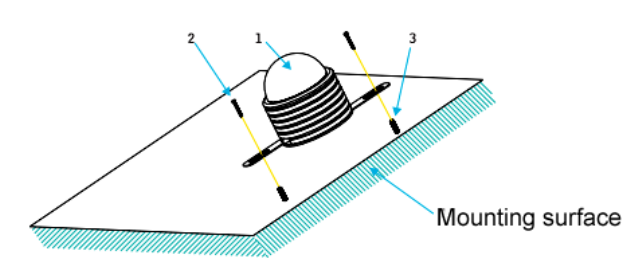

How to install those 64mm Pixel DMX DJ Lights? And how it works?

Secure the pixel to the wall or ceiling using screws with 29mm length expansion bolts.

1. 64mm DJ pixel light

2. M3*25mm Screw

3. Expansion bolt (29mm long)

Please set up the starting channel for pixel lights before installation. Each pixel light has a 4-pin DMX input and output signal cable, connect them after installation. These chains are then connected with a DMX LED controller and AC-DC24V switching power supply. We have a simple LED controller with some lighting modes, or you can create the program yourself via lighting software, such as Chinese LED Studio or Madrix, Madmapper, Resolume, etc.
