80mm DMX 24V RGBW LED Pixel Light

LCL-RGB-PL80M

Delivery:

EXW

minimum order:

5

The 80mm RGBW LED Pixel Light is made of high-quality aluminum and PC honeycomb top cover. The light source uses a 3W high-power lamp bead with high brightness. There is also a diameter of 50mm for you to choose from. Standard DMX512 protocol, good reception of DMX LED controller signals, excellent performance. RGB, RGBW, or single white light emission color. The 80mm Pixel Light will be a good solution for your event, whether it is for architectural decoration, or decoration for stages, bars, clubs, or any other entertainment purposes.

Quantity:

Contact Now

Add to Cart

80mm DMX 24V RGBW LED Pixel Light

80mm Pixel Light Info:

The 80mm DMX RGBW pixel light is an addressable pixel LED for which you can set the starting channel via an external device. The pixel light can be chained into strings of up to 40 dots without voltage drop. PC honeycomb diffuser and aluminum lamp body. Each 24v RGBW LED pixel light is equipped with a DMX input and output signal cable, the length can be customized and the connection is easy. High power design, super bright illumination.

Features of 80mm Pixel Light:

Diameter: 80mm, available in 50mm
Alunumin lamp body and PC honeycomb diffuser
3W lamp beads, DC24V working voltage
DMX512 control, addressable and RGB full color
4-pin waterproof cable connectors from the bottom or side of lamp body
IP65 protection
Can withstand all weather conditions

Specifications for RGBW LED Pixel Light:

Size	Φ50mm	*Φ80mmH46mm**
LED Qty	*1 3W high-power lamp bead**
Pixel	1 pixel
Color	■■■ RGB / ■■■■ RGBW
DMX Channels	3 or 4 CHs
Voltage	DC24V
Power	3W
Emitting Angle	120-degree
Starting Channel	Manually set via a device / Automatically generated after connecting
Working Temperature	-20~50℃
IP Rating	IP65
Customization	The size, power, or diffuser can custom

How to install this kind of RGBW LED Pixel Light for my nightclub? And how it works?

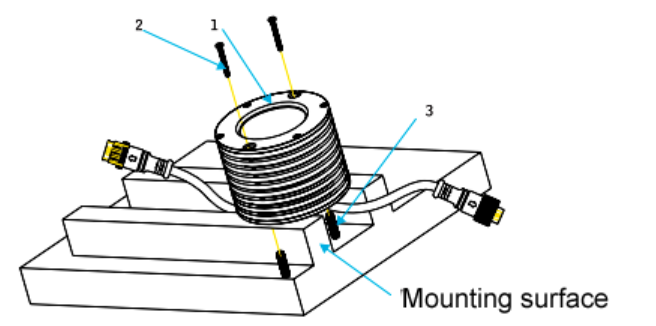

Secure the pixel to the wall or ceiling using screws with 29mm length expansion bolts.

1---80mm pixel light
2---M3*25mm Screws
3---Expansion Bolts (29mm length)

Make sure you have a starting channel set up for each pixel light you want to use and label them for better identification. If you have time, it would be nice to test out the functionality before installing. They are then mounted securely on the nightclub ceiling and connected. Use a DMX LED controller and AC-DC24V switching power supply to run them. You can use the built-in lighting modes in the controller or program it yourself. If you have any interest or questions about this 80mm pixel light, you are warmly welcome to contact us at any time.
