80mm 2m Standing Tube Lights for Professional Lighting Design
2025-08-21
Create Stunning Visuals with Programmable LED Standing Tube Lights
When it comes to large-scale outdoor lighting projects—whether for winter illumination around lakes, holiday parks, or immersive event spaces—lighting designers demand fixtures that are durable, easy to install, weather-resistant, and programmable. One of the most versatile products in this category is the 80mm diameter, 2-meter LED standing tube light. This article introduces the product in detail, highlights a real-world case study, addresses frequently asked questions, and explains why this type of standing light tube has become a favorite for event planners and lighting professionals worldwide.

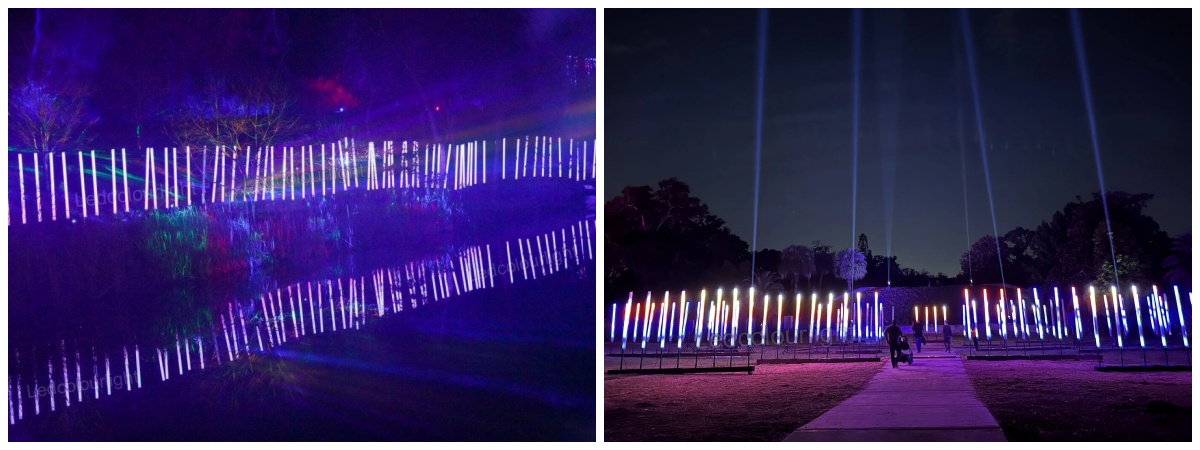

Case Study 1: Winter Lighting Installation in the U.S.
During a winter festival in the United States, a park project required 200 pieces of 2-meter LED standing tube lights to be installed around a lakeside walking path.
⚝ The Challenge: A prestigious winter festival in the southern United States wanted to create a magical 'Path of Lights' around a lake. The primary challenges were extreme sub-zero temperatures, potential moisture from snow and ice, and the need for a setup that could withstand public interaction without constant maintenance.
⚝ Cold Resistance & Waterproofing: The PC tube and IP65-rated cable connectors are designed to perform flawlessly in harsh winter conditions, preventing moisture ingress and material brittleness.
⚝ Installation: The stands were securely fixed around the lake's perimeter using the base's mounting holes. The lights were then effortlessly daisy-chained together using the waterproof connectors. The robust design required no protective boxes or extra sealing, simplifying the install.
⚝ The Result: The festival achieved a breathtaking, continuous ribbon of light that reflected off the icy lake. The reliable performance throughout the entire season, despite heavy snow and cold, underscored the product's ruggedness, making it a cornerstone for their annual event.
⚝ The Challenge: A prestigious winter festival in the southern United States wanted to create a magical 'Path of Lights' around a lake. The primary challenges were extreme sub-zero temperatures, potential moisture from snow and ice, and the need for a setup that could withstand public interaction without constant maintenance.
⚝ Cold Resistance & Waterproofing: The PC tube and IP65-rated cable connectors are designed to perform flawlessly in harsh winter conditions, preventing moisture ingress and material brittleness.
⚝ Installation: The stands were securely fixed around the lake's perimeter using the base's mounting holes. The lights were then effortlessly daisy-chained together using the waterproof connectors. The robust design required no protective boxes or extra sealing, simplifying the install.
⚝ The Result: The festival achieved a breathtaking, continuous ribbon of light that reflected off the icy lake. The reliable performance throughout the entire season, despite heavy snow and cold, underscored the product's ruggedness, making it a cornerstone for their annual event.
Case Study 2: "Kinetic Light Path" for a Holiday Park
The DMX tube lights were grouped in sets of eight and staggered in layout, creating a mesmerizing "wave" effect as visitors walked by.
⚝ The Challenge: To create a dynamic and immersive environment that would enhance evening safety, draw visitors, and establish a modern landmark. The key objective was to inject a sense of movement and rhythmic energy into the space, making the pathway itself an interactive experience.
⚝ Dynamic Staggered Layout: Instead of a static, symmetrical layout, eight dmx tube lights were installed in a staggered formation on either side of the pathway. This created immediate visual interest even when static. Critically, these eight dmx led tubes were programmed not as one monolithic block, but as multiple independent segments within the control software.
⚝ Advanced Programming for Motion: Using the 16-port Art-Net controller and Resolume Arena software (chosen for its powerful pixel-mapping and media server capabilities), we engineered sophisticated dynamic sequences:
- Wave & Flow Effects: We programmed dmx tube light to travel seamlessly down the path, with light "washing" from one dmx led tube to the next in a continuous wave, creating a powerful guiding effect and a palpable sense of motion.
- Rhythmic Breathing Patterns: The two sides of the path were programmed to alternate in a gentle, slow "breathing" sequence—fading up and down in opposition. This created a calm, living rhythm that transformed the pathway into a serene, captivating experience.
- Interactive Color Chasing: For special events, the system could shift into a vibrant mode where colors chased and bounced between the staggered lights, synchronized to music. This turned the park into an open-air gallery of light, engaging visitors directly with the environment.
⚝ Seamless Integration: The auto-addressing feature was invaluable. Despite the complex intended effects, the physical installation remained simple. The dmx tube lights were daisy-chained via their IP65 waterproof connectors, and the control system automatically recognized the entire pixel chain, allowing for quick and effortless programming without manual address setting.
⚝ The Result: The pathway was utterly transformed into a dynamic, intelligent canvas for light. The project demonstrated how robust, programmable hardware combined with creative design can elevate public infrastructure into interactive art.

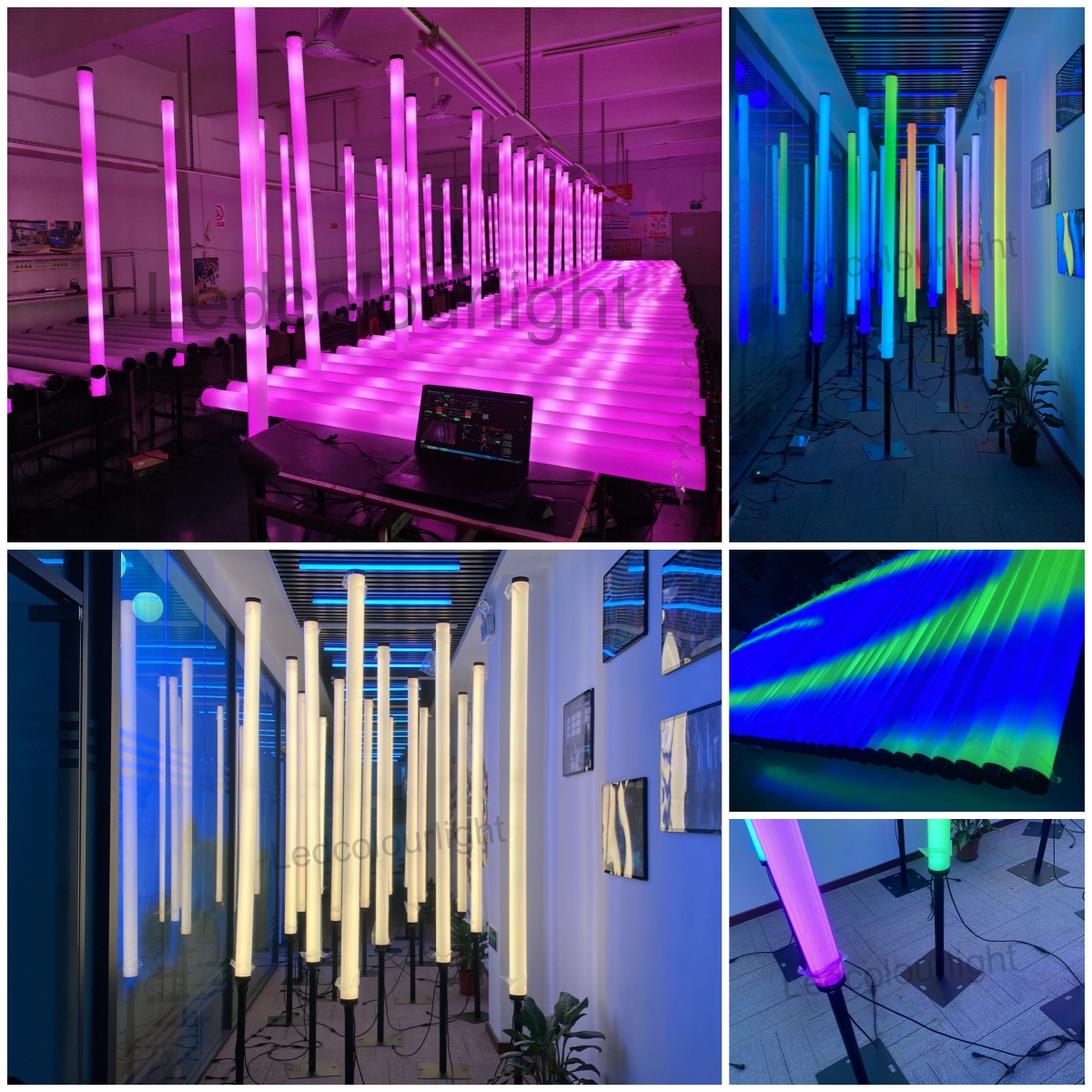

Product Overview for Floor Standing Tube Lights:
◎ Diameter: 80mm
◎ Length: 2 meters (customizable from 0.3m to 3m)
◎ Material: Milky white PC tube with black aluminum end caps
◎ Light Source: SMD5050 LEDs, 240 pcs per tube (120 per side, dual-sided emission)
◎ Pixels: 40 pixels per tube (20 pixels per side)
◎ Control Protocol: DMX512 (with automatic addressing; manual addressing also possible via address writer)
◎ Power Supply: DC24V, low-voltage safe operation
◎ Installation: Three M6 screws for stable standing installation on support bracket
◎ Cabling: Two 95cm 4-core waterproof cables for direct daisy-chain connection
◎ Accessories: Optional floor stand (30cm base, 60cm pole), black anti-rust finish
◎ Length: 2 meters (customizable from 0.3m to 3m)
◎ Material: Milky white PC tube with black aluminum end caps
◎ Light Source: SMD5050 LEDs, 240 pcs per tube (120 per side, dual-sided emission)
◎ Pixels: 40 pixels per tube (20 pixels per side)
◎ Control Protocol: DMX512 (with automatic addressing; manual addressing also possible via address writer)
◎ Power Supply: DC24V, low-voltage safe operation
◎ Installation: Three M6 screws for stable standing installation on support bracket
◎ Cabling: Two 95cm 4-core waterproof cables for direct daisy-chain connection
◎ Accessories: Optional floor stand (30cm base, 60cm pole), black anti-rust finish
Installation Options for LED Standing Tube Lights:
⚝ Standing Installation
Using the included 30cm square base with pre-drilled holes and a 60cm mounting pole, the dmx led tubes can be placed on flat ground, parks, or event spaces. In addition, it can be stood on the ground using a tripod, making it quick and easy to use for indoor event decoration.
⚝ Hanging Installation
With optional M6 eye bolts, the dmx led tube lights can also be suspended, ideal for creating a 3D matrix in indoor venues, stage performances, or exhibitions.
⚝ Wall Mounting Decoration
Fix the dmx tube lights onto walls for creative vertical or horizontal displays.
Using the included 30cm square base with pre-drilled holes and a 60cm mounting pole, the dmx led tubes can be placed on flat ground, parks, or event spaces. In addition, it can be stood on the ground using a tripod, making it quick and easy to use for indoor event decoration.
⚝ Hanging Installation
With optional M6 eye bolts, the dmx led tube lights can also be suspended, ideal for creating a 3D matrix in indoor venues, stage performances, or exhibitions.
⚝ Wall Mounting Decoration
Fix the dmx tube lights onto walls for creative vertical or horizontal displays.
Control and Programming for Standing Light Tube:
The standing tube lights use DMX512 protocol, making them compatible with mainstream lighting software such as:
Resolume, Madrix, ArKaos, ChamSys
Each dmx led tube is automatically addressed once connected, reducing setup time. For designers who prefer manual addressing, a DMX addressing device can also be used.
The standing tube lights can display:
Gradient transitions, Dynamic color chases, Wave effects, Pixel-mapped animations, Interactive scenes with audio/video synchronization
Resolume, Madrix, ArKaos, ChamSys
Each dmx led tube is automatically addressed once connected, reducing setup time. For designers who prefer manual addressing, a DMX addressing device can also be used.
The standing tube lights can display:
Gradient transitions, Dynamic color chases, Wave effects, Pixel-mapped animations, Interactive scenes with audio/video synchronization
Applications for Standing Light Tube:
- Winter festivals & Christmas parks
- Lakeside and riverside lighting
- Concerts and live stage performances
- Immersive art installations
- Theme parks and architectural lighting
Addressing Your Questions: Our Comprehensive FAQ
We believe in transparency. Here are answers to the most common questions we receive, categorized for clarity.
Customization & Specifications:
Q1: Can I get other lengths or diameters?
A: Absolutely! We offer full customization. Tubes can be produced from 0.3 meters to 3 meters in length. Diameters are also flexible, with popular options being 40mm, 50mm, 80mm, 100mm, and 150mm.
Q2: Can I get a brighter version?
A: Yes. For projects requiring higher luminosity, we offer a 144 LEDs/meter density or can utilize high-output 0.5W LEDs in our standard 120 LEDs/meter configuration.
Q3: Can you do RGBW instead of RGB?
A: Certainly. We can manufacture tubes with RGBW LED chips for a richer white light and expanded color palette, available with simple controller options instead of DMX.
Installation & Application:
Q4: Can these be hung instead of standing?
A: Yes. By using an M6 threaded eye nut (available as an accessory), they can be mounted overhead for hanging matrix installations.
Q5: Can I adjust the cable length between fixtures?
A: While the attached cables are fixed, we provide waterproof extension cables in various lengths (e.g., 1m, 3m, 5m) to offer maximum flexibility in spacing your installation.
Q6: Is a wireless version available?
A: This specific model is a wired DMX512 system for ultimate reliability. However, we do have a separate product line of wireless DMX RGBWA tubes (in 0.9m and 1.5m lengths) for applications where running cables is prohibitive.
Control & Protocol:
Q7: Can I control each tube individually?
A: Yes, that's the power of DMX512 and pixel mapping. By assigning each tube a unique starting address (done automatically or manually), you can individually control every single pixel on every tube using software like Resolume for breathtaking effects.
Q8: Do you support SPI protocol?
A: Yes, we can produce tubes with SPI control protocol for ultra-high refresh rates, typically used in specialized video-screen applications.
Quality & Compliance:
Q9: What about waterproofing and cold tolerance?
A: These tubes are rated IP65~IP67, meaning they are fully dust-tight and suitable for outdoor winter installations. The PC tube is UV-resistant, preventing yellowing under sunlight. They are tested to operate reliably in temperatures as low as -20°C to -30°C and as high as +50°C.
Q10: Do they have certifications?
Yes, the product is certified with CE and RoHS, meeting international safety and environmental standards.
Q1: Can I get other lengths or diameters?
A: Absolutely! We offer full customization. Tubes can be produced from 0.3 meters to 3 meters in length. Diameters are also flexible, with popular options being 40mm, 50mm, 80mm, 100mm, and 150mm.
Q2: Can I get a brighter version?
A: Yes. For projects requiring higher luminosity, we offer a 144 LEDs/meter density or can utilize high-output 0.5W LEDs in our standard 120 LEDs/meter configuration.
Q3: Can you do RGBW instead of RGB?
A: Certainly. We can manufacture tubes with RGBW LED chips for a richer white light and expanded color palette, available with simple controller options instead of DMX.
Installation & Application:
Q4: Can these be hung instead of standing?
A: Yes. By using an M6 threaded eye nut (available as an accessory), they can be mounted overhead for hanging matrix installations.
Q5: Can I adjust the cable length between fixtures?
A: While the attached cables are fixed, we provide waterproof extension cables in various lengths (e.g., 1m, 3m, 5m) to offer maximum flexibility in spacing your installation.
Q6: Is a wireless version available?
A: This specific model is a wired DMX512 system for ultimate reliability. However, we do have a separate product line of wireless DMX RGBWA tubes (in 0.9m and 1.5m lengths) for applications where running cables is prohibitive.
Control & Protocol:
Q7: Can I control each tube individually?
A: Yes, that's the power of DMX512 and pixel mapping. By assigning each tube a unique starting address (done automatically or manually), you can individually control every single pixel on every tube using software like Resolume for breathtaking effects.
Q8: Do you support SPI protocol?
A: Yes, we can produce tubes with SPI control protocol for ultra-high refresh rates, typically used in specialized video-screen applications.
Quality & Compliance:
Q9: What about waterproofing and cold tolerance?
A: These tubes are rated IP65~IP67, meaning they are fully dust-tight and suitable for outdoor winter installations. The PC tube is UV-resistant, preventing yellowing under sunlight. They are tested to operate reliably in temperatures as low as -20°C to -30°C and as high as +50°C.
Q10: Do they have certifications?
Yes, the product is certified with CE and RoHS, meeting international safety and environmental standards.
Q11: What is the production lead time?
200 pcs: 7–10 working days
>1000 pcs: 15~20 working days
All units undergo aging test, system test, and stand installation test before shipment.
All units undergo aging test, system test, and stand installation test before shipment.
A Commitment to Quality: Our Production Process
Quality isn't an afterthought; it's embedded in our production DNA.
SMD Mounting & Reflow Soldering: Automated machinery precisely places each SMD5050 LED onto the PCB board, which then undergoes controlled reflow soldering for perfect electrical connections.
Tube Fabrication: The LED light boards are housed inside the PC tube, which is then sealed with end caps using a proprietary process to achieve the IP65 rating.
Rigorous Testing: Every single tube undergoes a mandatory 24-hour aging test ("burn-in") at full power to identify and eliminate any infant mortality failures. Each is also tested for waterproofing, DMX signal integrity, and color consistency.
System Testing: A random sample from every batch is assembled with stands and controllers to simulate real-world conditions, ensuring everything works together perfectly before packaging.
Conclusion
The 80mm, 2m LED standing tube light is a reliable, customizable, and highly impactful fixture for outdoor parks, events, and creative installations. With its dual-sided RGB output, DMX512 compatibility, waterproof housing, and flexible installation options, it provides unmatched versatility for lighting designers.
Whether you are designing a winter festival around a frozen lake or creating a dynamic light show in a city park, this standing light tube will transform spaces into immersive, unforgettable experiences.
Whether you are designing a winter festival around a frozen lake or creating a dynamic light show in a city park, this standing light tube will transform spaces into immersive, unforgettable experiences.
Contact us today to discuss your specific project requirements and receive a tailored quotation.
