84LED DMX Digital LED Strip Lights - A Brighter Upgrade
2026-01-06
Introducing the New 84LED Digital LED Strip Lights: A Brighter Upgrade from the 60LED Version
In recent years, digital LED strip lights have become an essential lighting solution for architectural outlines, signage, stage effects, and decorative installations. As project requirements continue to rise—especially in brightness, uniformity, and visual quality—traditional LED strip configurations are sometimes no longer enough.
Based on extensive project feedback and real-world applications, we are introducing a new DMX512 5050 LED strip light with 84 LEDs and 12 pixels per meter, designed as an upgrade to the widely used 60LED, 10-pixel-per-meter version. This new digital LED strip light delivers higher brightness, denser pixel spacing, and noticeably improved visual continuity, while maintaining compatibility with professional DMX control systems.
Based on extensive project feedback and real-world applications, we are introducing a new DMX512 5050 LED strip light with 84 LEDs and 12 pixels per meter, designed as an upgrade to the widely used 60LED, 10-pixel-per-meter version. This new digital LED strip light delivers higher brightness, denser pixel spacing, and noticeably improved visual continuity, while maintaining compatibility with professional DMX control systems.
1. Why Upgrade from 60 LEDs to 84 LEDs per Meter?
The 60LED DMX digital LED strip lights (10 pixels per meter) have been a reliable solution for many years. It is cost-effective, stable, and suitable for a wide range of standard projects. However, as lighting designs become more refined, certain limitations have become apparent—particularly in applications that demand stronger output and smoother light lines.
The new 84LED 5050 LED strip lights were developed to address these demands. By increasing both LED density and pixel count it provides a significant step forward in performance without compromising installation flexibility or system stability.
The new 84LED 5050 LED strip lights were developed to address these demands. By increasing both LED density and pixel count it provides a significant step forward in performance without compromising installation flexibility or system stability.

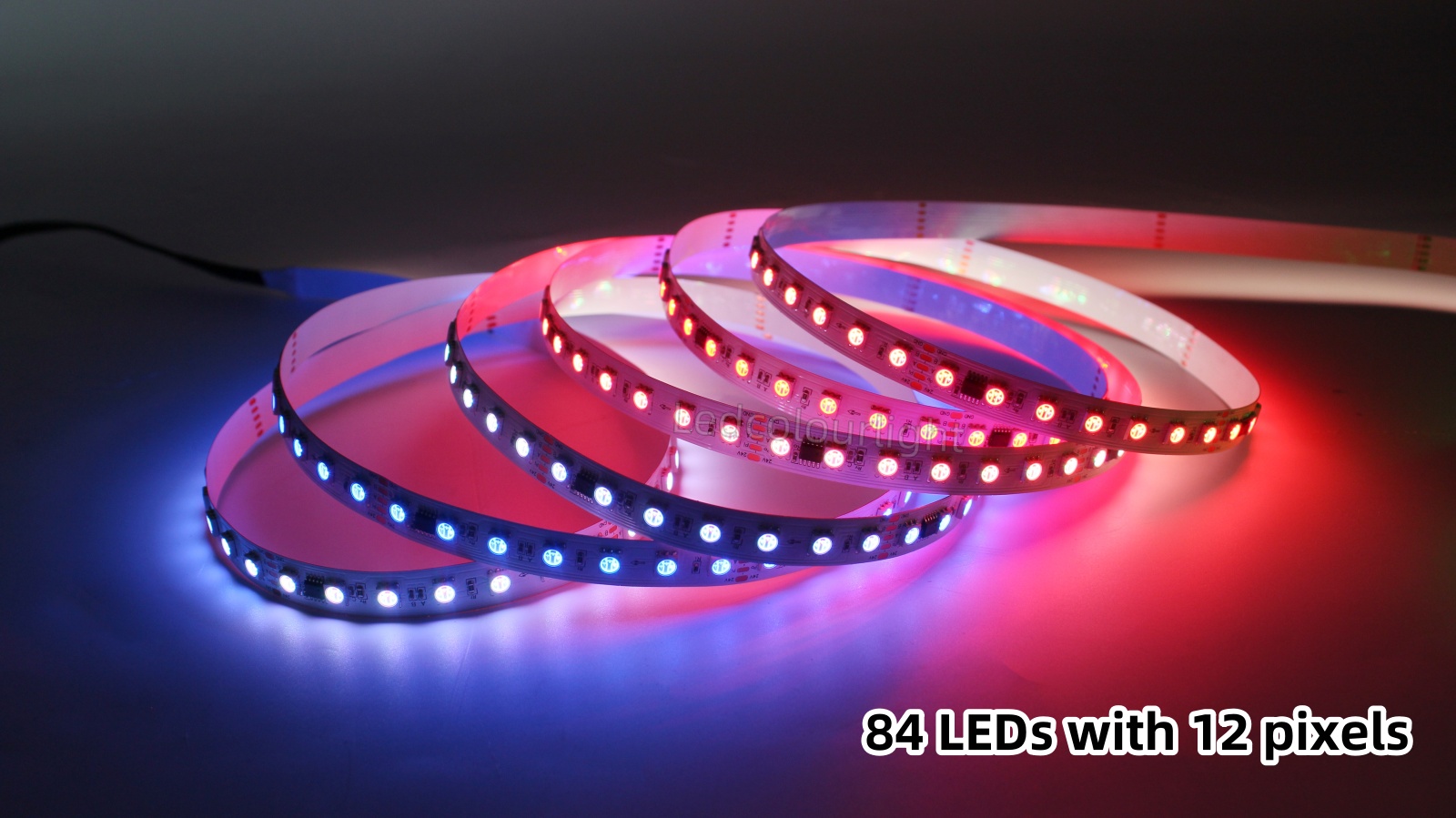

2. Key Specifications of the 84LED DMX Digital LED Strip Lights
The new strip is designed for professional-grade installations and long-term operation:
- LED density: 84 LEDs per meter
- Pixel configuration: 12 pixels per meter
- Cutting unit: 7 LEDs per cut (8cm)
- Voltage: DC24V
- Power consumption: 19.5W per meter
- PCB width: 12mm
- Control protocol: DMX512
- Emitting color: RGB
For comparison, the standard 60LED version features 6 LEDs per cut (10cm), which means the 84LED strip offers finer cutting resolution, giving designers more flexibility when dealing with complex shapes or shorter segments.

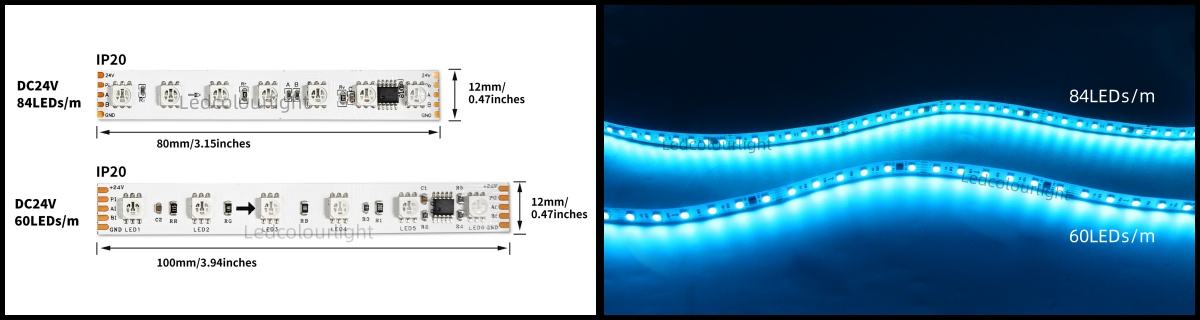

3. 84LED vs 60LED: A Practical Comparison
Rather than replacing the 60LED 5050 LED strip lights, the 84LED version is intended to expand design options. Each version serves a clear purpose depending on project priorities.
- Brightness Output
With a higher LED count and increased power per meter, the 84LED strip produces noticeably stronger light output. This is particularly beneficial for commercial and outdoor projects where brightness must compete with ambient lighting.
- Pixel Density and Visual Smoothness
The jump from 10 pixels to 12 pixels per meter may sound modest on paper, but visually it makes a clear difference. Light transitions appear smoother, and individual pixels are less noticeable, especially when viewed at close distances.
- Cutting Flexibility
- Brightness Output
With a higher LED count and increased power per meter, the 84LED strip produces noticeably stronger light output. This is particularly beneficial for commercial and outdoor projects where brightness must compete with ambient lighting.
- Pixel Density and Visual Smoothness
The jump from 10 pixels to 12 pixels per meter may sound modest on paper, but visually it makes a clear difference. Light transitions appear smoother, and individual pixels are less noticeable, especially when viewed at close distances.
- Cutting Flexibility
- 84LED strip: 7 LEDs per cut
- 60LED strip: 6 LEDs per cut
This finer cutting option allows more precise length adjustments, which is especially useful for custom installations, lettering, and curved structures.
- Cost and Application Balance
- Cost and Application Balance
- 60LED strip: Ideal for standard projects, decorative outlines, and budget-conscious designs
- 84LED strip: Recommended for projects where visual quality, brightness, and uniformity are key priorities
- Summary Table
| Feature | 84LED DMX Strip (New Version) | 60LED DMX Strip (Standard Version) |
|---|---|---|
| LED Density | 84 LEDs per meter | 60 LEDs per meter |
| Pixels per Meter | 12 pixels | 10 pixels |
| Cutting Unit | 7 LEDs per cut | 6 LEDs per cut |
| Voltage | DC24V | DC24V |
| Power Consumption | 19.5W per meter | 14.4W per meter |
| PCB Width | 12mm | 10mm / 12mm |
| Control Protocol | DMX512 | DMX512 |
| LED Type | 5050 LED strip lights | 5050 LED strip lights |
| Brightness | Higher output, suitable for demanding projects | Standard brightness |
| Visual Continuity | Smoother light line, less dotting | More visible point effect |
| Neon Lighting Performance | Excellent – minimal dark areas | Good for standard neon |
| Best For | High-end projects, neon signage, premium installations | General projects, budget-conscious designs |
| Typical Length | 5 meter LED strip lights (customizable) | 5 meter LED strip lights (customizable) |

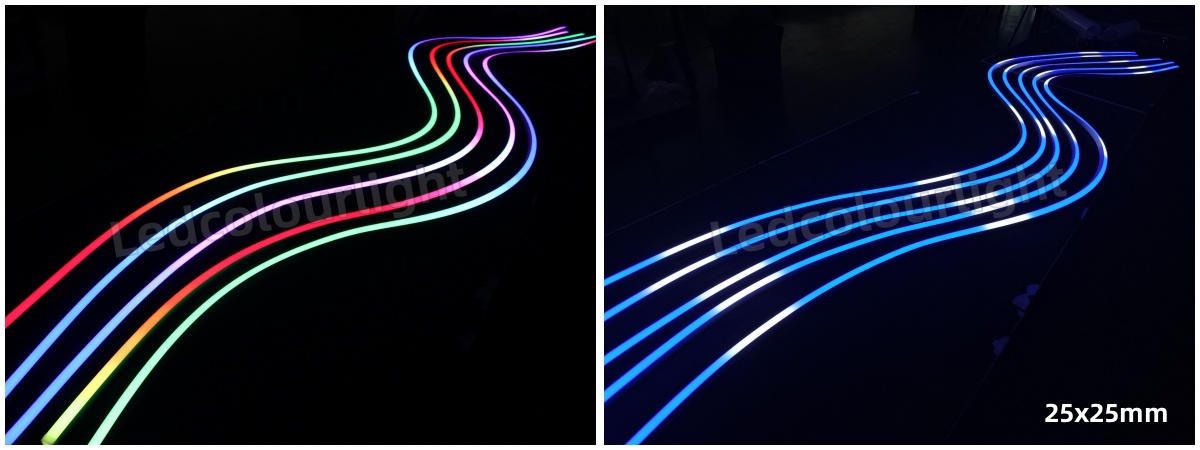

4. Advantages in Neon Lighting Applications
One area where the improvement of the 84LED digital LED strip lights becomes particularly obvious is in neon lighting.
Modern neon-style lighting—whether silicone neon tubes or rigid neon profiles—relies heavily on the LED strip inside. When LED spacing is too wide or brightness is insufficient, issues such as dark spots, uneven illumination, or visible dotting can occur.
Thanks to its higher density and output, the 84LED strip offers clear advantages:
- Minimal Dark Areas
With more LEDs and closer pixel spacing, light distribution inside neon diffusers is more even. In front-facing neon installations, this helps achieve a continuous, seamless glow with little to no dark zones.
- More "Real Neon" Appearance
The smoother light line produced by the 84LED strip more closely resembles traditional glass neon, making it especially suitable for high-end signage, logos, and architectural accents.
- Stronger Brightness for Commercial Environments
At 19.5W per meter, the strip provides sufficient brightness for bars, clubs, retail signage, and building facades—applications where standard LED strips may appear washed out.
Modern neon-style lighting—whether silicone neon tubes or rigid neon profiles—relies heavily on the LED strip inside. When LED spacing is too wide or brightness is insufficient, issues such as dark spots, uneven illumination, or visible dotting can occur.
Thanks to its higher density and output, the 84LED strip offers clear advantages:
- Minimal Dark Areas
With more LEDs and closer pixel spacing, light distribution inside neon diffusers is more even. In front-facing neon installations, this helps achieve a continuous, seamless glow with little to no dark zones.
- More "Real Neon" Appearance
The smoother light line produced by the 84LED strip more closely resembles traditional glass neon, making it especially suitable for high-end signage, logos, and architectural accents.
- Stronger Brightness for Commercial Environments
At 19.5W per meter, the strip provides sufficient brightness for bars, clubs, retail signage, and building facades—applications where standard LED strips may appear washed out.
5. Designed for Professional DMX Systems
Both the 84LED and 60LED versions are fully compatible with DMX512 control, making them suitable for synchronized lighting effects, dynamic animations, and integration with media servers or lighting consoles.
For larger installations, these strips can be configured in 5 meter LED strip lights sections, simplifying power distribution and installation planning. The use of DC24V also helps reduce voltage drop over longer runs, improving system stability.
In addition, the LED configuration is based on high-quality 5050 LED strip lights, ensuring consistent color output, reliable performance, and long service life.
For larger installations, these strips can be configured in 5 meter LED strip lights sections, simplifying power distribution and installation planning. The use of DC24V also helps reduce voltage drop over longer runs, improving system stability.
In addition, the LED configuration is based on high-quality 5050 LED strip lights, ensuring consistent color output, reliable performance, and long service life.
6. Choosing the Right Strip for Your Project
Selecting between 60LED and 84LED strips depends on your project's goals:
- Choose 60LED / 10 pixels per meter if:
- Choose 60LED / 10 pixels per meter if:
- Budget efficiency is a priority
- The installation distance is relatively long
- The lighting effect does not require extreme uniformity
- Choose 84LED / 12 pixels per meter if:
- High brightness is required
- The project involves neon lighting or close viewing distances
- You want smoother light lines and premium visual quality
A Step Forward in Digital LED Strip Lighting
The introduction of the 84LED DMX512 5050 LED strip lights reflects a growing demand for higher-quality digital LED strip lights in modern lighting projects. By offering improved brightness, finer pixel control, and better performance in neon applications, this new version gives designers and integrators more creative freedom without sacrificing reliability.
While the 60LED 5 meter LED strip lights remain a proven and dependable choice, the 84LED version opens the door to more refined and visually impressive results—especially where lighting quality truly matters.
While the 60LED 5 meter LED strip lights remain a proven and dependable choice, the 84LED version opens the door to more refined and visually impressive results—especially where lighting quality truly matters.
If you would like to learn more about Ledcolourlight's 84LED DMX digital LED strip lights, feel free to contact us.
Our team is always happy to provide technical details, samples, or customized solutions based on your project needs.
