Customizable Square LED Pixel Lights for Dynamic Displays
2025-08-01
Innovative Square LED Lights for LED Pixel Curtain & 3D Matrix
Ledcolourlight 29×15×9.7mm square LED lights for LED pixel curtain represent the cutting edge in programmable lighting solutions, combining advanced optical engineering with unparalleled customization options. They are engineered for high-impact lighting displays, offering dual-side illumination, flexible control protocols, and fully customizable configurations. Whether it's dynamic stage background pixel curtains, immersive LED tunnels, responsive 3D matrix, or architectural media facades, this product delivers vibrant colors, smooth animations, and reliable performance.
Pixel Curtain LED Lights Product Overview
| Feature | Specification |
| Size | 29×15×9.7mm |
| Housing Material | Transparent PC (UV resistant) |
| LED Type | 2x SMD3535 RGB / RGBW |
| Voltage | DC12V |
| Control Protocol | DMX512 / SPI (UCS1903, WS2811, etc.) |
| Pixel Control | Individually addressable |
| Mounting | String-based, customizable pitch and length |
| Wire Type | Transparent or black cable |
| Waterproofing | Indoor non-waterproof / Outdoor glue sealed |
| Connectors | 3-pin / 4-pin male-female or T-type split |
Key Product Features:

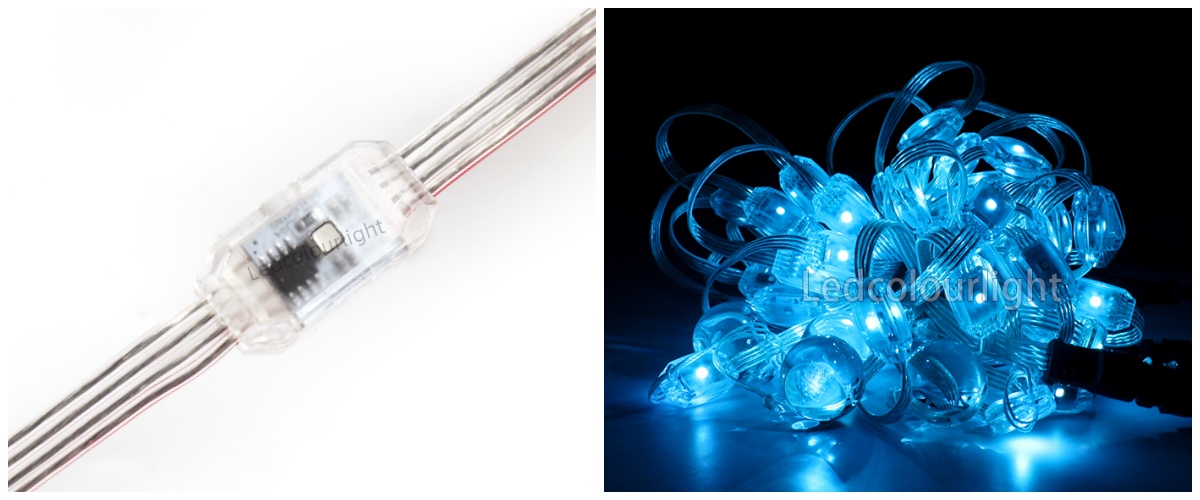

1. Compact & Bright Dual-Side Illumination
Dimensions: 29mm (L) × 15mm (W) × 9.7mm (H)
Dimensions: 29mm (L) × 15mm (W) × 9.7mm (H)
Material: High-transparency PC shell for optimal light diffusion, and impact resistance suitable for long-term installations.
LED Configuration: Dual SMD3535 LEDs (2 per unit) mounted on a 360° visible PC transparent housing, offering high brightness and vivid color output. Whether you're aiming for subtle gradients or vibrant video playback, the lights provide excellent color mixing and performance. The double-sided lighting design allows for visibility from both directions—ideal for free-hanging pixel curtain displays or multidimensional 3D structures.
Power Supply: 12V DC – energy-efficient and stable for long-term operation.
2. Fully Customizable LED Pixel Curtain Strings – Tailored to Your Project
Adjustable Spacing: Center distance between LEDs can be customized (e.g., 10cm, 15cm, etc.).
Adjustable Spacing: Center distance between LEDs can be customized (e.g., 10cm, 15cm, etc.).
Custom Lengths: LED strings can be tailored to project needs (e.g., 20 LEDs/string, 100 LEDs/string).
Wiring Options: Transparent crystal wire (for seamless blending into installations). Black wire (for discreet setups).
Waterproof connectors: 3-pin or 4-pin waterproof male / female connectors (for direct daisy-chain connection); or 4pin male input connector with 4-pin T-type connectors (for grid-style layouts like LED matrix or pixel LED curtain walls). This gives engineers and integrators a clean, plug-and-play solution that reduces labor during installation.
3. Advanced Control Options – DMX512 & SPI
This LED pixel series is available in both DMX512 and SPI (UCS1903, WS2811, etc.) versions:
- DMX512 Protocol: Ideal for synchronous and professional lighting setups (up to 512 channels per universe).
- SPI Protocol: Economical, efficient, and ideal for high-density displays.
- Individual Pixel Control: Each dot is independently controllable, enabling dynamic effects, pixel-level animations, text rendering, and video playback.
- Color Options: Choose between RGB (16.7M colors) or RGBW (enhanced white blending).
This LED pixel series is available in both DMX512 and SPI (UCS1903, WS2811, etc.) versions:
- DMX512 Protocol: Ideal for synchronous and professional lighting setups (up to 512 channels per universe).
- SPI Protocol: Economical, efficient, and ideal for high-density displays.
- Individual Pixel Control: Each dot is independently controllable, enabling dynamic effects, pixel-level animations, text rendering, and video playback.
- Color Options: Choose between RGB (16.7M colors) or RGBW (enhanced white blending).
- Control Software Integration and Controllers: Native support for Madrix, Resolume, TouchDesigner. Compatible with leading controllers such as Artnet, Madrix, K8000C, T1000S, etc.
4. Indoor & Outdoor Versions – Waterproof Options Available
We offer both non-waterproof indoor versions and fully sealed waterproof versions, using glue potting encapsulation for long-term outdoor exposure.
We offer both non-waterproof indoor versions and fully sealed waterproof versions, using glue potting encapsulation for long-term outdoor exposure.

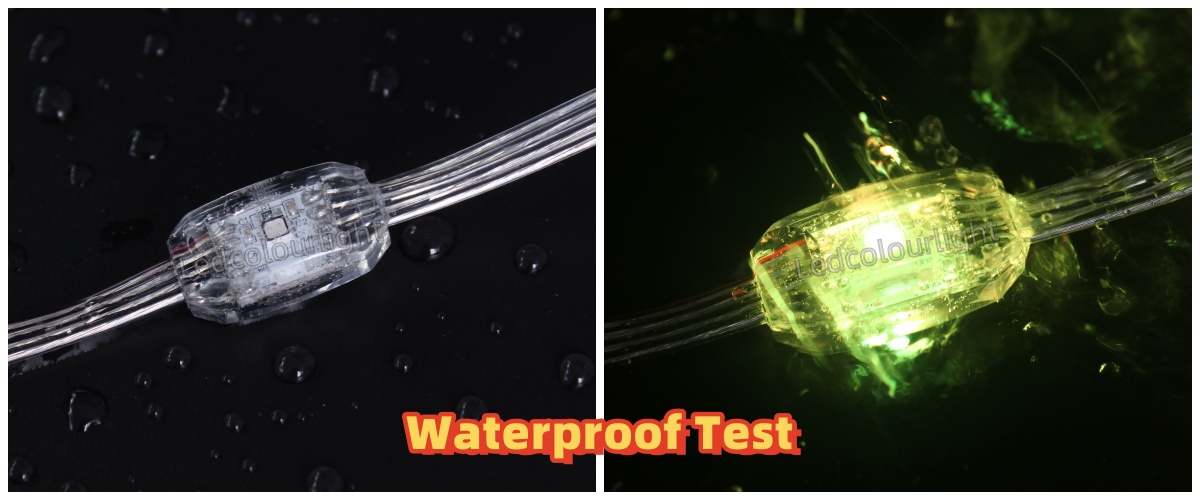

A closer look at our waterproof version shows advanced sealing around each pixel and connector, offering:
- IP65–IP67 protection
- Anti-corrosion insulation
- Stable performance in humidity, rain, and dust environments
Application Examples from Our Workshop
We've implemented multiple installation scenarios in our workshop to demonstrate the real-world performance and flexibility of this product:

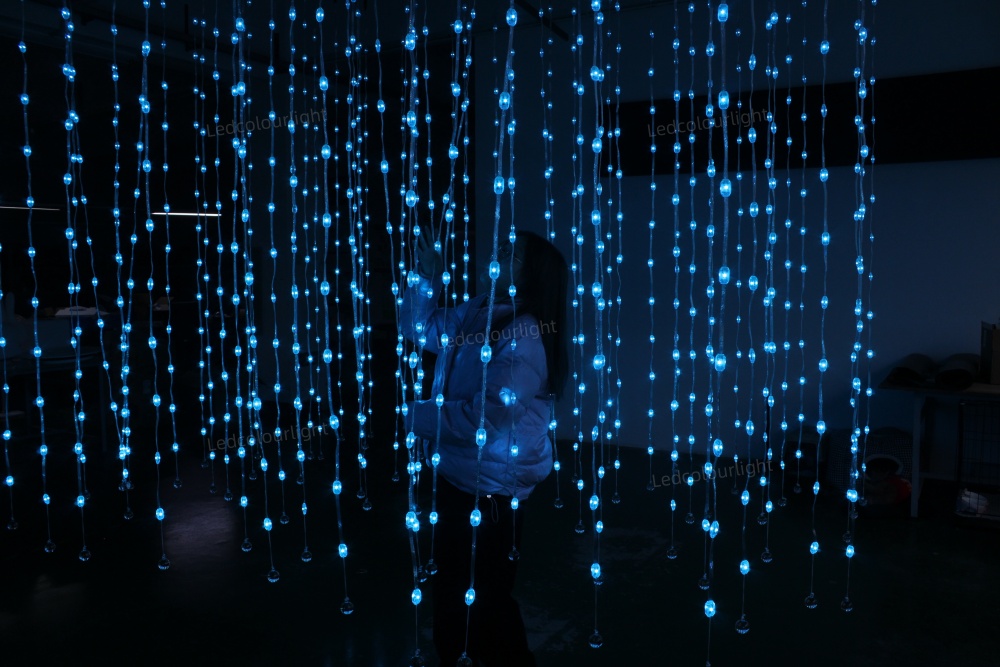

1. 3D Matrix Setup – 7 Rows × 10 Columns
Specifications: DMX512 control via 16 × Art-Net nodes, RGB emitting color, 15cm pixel pitch
Specifications: DMX512 control via 16 × Art-Net nodes, RGB emitting color, 15cm pixel pitch
Units: 20 lights per string, connected via T-cable connector
Application: Indoor interactive installation, art galleries, brand exhibitions. Each pixel is individually addressable, enabling real-time animations or text scrolling.
Configuration: 7 strings form vertical rows, each with 20 lights. Horizontal alignment creates a 7×10 grid that can display text, waves, or real-time audio-reactive visuals.

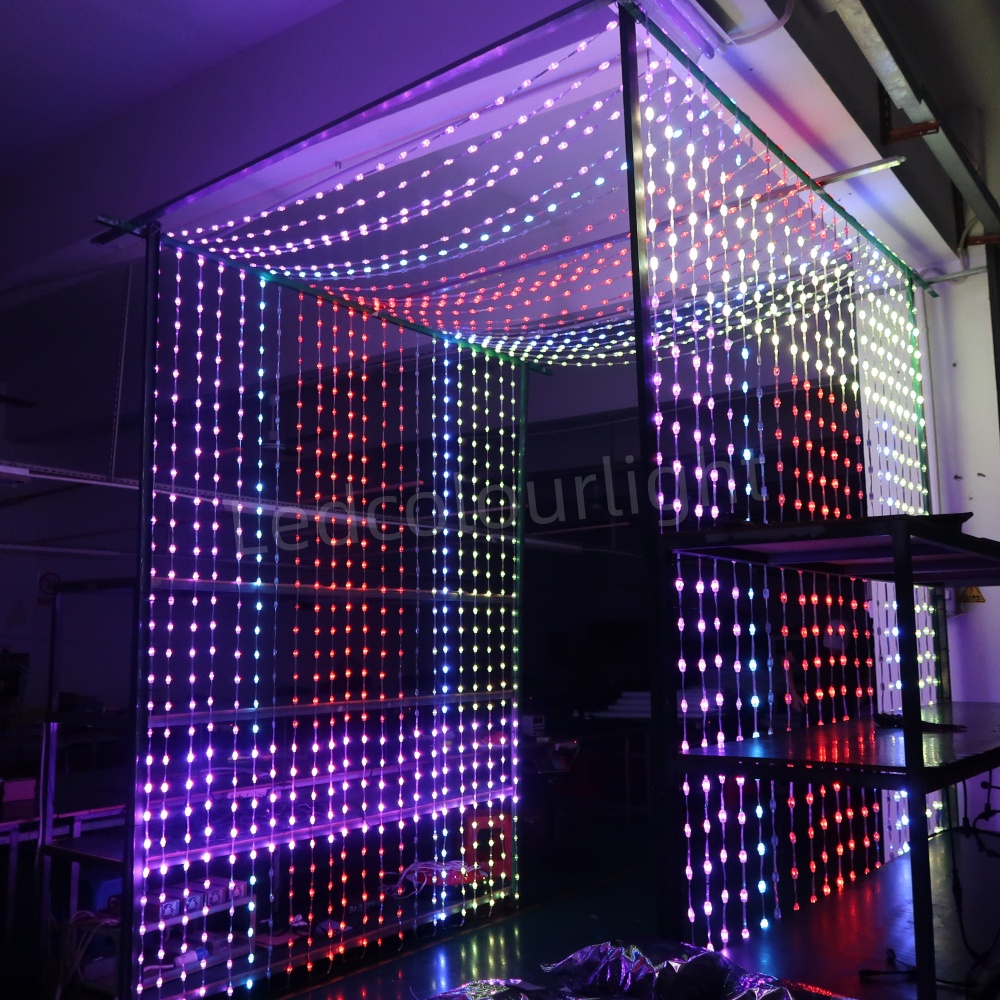

2. Immersive LED Tunnel Installation – 22 Strings × 10 Meters
Specifications: SPI control via 807SA LED controller, RGB emitting color, 10cm center spacing
Specifications: SPI control via 807SA LED controller, RGB emitting color, 10cm center spacing
Units: 100 lights, 10 meters per string, each string comes with 4-pin waterproof male and female connectors for direct daisy-chain connection
Description: 22 strings hang to form an LED tunnel, creating an immersive passageway of animated light. Used in theme parks, museums, and seasonal displays, this format creates dynamic effects like rain, star fields, or running patterns.
Why Choose Ledcolourlight's LED Pixel Curtain Lights?
✅ High Customization – Adjust spacing, length, color, and control protocol.
✅ Durable & Versatile – Waterproof options for outdoor use.
✅ Professional-Grade Control – Supports DMX512 or SPI for complex animations.
✅ Easy Installation – Multiple wiring and connector options.
✅ Durable & Versatile – Waterproof options for outdoor use.
✅ Professional-Grade Control – Supports DMX512 or SPI for complex animations.
✅ Easy Installation – Multiple wiring and connector options.
Ideal Applications for Innovative Square LED Lights:
✔ Stage & Event Lighting (concerts, weddings, exhibitions)
✔ Architectural Lighting (facades, bridges, tunnels)
✔ Retail & Advertising (window displays, interactive signage)
✔ Art & Interactive Installations (museums, public spaces)
✔ Architectural Lighting (facades, bridges, tunnels)
✔ Retail & Advertising (window displays, interactive signage)
✔ Art & Interactive Installations (museums, public spaces)
Why Choose LEDCOLOURLIGHT as Your LED Pixel Light Supplier?
✅ Professional Manufacturing Experience – Years of engineering LED control systems for entertainment, architecture, and interactive installations.
✅ High Quality Assurance – 100% aging test, full functional test, visual inspection before shipment.
✅ Custom OEM/ODM Support – Tailor-made solutions, private labeling, and hardware modification available.
✅ Engineering Guidance – We provide diagrams, installation tutorials, and remote technical support.
✅ Global Delivery – Fast shipping by DHL/FedEx, export-friendly packaging, and experience with over 60 countries.
✅ High Quality Assurance – 100% aging test, full functional test, visual inspection before shipment.
✅ Custom OEM/ODM Support – Tailor-made solutions, private labeling, and hardware modification available.
✅ Engineering Guidance – We provide diagrams, installation tutorials, and remote technical support.
✅ Global Delivery – Fast shipping by DHL/FedEx, export-friendly packaging, and experience with over 60 countries.
Your Ideal Solution for Pixel-Based Light Installations
This L29×W15×H9.7mm dual-sided LED pixel is not just another decorative light—it's a project-oriented, performance-driven module ready for creative challenges. From LED pixel curtains to 3D tunnels and matrix walls, it unlocks your vision with reliable components and full customization.
This L29×W15×H9.7mm dual-sided LED pixel is not just another decorative light—it's a project-oriented, performance-driven module ready for creative challenges. From LED pixel curtains to 3D tunnels and matrix walls, it unlocks your vision with reliable components and full customization.
Ready to light up your next project? Contact us now for samples, wiring support, or volume pricing.
