Customized 50mm 3D LED Ball String with 12 LEDs

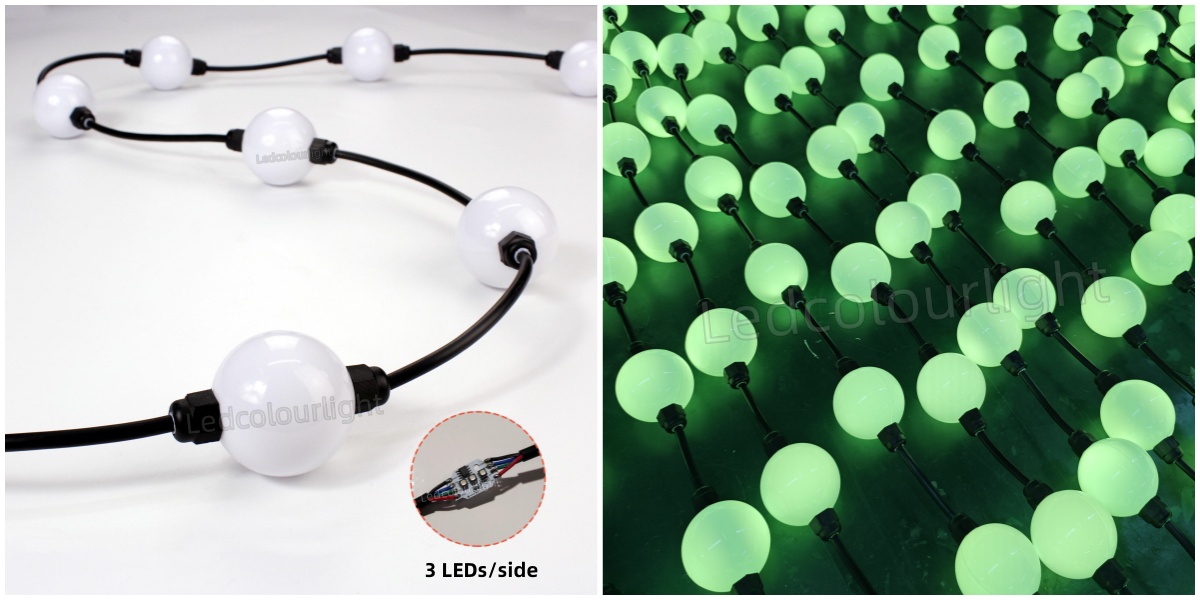

Standard 50mm LED Pixel Ball Light Configuration

The standard 50mm RGB LED ball string uses a 6-LED structure, with three LEDs installed on each side of the sphere. This arrangement provides balanced light output and basic color-mixing capability while keeping power consumption low.

Key characteristics of the standard configuration include:

• Ball diameter: 50mm
• Light source: 6 LEDs per ball (single-sided 3 LEDs)
• Power consumption: approximately 1.5W per ball
• Operating voltage: DC24V
• Housing: milky PC diffuser
• Assembly: two hemispheres secured by two black threaded caps

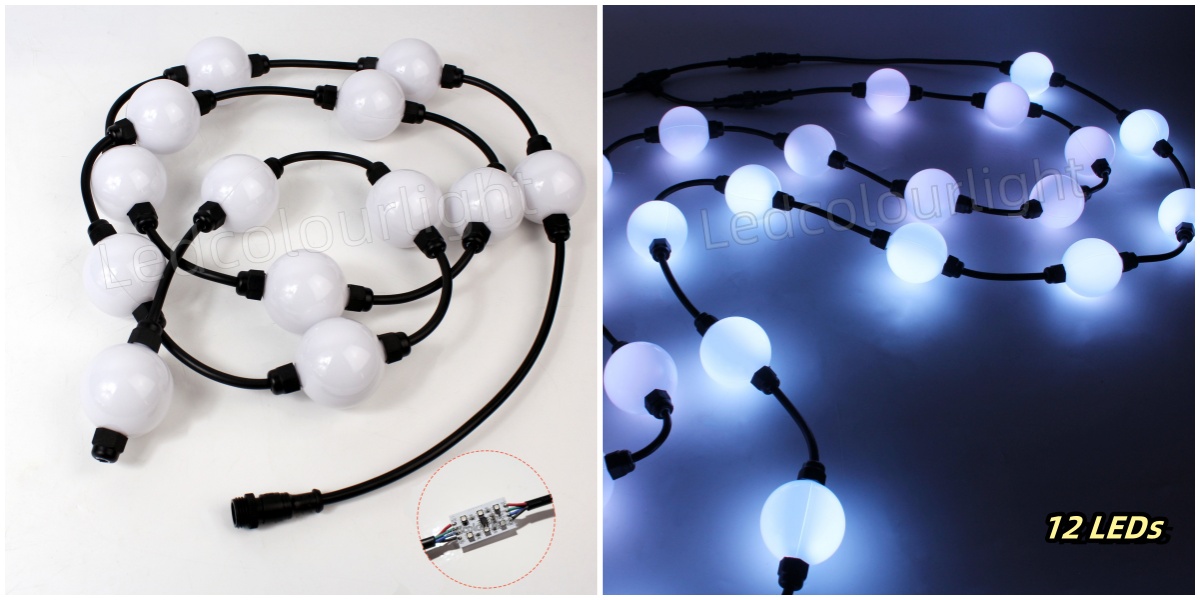

Customized 12-LED Configuration for Higher Brightness

To meet the project requirement for higher brightness, the internal LED layout was modified from 6 LEDs to 12 LEDs per ball, with 6 LEDs on each side. This change increased the power consumption to approximately 2.9W per ball.

Key points of the customized configuration include:

• Light source: 12 LEDs per ball (single-sided 6 LEDs)

• Power consumption: approximately 2.9W per ball

• Operating voltage: DC24V (unchanged)

Maintaining the same operating voltage allows the customized LED ball string to be used with standard DC24V power supplies and existing control infrastructure. No changes to the external dimensions or mounting method were required, which simplified integration into the overall installation.

The outer housing remains a 50mm diameter milky PC shell. Two hemispheres are joined using two black threaded caps, ensuring a consistent appearance across standard and customized versions.

Control Requirements in Suspended LED Ball Systems

In suspended installations, multiple LED ball strings are often arranged vertically or in layered formations. In these layouts, standard non-loopback control methods can lead to repeated addressing. Each string begins from the same starting address, resulting in identical lighting behavior across all strings.

This behavior is acceptable for simple static effects, but becomes a limitation when different depths or spatial variations are required. In projects where LED pixel balls are arranged to form a three-dimensional structure, addressing continuity across strings is necessary.

SPI Control with Signal Loopback

For this reason, the customized RGB LED ball string adopts an SPI control solution with a signal loopback. The signal structure consists of an SPI 3-wire interface (data, DC+, GND) combined with one additional signal loopback line.
Through customized T-shaped connectors, multiple LED ball strings can be interconnected. Instead of operating as isolated units, the strings become part of a continuous signal chain. This enables addressing to flow from one string to the next, supporting complex and non-repetitive lighting patterns across the entire installation.
This approach is not intended as a new control concept, but rather a standard solution for suspended installations where multiple strings are required to operate as a single system. It provides predictable addressing behavior and avoids repeated lighting patterns across parallel strings.

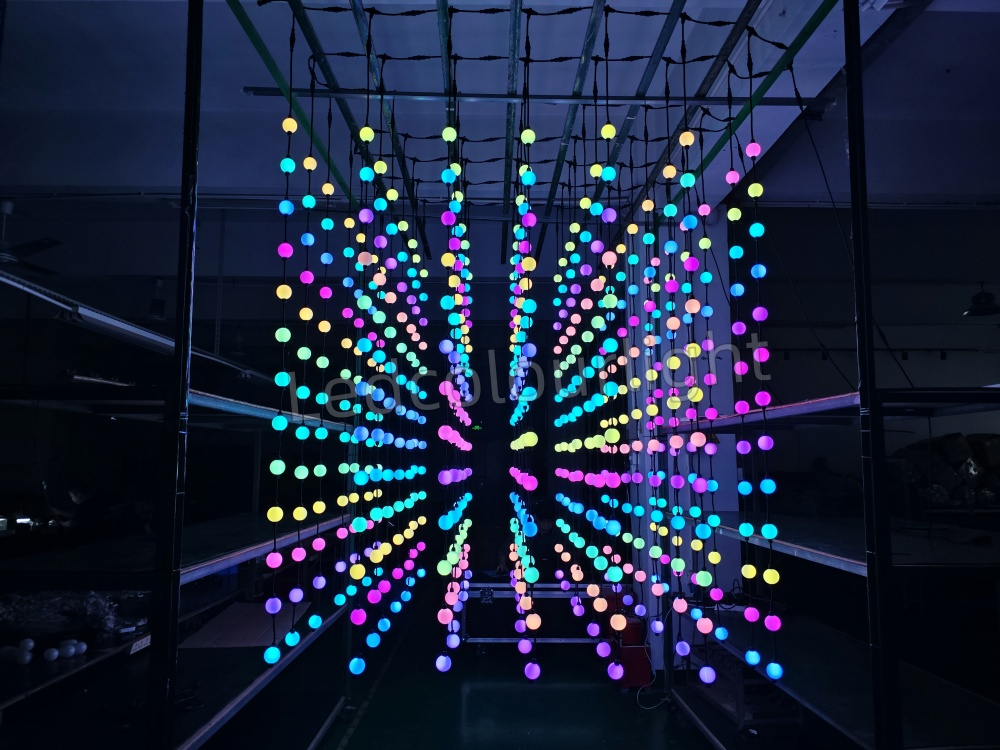

Factory Testing: Construction of a 3D LED Matrix

To evaluate system behavior under multi-string conditions, factory testing was carried out using an LED 3D matrix configuration. The test setup consisted of multiple LED ball strings connected via T-shaped connectors.

Test parameters included:

• 13 LED balls per string

• Center-to-center spacing: 150mm

• Multiple strings connected via T-shaped connectors

• Overall structure: 7 rows × 7 columns

The results indicate that the SPI loopback design maintains reliable control in larger, interconnected three-dimensional structures, making the system suitable for both permanent 3D LED matrix installations and large-scale temporary setups.

Test Focus and Observations

The testing focused on signal integrity, address continuity, and synchronized lighting behavior across the entire matrix.

The testing focused on several key aspects:

• Signal transmission stability across interconnected strings

• Address continuity throughout the 3D LED matrix

• Consistent response of each LED ball to control signals

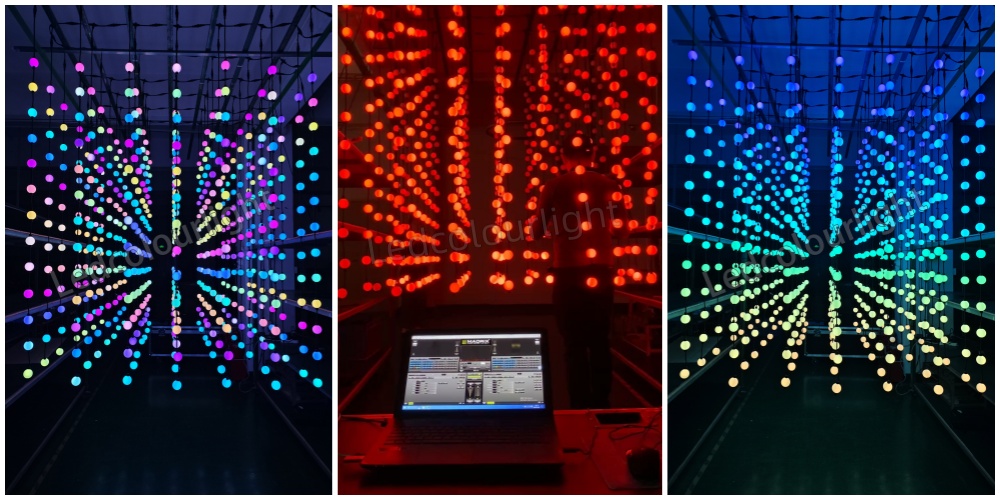

During testing, the SPI loopback structure maintained a stable signal flow across all rows and columns. Addressing remained continuous, with lighting behavior consistent with the programmed control data. No signal interruption or address reset was observed as the matrix was expanded, and each LED pixel ball responded individually as programmed through the LED controller and Madrix software. These results confirm that the loopback structure supports scalable suspended installations using multiple LED ball string units.

Application Scope

This customized configuration is intended for professional lighting projects where increased brightness and consistent control behavior are required. Typical applications include:

• Stage and performance lighting

• Exhibition and trade show installations

• Entertainment venues

• Architectural suspended lighting systems

In these environments, the combination of higher output and predictable addressing supports stable system operation over larger installations.

Summary

This customized 50mm LED ball string addresses a specific project requirement for higher brightness while maintaining the standard form factor and operating voltage. The use of an SPI control system with signal loopback reflects a practical requirement for suspended installations rather than an experimental feature.

Factory testing using a 3D LED matrix configuration confirms that the system supports continuous addressing and stable signal transmission across multiple interconnected strings. As a result, the solution is suitable for scalable suspended lighting installations that require reliable control and consistent visual behavior.
