DMX Tube Lights Create Stunning Harbor Lighting
2025-11-26

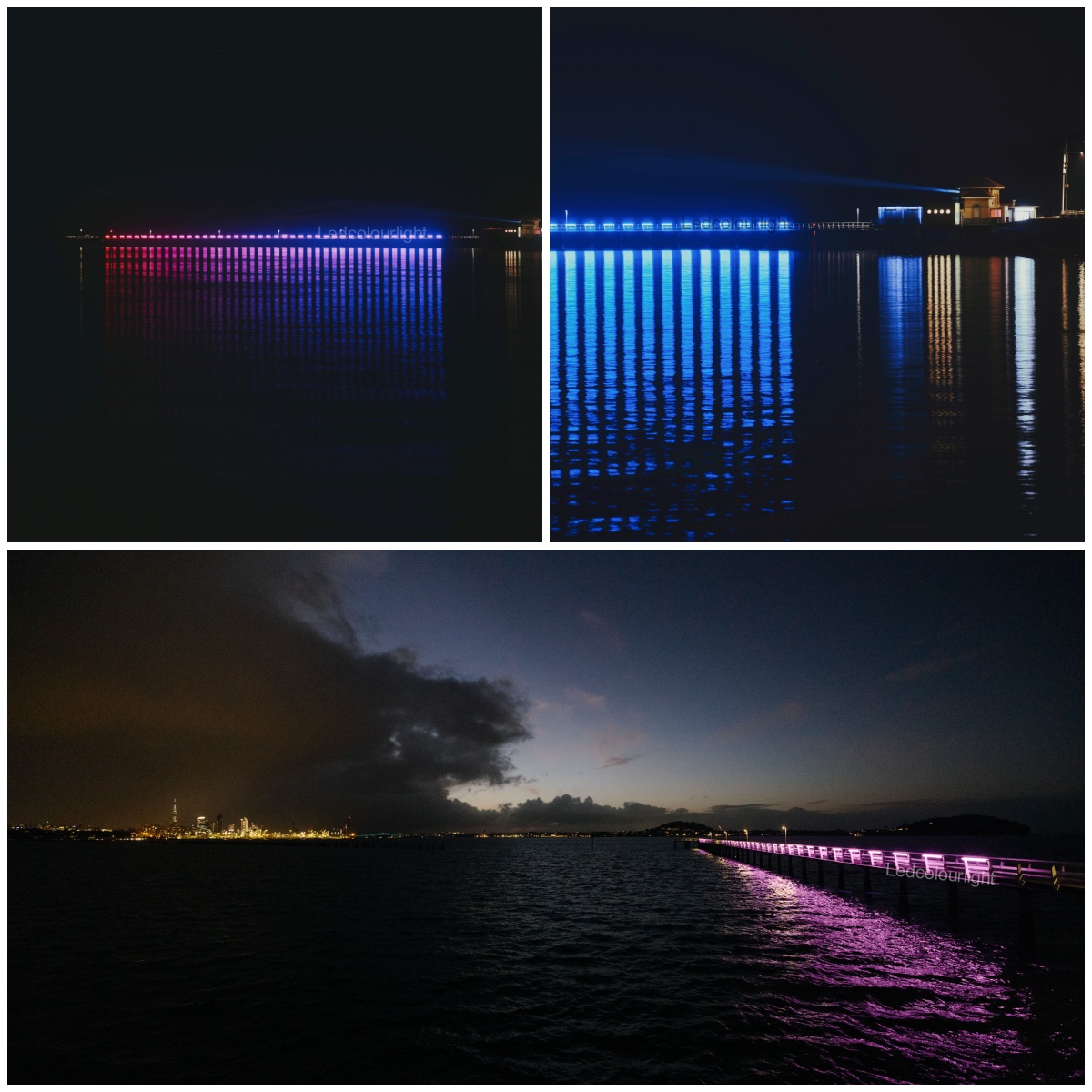

Auckland Waterfront Pixel Tube Project — Architectural Lighting Design with IP67 Waterproof Technology
As a manufacturer specializing in outdoor pixel lighting solutions, we are excited to present one of our clients' signature 2025 achievements—the Auckland Waterfront DMX LED Tube Installation, a 120-meter interactive lighting walkway engineered for extreme marine environments.
This project is a prime example of how architectural lighting design, combined with advanced pixel technology, can transform an urban coastal space into a dynamic nighttime destination.
Reimagining the Waterfront Through Architectural Landscape Lighting
Auckland's Waitematā Harbour is exposed to salt spray, high humidity, strong UV radiation, and seasonal high winds—conditions that challenge any lighting system.
The lighting needed to achieve:
The lighting needed to achieve:
- A 360° viewing experience suitable for waterfront public spaces
- Dynamic, programmable pixel animations
- Long-term stability under harsh marine conditions
- A clean, contemporary look that aligns with today's architectural linear LED lighting trends
After the technical evaluation, Ledcolourlights 2-meter 100mm DMX LED Tubes were selected as the core product.
Why 2000mm DMX Tube Light Led the Architectural Lighting Design
1. Seamless 360° Illumination — Beyond Traditional Linear Fixtures
Unlike typical architectural linear LED lighting that illuminates in limited beam angles (120–180°), the 3D DMX LED Tube delivers true 360° uniform lighting.

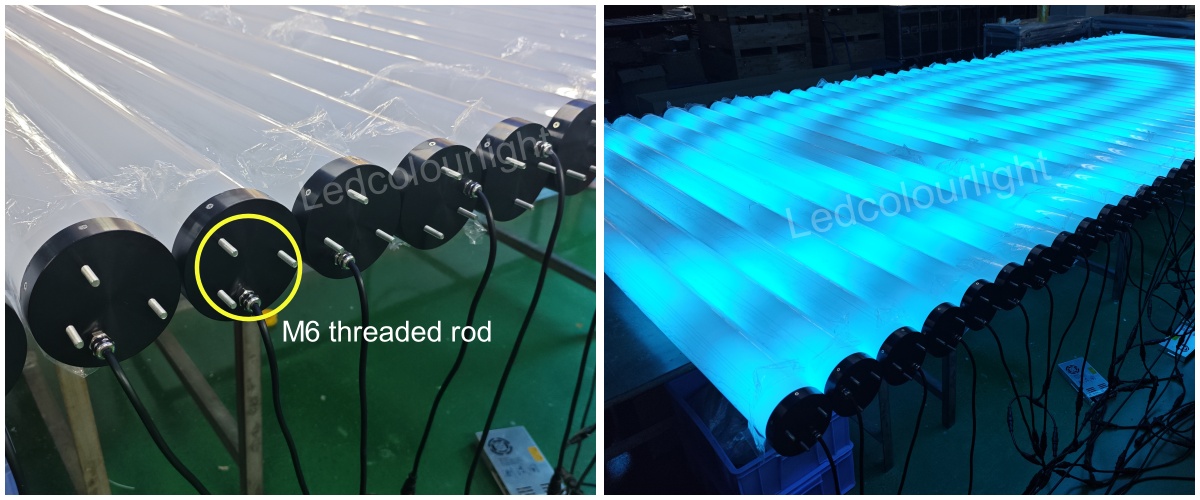

Each tube features:
- 2-meter length, 100mm diameter
- Double-sided LED PCB light board
- 288 pcs SMD5050 RGB LEDs (48 pixel points)
- High-diffusion milky PC tube for soft, uniform light output
- DMX512 RGB control, DC24V low-voltage system
The milky PC housing ensures smooth diffusion without hotspots, maintaining visual balance in both close-up and long-distance viewing—ideal for waterfront pedestrian zones, bridges, and architectural landscape lighting.
The RGB tube lights created a floating ribbon of light, aligning perfectly with modern architectural lighting design aesthetics. Whether viewed from boats on the water, pedestrians on the bridge, or from Auckland's skyline, the tubes maintain uninterrupted light output. Even the reflections on the water remain continuous—an essential element in the project's "light interacting with ocean" theme.
2. True IP67 Coastal-Resistant Construction for Coastal Architecture
Designed specifically for harsh environments, the 2000mm DMX LED Tube is engineered with:
Designed specifically for harsh environments, the 2000mm DMX LED Tube is engineered with:
- IP67-level waterproofing using silicone glue sealing
- UV-rated PC housing to withstand intense ultraviolet radiation
- Stainless-steel mounting hardware, resistant to salt corrosion
- A single-cable design integrating power + DMX512 data to reduce 80% of potential water ingress points
These strengths make it ideal for architectural landscape lighting in coastal parks, waterfront plazas, and bridges.
3. Pixel-Level Creative Freedom for Urban Storytelling
Each LED tube offers 48 addressable pixels, enabling:
Each LED tube offers 48 addressable pixels, enabling:
- DMX512 control
- Smooth animations at ≥25fps
- Up to 16.7 million colors
This allowed designers to incorporate:
- Ocean wave patterns
- Māori cultural motifs
- Light sequences for festivals and events
- Soft gradients and rhythmic pulses
The lighting becomes more than illumination—it becomes a digital art canvas.
Engineering Strategy: Fast, Safe, and Future-Proof
DMX-Optimized Redundant Control System
- 50 tubes
- Addressable per tube for fine-grain effects and diagnostics
- DMX ensures real-time responsiveness, stable long-distance transmission, and isolated zone operation.
If one fixture fails, the remaining zones continue to perform—maintaining visual effects and ensuring public lighting safety.
Dark-Sky Compliance
- Automatic brightness reduction after 22:00
- Reduced upward light leakage to protect wildlife and sky quality
A perfect example of sustainable, DMX-driven architectural landscape lighting.
Project Results: From Coastal Structure to Night-Time Landmark
Since its activation in August 2025, the project has generated major visual and cultural impact:
✔ A new nighttime landmark

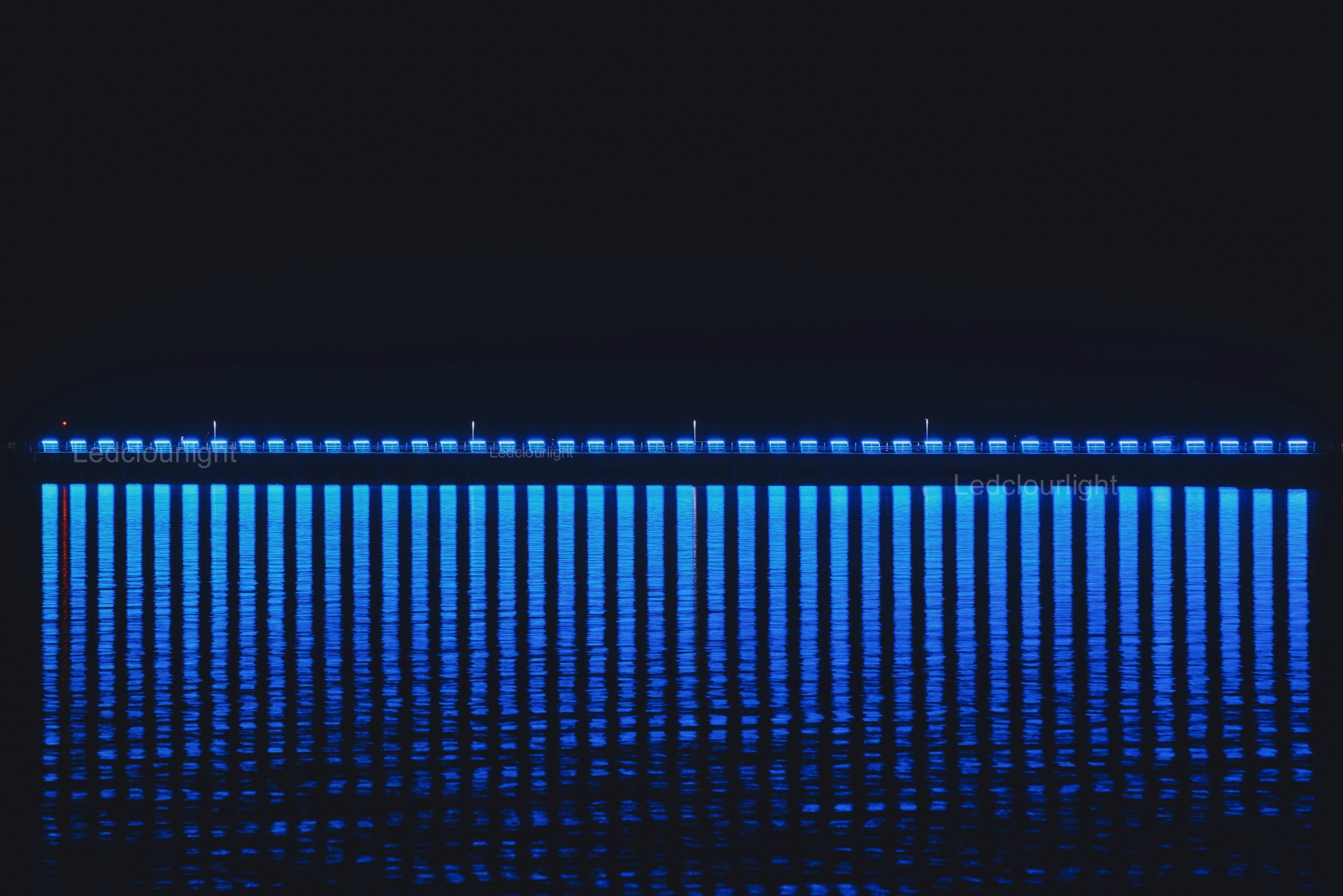

The pedestrian pier transforms into a floating ribbon of light visible across the harbour.
The pedestrian pier transforms into a floating ribbon of light visible across the harbour.
✔ Cultural storytelling platform
Dynamic scenes display star clusters, ocean themes, and Māori patterns.
Dynamic scenes display star clusters, ocean themes, and Māori patterns.
✔ Economic uplift for the waterfront
Local tourism data indicates:
+35% increase in nighttime visitors
New sightseeing boat route added with the pixel-tube bridge as a featured stop.
Local tourism data indicates:
+35% increase in nighttime visitors
New sightseeing boat route added with the pixel-tube bridge as a featured stop.
✔ Zero failure rate since installation
All 50 LED pixel tubes have remained fully operational thanks to IP67 coastal-resistant construction.
All 50 LED pixel tubes have remained fully operational thanks to IP67 coastal-resistant construction.
Conclusion: The Future of Coastal Architectural Lighting Design
The Auckland project demonstrates that:
- 360° LED pixel tubes outperform traditional linear fixtures in multi-angle public spaces
- Architectural linear LED lighting gains new expressive power through addressable pixels
- True IP67~IP68 waterproofing is essential for coastal installations
- Lighting can merge storytelling, technology, and landscape design
The DMX LED Tube series continues to evolve for future architectural applications—including bridges, parks, waterfronts, and large-scale public art.
About Ledcolourlight
Ledcolourlight is a leading LED lighting solutions provider based in Shenzhen, China. We specialize in DMX entertainment lighting and outdoor architectural illumination, delivering high-impact visual experiences for nightclubs, stages, commercial spaces, and landmark buildings worldwide.
With strong R&D capabilities and modern manufacturing facilities, we create innovative products including 3D LED tubes, pixel balls, LED strips, RGB bulbs, wall washers, facade lighting, and professional lighting control systems. We also offer OEM/ODM customization to meet unique project requirements.
Driven by the mission "Lighting the world," we are committed to quality, creativity, and customer satisfaction. Today, Ledcolourlight serves clients across North America, Europe, Asia, and beyond—bringing world-class lighting effects to global projects.
With strong R&D capabilities and modern manufacturing facilities, we create innovative products including 3D LED tubes, pixel balls, LED strips, RGB bulbs, wall washers, facade lighting, and professional lighting control systems. We also offer OEM/ODM customization to meet unique project requirements.
Driven by the mission "Lighting the world," we are committed to quality, creativity, and customer satisfaction. Today, Ledcolourlight serves clients across North America, Europe, Asia, and beyond—bringing world-class lighting effects to global projects.
Interested in Architectural Pixel Lighting Solutions?
We provide:
✓ Architectural linear LED lighting solutions
✓ Architectural landscape lighting systems
✓ Custom pixel lighting for public art & city landmarks
✓ Full OEM/ODM manufacturing
✓ coastal-resistant outdoor lighting design
✓ Architectural landscape lighting systems
✓ Custom pixel lighting for public art & city landmarks
✓ Full OEM/ODM manufacturing
✓ coastal-resistant outdoor lighting design
Contact us for datasheets, CAD files, or engineering consultation.
