Explore the Premium DMX Color Changing Light Tube Series by Ledcolourlight

Why Professionals Choose Ledcolourlight's DMX Light Tubes?

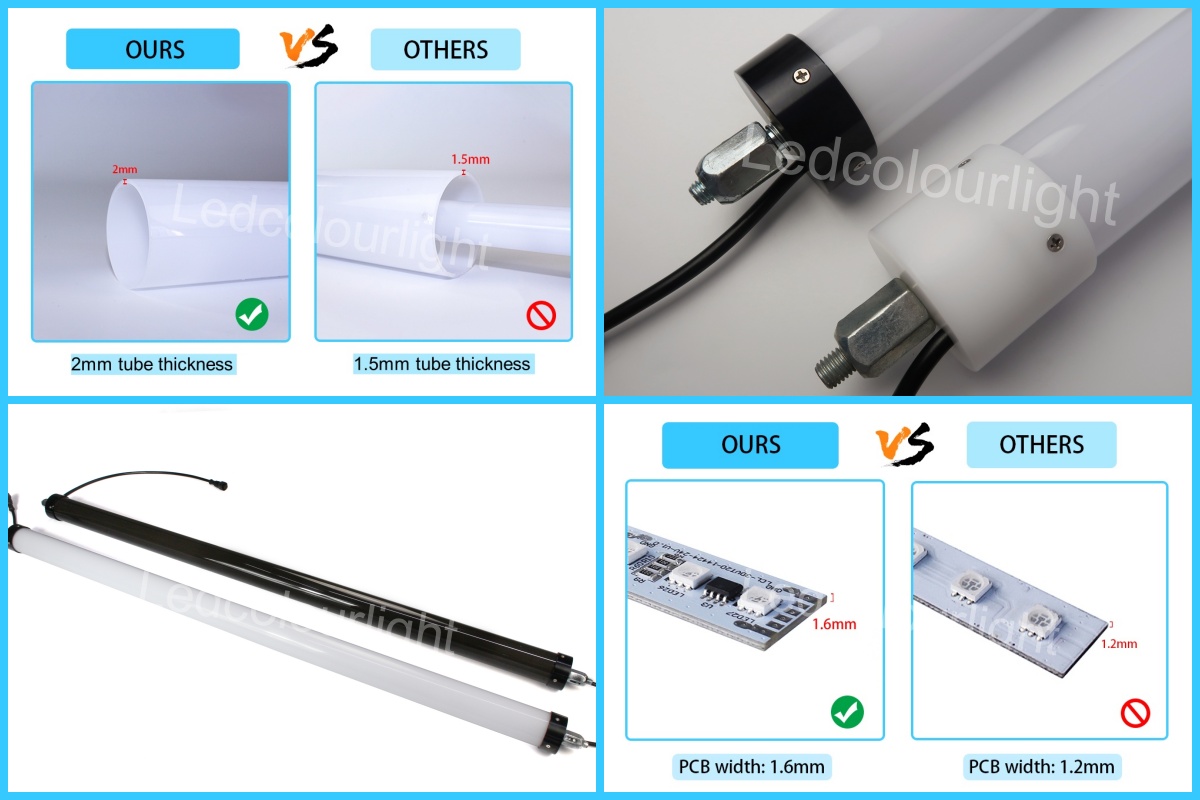

• The 2mm reinforced PC tube is impact resistant (tested to 100kg point load), ensuring excellent rigidity and impact resistance. But at the same time it also has a higher light transmittance.
• High-quality PC end caps, waterproof grade up to IP65, or CNC machined aluminum end caps, surface oxidation, rust-proof, and durable.
• UV-stabilized housing prevents yellowing and maintains optical clarity over extended use.

• 1.6mm PCB thickness reduces impedance and voltage drop, and provides more stable signal transmission.
• Using Epistar brand lamp beads, the chip adopts pure gold wire, and the RGB lamp tube adopts double-tube combination technology, providing an extremely smooth color mixing effect, no visible LED spot, thus producing a beautiful and uniform diffuse effect.
• The housing is available in two different colors – classic black for a bold, stylish look, and creamy white for a soft, diffused light that creates a mesmerising visual experience.
• 360° viewing angle ensures consistent luminosity from all perspectives.

• Full DMX512 protocol compliance with RDM device management.
• Pixel individual addressing (RGB, RGBW Channels), DMX address can be set via external device.
• Art-Net compatible for large-scale networked installations.

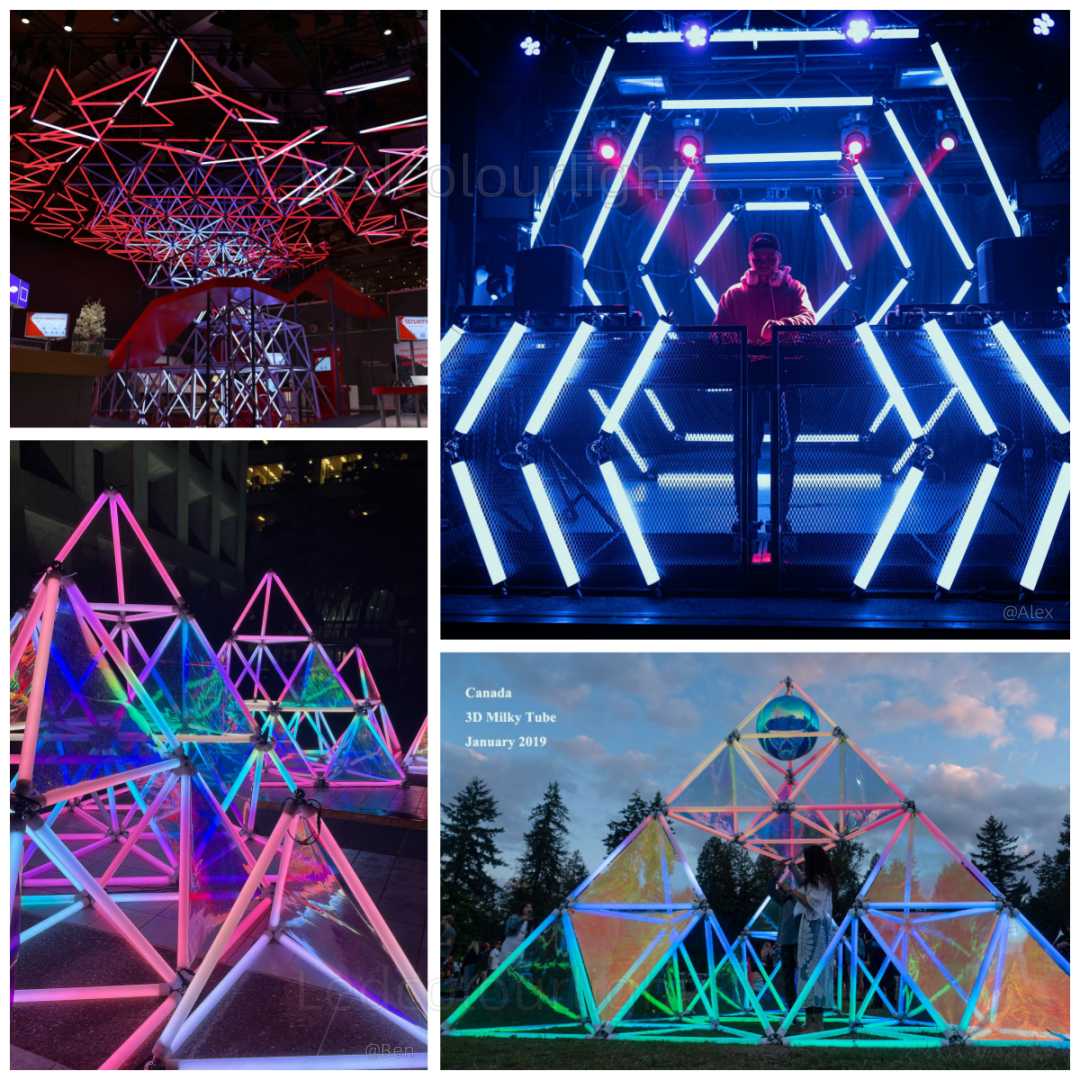

• Stage and concert lighting
• Art installations and galleries
• Commercial and architectural lighting
• Interactive museum or theme park environments

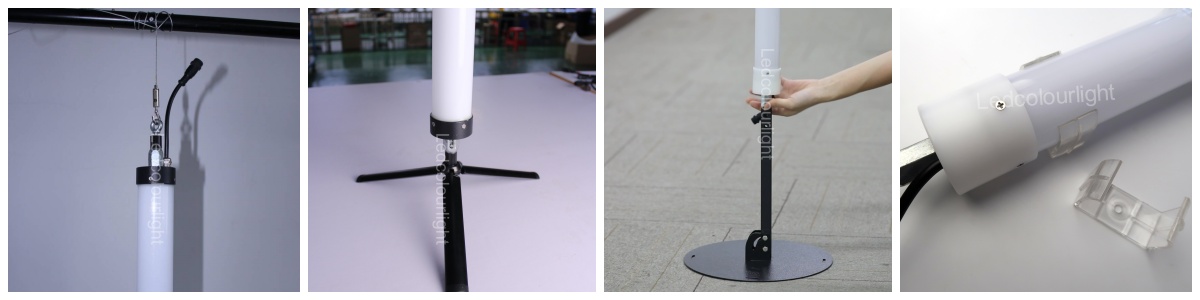

• Suspension Mounting – Use M10 eyebolt nuts for hanging installations.
• Standing Mounting – Attach to tripod bases or adjustable round disc stands (customizable height and adjustable angle).
• Wall & Surface Mounting – Flexible for any creative layout.

Technical Specifications for 50mm DMX RGB Tube Light

Parameter	Specification
LED Type	SMD5050
LED Density	96 / 120 / 144 LEDs/M (selectable)
Pixel Density	16 / 20 / 24 LEDs/M (selectable)
Power Consumption	28W/M (max)
Control Protocol	DMX512, Art-Net, TTL
Working Voltage	-20~50℃
IP Rating	IP45 / IP65
Certifications	CE / RoHs

Build Anything: From Pyramids to Polyhedra

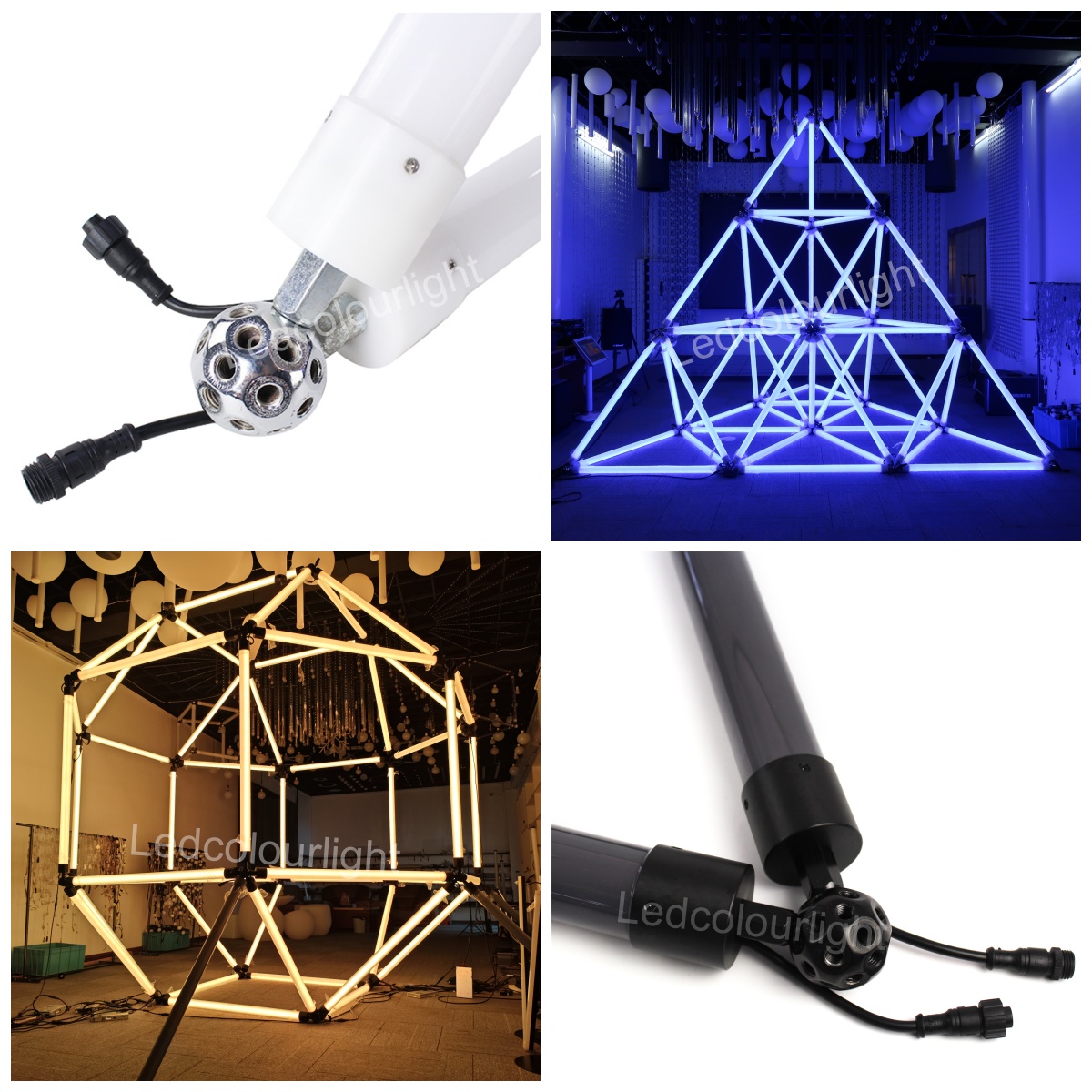

What sets this series apart is its modular and customizable structure. Each light tube features M10 threaded rods at both ends, allowing users to connect the tubes effortlessly into a wide variety of 3D configurations. Whether for fixed installations or temporary exhibits, this structural flexibility opens up countless creative possibilities.

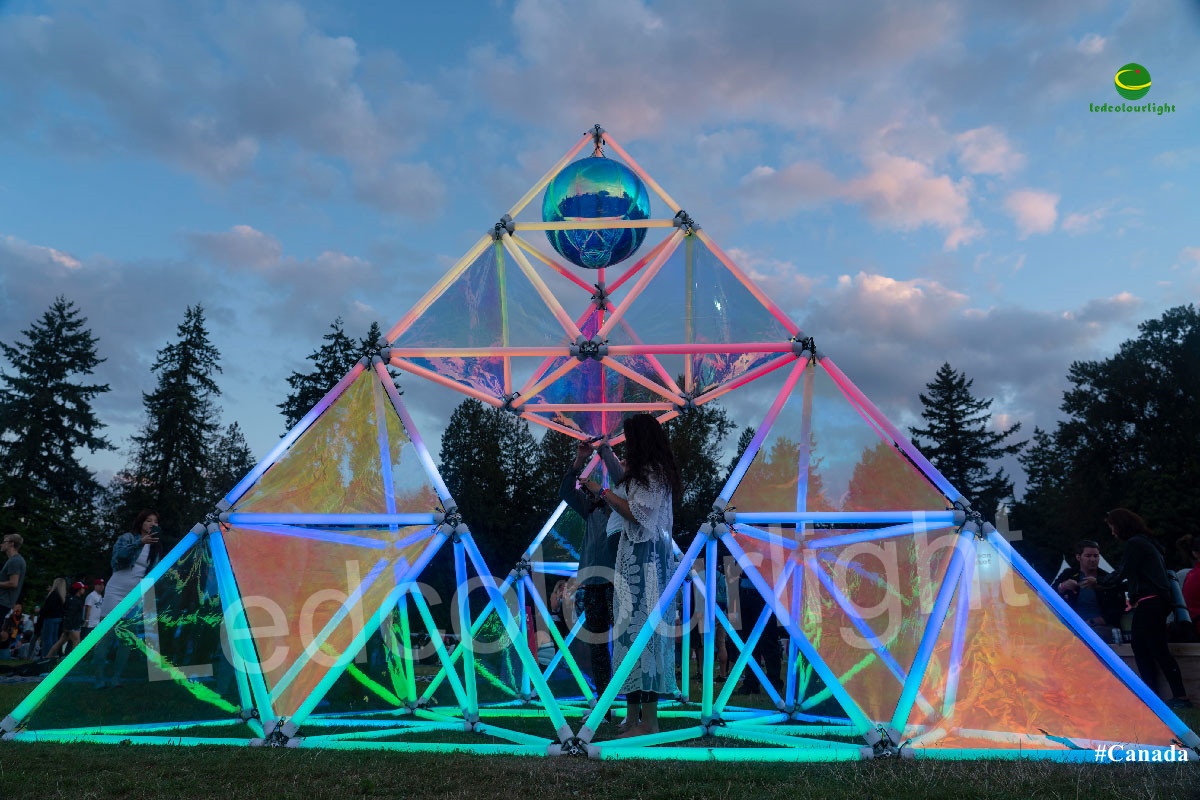

1. Pyramid Light Sculpture (1m Milky White LED Pixel Tubes)
60 * DMX LED tubes + 20 * 26-hole connection spheres (silver color)
 — a dynamic and attention-grabbing centerpiece suitable for exhibitions, festivals, or architectural landmarks.
Create a breathtaking illuminated pyramid that captivates audiences in lobbies, exhibitions, or stage designs. The milky white diffusion ensures a soft, radiant glow, perfect for high-end visual displays.

2. Geometric Polyhedron Light Art (1m Black RGB Pixel Tubes)
48 * LED pixel tubes + 24 * connection spheres
For a modern, futuristic look, assemble a dazzling polyhedron structure using black tubes. The deep black casing enhances contrast, making the LED glow appear even more striking—ideal for avant-garde installations.

Click to watch the video

Overview - Customizable Options for Every Project
The LED pixel light tube series is available in multiple configurations:

• Outer Tube Colors: Milky White / Black
• End Cap Options: PC material ( IP65, excellent waterproof performance), Aluminum (IP45, durable )
• Length Customization: 0.3m – 3m (or tailor-made upon request)
• LED Density: 96/120/144 LEDs per meter to meet the requirements of different designers

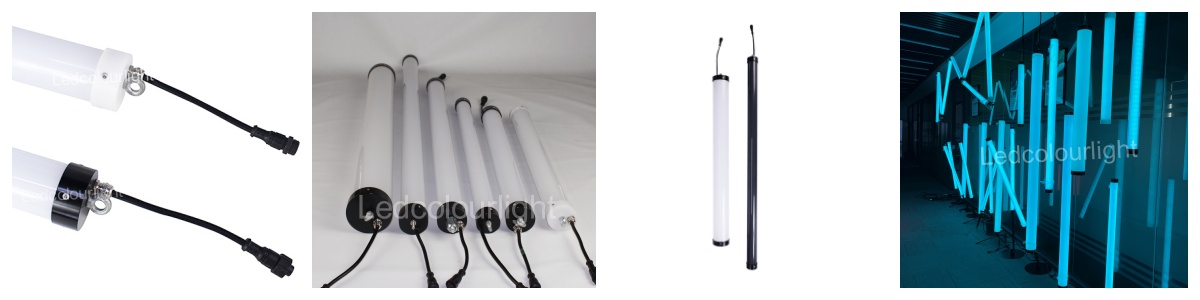

Expanded DMX RGB Tube Series with Custom Options

The DMX Light Tube is part of a broader product family, offering extensive customization to suit any project:

• Different end caps: Choose between versions with suspension rings or M6 / M10 threaded rods, depending on mounting and connection needs. Available in cream or black.
• Multiple diameter options: Available in 40mm, 50mm, 80mm, 100mm, and 150mm, allowing for varied scale and visual impact.
• Custom Lengths: Tubes can be manufactured in a range of lengths from 0.3 meters up to 3 meters, giving designers exceptional flexibility to create both compact designs and large-scale installations. Whether you need short segments to build detailed structures or long spans to create dramatic lines of light, the flexibility in length ensures that the lighting fits perfectly within the spatial and artistic needs of your project.

Product display video

This versatility makes it easy to scale the lighting system from small, elegant features to massive architectural frameworks.
