Exploring RGBW LED Tube Light Installations
2025-10-21
Exploring RGBW LED Tube Light Installations: From Flat Matrix to 3D Dynamic Design
In the realm of architectural and stage lighting, the choice of fixture is only half the story. The true magic unfolds in how that fixture is implemented. A standard LED tube can provide illumination, but a thoughtfully installed high-performance RGBW LED tube can sculpt space, evoke emotion, and create unforgettable experiences. Today, we delve into a practical exploration of a 1-meter, 50mm diameter 3D DMX512 RGBW LED tube light, testing its capabilities through two distinct installation paradigms: from a structured horizontal plane to an immersive vertical cascade.
1. Technical Overview: The 1m 50mm DMX RGBW LED Tube
The tested model features a 1-meter length and 50mm diameter with a 360° luminous angle, producing uniform light diffusion across the entire surface. Each tube contains 96 high-brightness SMD5050 LEDs divided into 16 pixels, delivering vivid RGBW color control via the DMX512 protocol. Operating at DC 24V, the tube is encased in a milky white PC diffuser and sealed with black anodized aluminum end caps, ensuring IP65 waterproof protection for both indoor and outdoor use.
The tube's dual-wire suspension design allows it to be mounted horizontally or vertically, giving lighting designers complete freedom to adapt to architectural, exhibition, or stage settings. The integration with Art-Net control systems enables real-time synchronization and complex visual programming through professional software such as Madrix or Resolume.
The tube's dual-wire suspension design allows it to be mounted horizontally or vertically, giving lighting designers complete freedom to adapt to architectural, exhibition, or stage settings. The integration with Art-Net control systems enables real-time synchronization and complex visual programming through professional software such as Madrix or Resolume.
2. RGBW vs. RGB: A Step Beyond Color
While standard RGB systems deliver full-color mixing through red, green, and blue diodes, the RGBW LED tube adds a dedicated white LED channel (CCT 6000K). This addition enhances brightness, contrast, and color accuracy — essential for both decorative and functional lighting.
- Brightness: RGBW configurations generate a more powerful luminous output since the white chip provides direct brightness rather than relying on mixed color light.
- Color Fidelity: White helps neutralize over-saturation, offering smoother transitions between hues.
- Versatility: LED tube RGBW adapts better to hybrid applications — from ambient mood lighting to pure white illumination for exhibitions or retail spaces.
For creative lighting designers, this means one fixture can perform multiple roles — from mood-setting accent light to vivid dynamic visual effect.

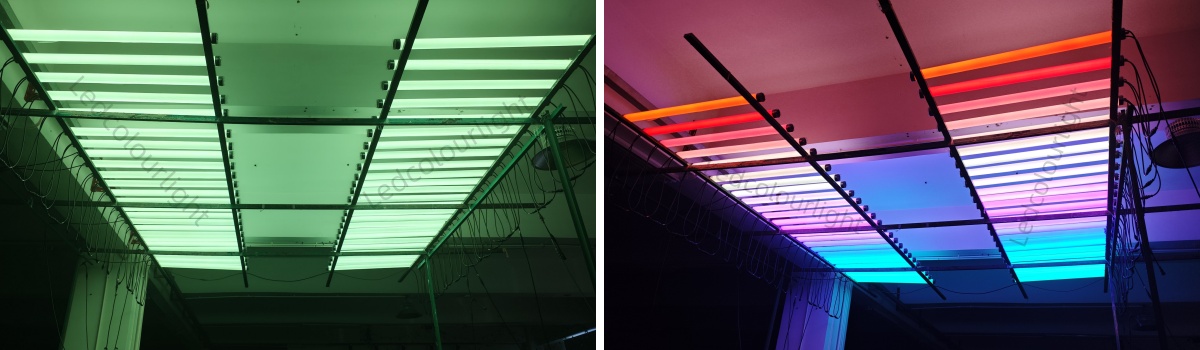

3. Test Scenario 1: The Structured Dynamism of Horizontal Matrix Installation
Our first test involves a horizontal installation, focusing on forming a multi-color dynamic LED tube matrix, using a metal frame to arrange the tubes in a symmetrical matrix. This method creates a ceiling or wall-mounted plane of light that is both orderly and dynamic.
- Visual Outcome: The installation immediately commands attention. The dual rows of tubes, operating in unison, displayed fluid gradient effects transitioning through violet, blue, green, red, and amber tones. The consistent spacing and alignment produced a clean, rhythmic movement of light that flowed across the surface, emphasizing depth and dimension. The milky white diffuser is crucial here, perfectly blending the light from the 96 LEDs to eliminate any LED spots, resulting in a smooth, continuous ribbon of color. The 16 pixels per tube allow for complex, programmable patterns that flow across the entire matrix, creating a sense of organized motion and rhythm.
- Application & Impact: The uniformity of the design makes this setup ideal for stage backdrops, museum installations, or architectural facades that demand precise geometric aesthetics. The dynamic light commands the visual field without being chaotic, establishing a strong, consistent brand identity through light.

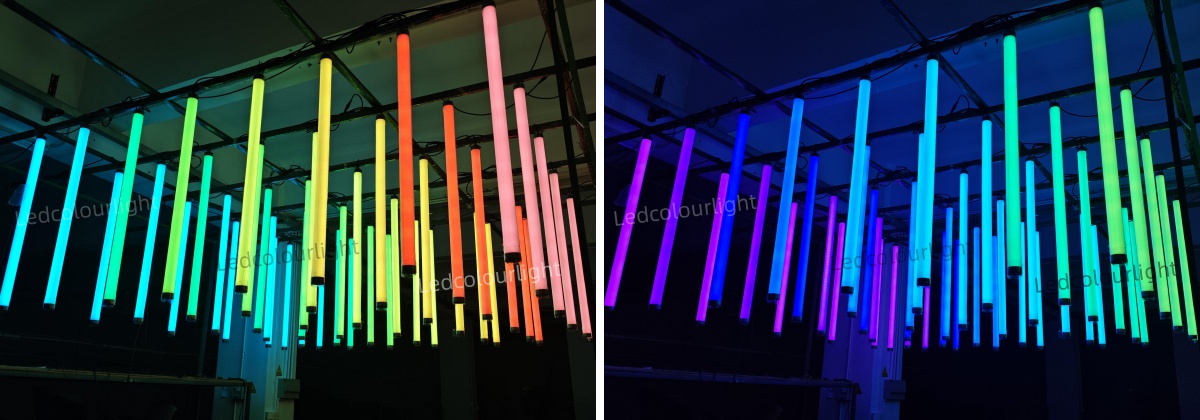

4. Test Scenario 2: The Immersive Depth of Vertical Suspension
The second installation transformed the same DMX RGBW LED tube lights into a vertical hanging array. Arranged in a 6-row by 8-column configuration, this layout introduced spatial layering, allowing viewers to experience the light structure in three dimensions.
- Visual Outcome: Suspended from an overhead metal bar, each RGBW LED tube became a dynamic pixel within a volumetric canvas. When programmed via Art-Net, light cascaded from top to bottom, simulating a “waterfall of color.” This 3D matrix approach creates immersive experiences often used in interactive exhibitions, clubs, and art installations. As the RGBW colors wash through the tubes from top to bottom, or pulse in a seemingly random pattern, the effect is mesmerizing. The 360-degree beam angle ensures the effect is visible from every vantage point, fully immersing the viewer.
- Application & Impact: This approach is exceptionally versatile. A small "art corner" can be created with just a few RGBW LED tube lights, while a large atrium or concert hall can be filled with hundreds to form a vast, enveloping environment. It transforms empty vertical space into the main attraction. This is perfect for creating immersive art installations, dramatic entranceways, or dynamic stage sets where performers move through the forest of light.
5. Application in Architecture, Stage, and Exhibition Design
The creative potential of the DMX512 rgbw led tube light extends across multiple industries:
- Architectural Illumination: Used to outline building contours or facades with programmable color effects, enhancing visual identity at night.
- Stage & Entertainment: Synchronizes with sound systems and DMX consoles for rhythmic, music-responsive lighting during concerts or performances.
- Exhibition & Retail Design: Provides accent and ambient lighting for brand storytelling or immersive spatial environments.
- Public Art & Installations: Builds volumetric sculptures with dynamic motion patterns, combining engineering and art.
6. Factory Testing: From Assembly to Lighting Validation
Each led tube rgbw undergoes strict production and testing processes at Ledcolourlight's facility. The assembly includes:
- SMT soldering of high-precision LED chips
- Light board and wire soldering for reliable connectivity
- Aging tests under continuous operation for performance validation
- Waterproof sealing and insulation tests ensuring IP65 rating
The testing environment replicates real installation conditions to evaluate light consistency, color response, and DMX address synchronization before shipment.
7. Conclusion
Our installation tests confirm that the potential of a modern led tube rgbw extends far beyond simple decoration. The choice between a disciplined horizontal matrix and a free-flowing vertical installation can define the entire character of a space. By leveraging the advanced color capabilities of RGBW technology and the precision of Art-net control systems, designers and installers have a powerful tool at their disposal—not just as illumination, but as an expressive material shaping space and emotion.
