Immersive Digital Art Installation with 3D Pixel LED Ball Systems
2025-11-20

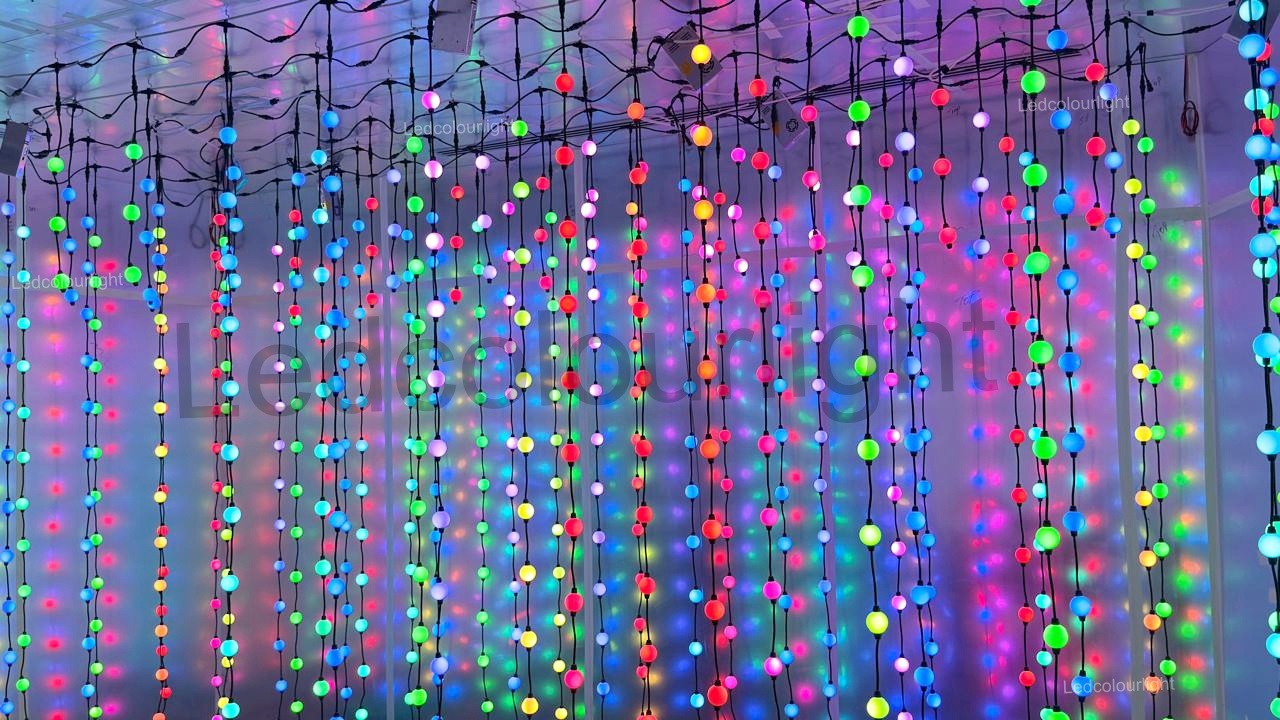

Dubai Infinite Room Digital Art Installation: A 3D LED Light Installation Creating an Infinite Immersive Tunnel
The Dubai Infinite Room is a striking digital art installation that blends lighting technology with architectural creativity. Instead of traditional mirrors, the space uses laser-cut reflective panels to generate a multi-directional reflective effect, amplifying depth and creating the illusion of an endless tunnel. Using 50mm 3D LED pixel balls powered by the WS2811 RGB protocol, the project demonstrates how a large-scale LED installation can transform physical space into a multidimensional visual experience.
Suspended using custom SPI T-cables and combined with reflective panels, the installation creates a mesmerizing visual effect where reality and illusion merge—making it one of the most iconic LED light installation projects in the region.
Project Background: Blending Art, Space, and Technology
The design concept of the Mirror Room revolves around "light + reflective illusion," aiming to break the boundaries of physical space, using laser reflective panels to create an immersive spatial effect. The goal was to break the boundaries of physical space through precise lighting and structural integration. The client required:
1. Strong Visual Impact
Dynamic lighting is needed to interact with the reflective panels to amplify the illusion of infinite depth.
2. Precise Pixel Control
Different strand lengths had to be controlled independently to match the spatial layout—longer strands around the perimeter and shorter strands in the center.
3. Clean Installation & Structural Adaptation
All LED pixel strands had to be suspended cleanly using a T-cable structure, maintaining a flawless reflective environment with minimal visible cabling.
The 50mm 3D LED pixel ball strings were chosen as the ideal solution—providing stable SPI signal transmission, full pixel-level control, and seamless compatibility with T-cable suspension systems to achieve a refined and immersive visual experience.
Dynamic lighting is needed to interact with the reflective panels to amplify the illusion of infinite depth.
2. Precise Pixel Control
Different strand lengths had to be controlled independently to match the spatial layout—longer strands around the perimeter and shorter strands in the center.
3. Clean Installation & Structural Adaptation
All LED pixel strands had to be suspended cleanly using a T-cable structure, maintaining a flawless reflective environment with minimal visible cabling.
The 50mm 3D LED pixel ball strings were chosen as the ideal solution—providing stable SPI signal transmission, full pixel-level control, and seamless compatibility with T-cable suspension systems to achieve a refined and immersive visual experience.

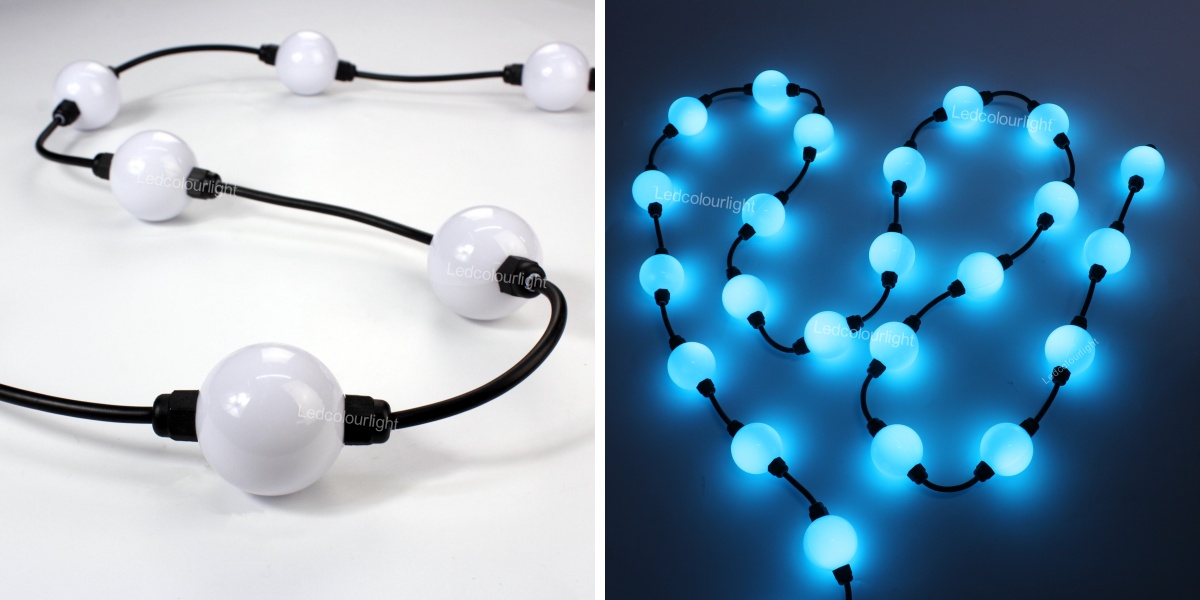

Lighting Hardware: 50mm WS2811 3D LED Pixel Balls
1. High-Transparency Optical PC Dome
Each LED ball is equipped with an opal (milky) PC dome that delivers soft, evenly diffused illumination without glare. When paired with the reflective laser panels, the light creates smooth, continuous reflections that enhance depth and amplify the immersive spatial effect.
2. WS2811 SPI Protocol
- Single-pixel addressing
- 16.7M colors with 256-level dimming
- Support for complex chases, gradients, and interactive animations
This enables the installation to achieve synchronized, layered, and fully programmable effects across hundreds of LED spheres.
3. Signal Loop + Custom SPI T-cable Structure
The internal signal loop prevents data loss over long distances, while the T-cable suspension cable allows:
- Clean and discreet installation
- Strong load-bearing for hanging strands
- Quick maintenance
Spatial Arrangement: Long + Short LED Strands Forming an Infinite Tunnel
The installation uses two LED strand lengths:
13-ball strands (2.6 m)
Installed on the left and right walls to create depth
3-ball strands (0.6 m)
Installed in the center to generate rhythm and variation
Overall Distribution
- 200 long strands on both sides
- 80 short strands in the center
This layout forms a layered lighting matrix where long vertical lines define the perspective while the short strands break visual monotony, making the tunnel more dynamic and engaging.
Lighting Design: A Narrative of Light, Color, and Interaction
The LED installation is not a static decoration—it is a dynamic digital art installation designed to present multiple lighting scenarios.
1. Ambient Mode: Soft Breathing Gradient
1. Ambient Mode: Soft Breathing Gradient
- Warm tone palette (pink, blue, violet)
- Slow 10-second breathing cycle
- Mirror reflections multiply the glow to create a "crystal light tunnel" effect
- Side strands transition from light blue to deep blue, enhancing depth
- Center strands use pink-to-purple gradients for contrast
2. Art Performance Mode: Dramatic Lighting for Events
"Infinite Galaxy" Mode
"Infinite Galaxy" Mode
- Cool colors across all LED balls
- Long strands run a 2-second distance chase
- Short strands sparkle randomly like stars
- Mirrors amplify the cosmic effect
"Color Burst" Mode
- High-saturation RGB flashes
- Random color jumps across all strands
- Sudden burst followed by a calm fade
- Perfect for show highlights or transitions
Technical Stability: Designed for Long-Term Public Use
24V Low-Voltage Power System
Ensures stable brightness with no voltage drop, safe and reliable for public art spaces.
Signal Anti-Interference
WS2811 + shielded T-line guarantees no flicker or signal loss even in environments with electronic noise.
Modular Maintenance
Each strand can be replaced independently through T-cable connectors—reducing maintenance cost and downtime.
Project Outcome: A New Benchmark for LED Installations in Public Art
The Dubai Infinite Room quickly became a social media hotspot and a landmark digital art installation.
Artistic Value
The 50mm 3D LED balls transform the space into an immersive, interactive light environment—turning the infinite mirror concept into a sensory experience.
The 50mm 3D LED balls transform the space into an immersive, interactive light environment—turning the infinite mirror concept into a sensory experience.
Technical Value
The project showcases how WS2811 pixel balls, signal loop systems, and SPI T-lines can be combined for precise control in large-scale installations.
The project showcases how WS2811 pixel balls, signal loop systems, and SPI T-lines can be combined for precise control in large-scale installations.
Commercial & Cultural Impact
This LED light installation demonstrates how LED technology can serve as the backbone for immersive storytelling in:
This LED light installation demonstrates how LED technology can serve as the backbone for immersive storytelling in:
- Art galleries
- Commercial spaces
- Museums
- Experiential retail
- Events & exhibitions
It proves that LED installations are not just lighting—but a medium for transforming physical space into interactive digital art.
About Us – Ledcolourlight
At Ledcolourlight, we specialize in transforming spaces through advanced pixel-based lighting technology. From immersive digital art installations to large-scale architectural lighting, we design and manufacture high-performance LED solutions that bring creative visions to life.
With more than a decade of industry experience, we focus on addressable LED systems, including SPI and DMX512 pixel strings, RGB tube lights, 3D pixel balls, flex neon, pixel mesh screens, and custom lighting nodes. Our products power some of the most captivating light installations worldwide—such as the Dubai Laser Infinite Room, UK Lighting Festival DMX Light tube decoration, Hong Kong Music Festival 3D sphere installations, and experiential art spaces across Europe, the Middle East, and North America.
What We Do
With more than a decade of industry experience, we focus on addressable LED systems, including SPI and DMX512 pixel strings, RGB tube lights, 3D pixel balls, flex neon, pixel mesh screens, and custom lighting nodes. Our products power some of the most captivating light installations worldwide—such as the Dubai Laser Infinite Room, UK Lighting Festival DMX Light tube decoration, Hong Kong Music Festival 3D sphere installations, and experiential art spaces across Europe, the Middle East, and North America.
What We Do
- Custom Pixel Lighting Solutions: From 3D pixel spheres to neon flex and pixel mesh screens, we engineer every product for creativity and reliability.
- Professional Control Systems: Supporting SPI, DMX512, Art-Net, and media server integration for professional show control.
- Turnkey Project Support: Providing wiring design, product customization, installation guidance, and technical consultation for global clients.
- High-Quality Manufacturing: Using premium LED chips, stable low-voltage power systems, and reinforced signal design to ensure long-term performance in demanding environments.
Our Mission
To redefine visual storytelling through light—empowering artists, designers, and brands to build immersive, emotionally engaging spaces.
Why Ledcolourlight
To redefine visual storytelling through light—empowering artists, designers, and brands to build immersive, emotionally engaging spaces.
Why Ledcolourlight
- Proven expertise in digital art installations, LED light installations, and large-scale pixel projects
- Strict quality control with reliable power & signal engineering
- Fast customization and global project support
- Trusted by studios, event companies, museums, architects, theme parks, and creative agencies
At Ledcolourlight, we believe lighting is more than illumination—it is a medium for creativity, emotion, and experience. We are committed to delivering pixel lighting solutions that are as inspiring as they are dependable.
Let's create something extraordinary together.
Let's create something extraordinary together.
DMX Tube Lights Create Stunning Harbor Lighting
Music Festival Lighting Case Study - 36mm DMX 3D Pixel LED String
Related Article

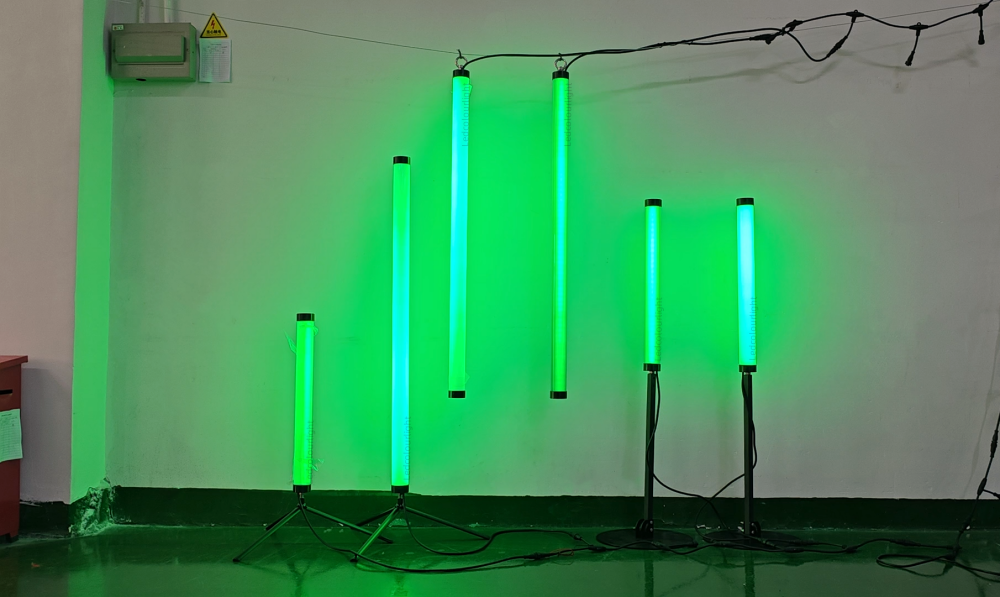

This article explores a versatile 3D LED light tube developed for multi-project use, offering adaptable installation methods and consistent performance for professional lighting environments.
