Latest Production - 1m DMX RGBW Outer-Curved Ring Light
2025-10-16
Latest Production – 1m DMX RGBW Outer-Curved Ring Light
In the evolving world of architectural and stage lighting, innovation never stops. One of the latest additions to the creative lighting lineup is the 1m DMX RGBW outer-curved LED ring pendant light — a unique solution designed for both professional designers and large-scale installation projects. This product combines artistic design with precise digital control, offering lighting designers a new way to define “illumination in motion.”
1. Redefining the Concept of the Circle Pendant Light
Unlike traditional circle pendant lights that emit light downward or upward, this new outer-curved design directs its glow outward. The curvature creates a broader diffusion of light and enhances visual depth, making it especially suitable for wall installations, trees, or circular structures in outdoor landscapes.
The outer-curved ring pendant light transforms the way light interacts with its environment. Instead of illuminating only a central area, it radiates outward, forming a glowing halo effect — perfect for immersive lighting installations, stage backdrops, or urban art displays.
The outer-curved ring pendant light transforms the way light interacts with its environment. Instead of illuminating only a central area, it radiates outward, forming a glowing halo effect — perfect for immersive lighting installations, stage backdrops, or urban art displays.
2. Structure and Materials — Engineered for Precision

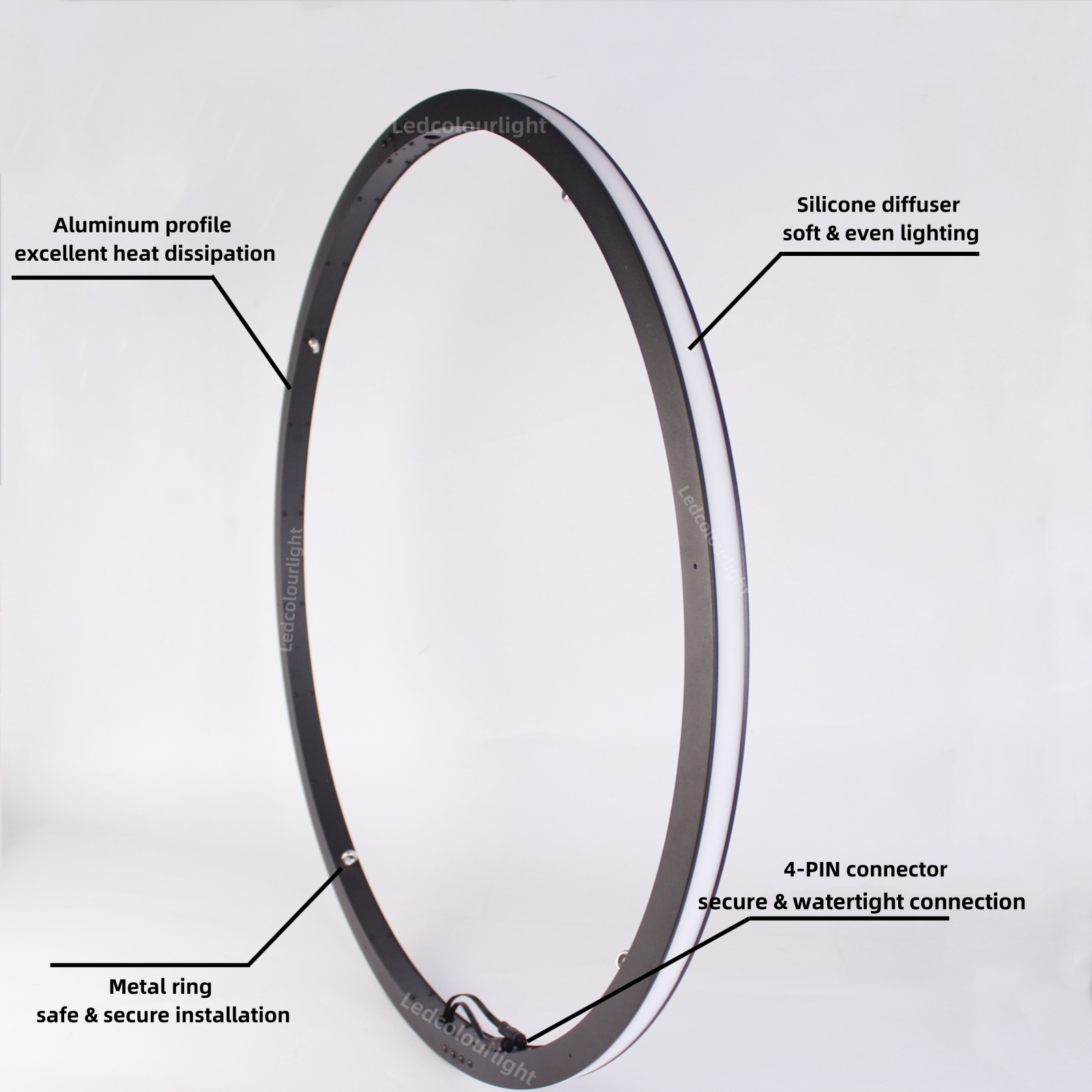

The fixture is built from high-quality black anodized aluminum with a flexible silicone diffuser, ensuring uniform light distribution across every inch of the arc. The matte silicone surface softens the RGBW light output, balancing brightness while maintaining vivid color reproduction. It also protects the LEDs from external damage.
The aluminum frame provides excellent heat dissipation, allowing the heat generated by the LEDs to be dissipated quickly, which extends the lifespan of the LEDs to over 50,000 hours, ensuring long-term stability and durability — key for projects requiring continuous operation. The LED ring pendant light design also allows easy assembly, with multiple segments forming a complete circle ranging from 0.5m to 2m in diameter.
The aluminum frame provides excellent heat dissipation, allowing the heat generated by the LEDs to be dissipated quickly, which extends the lifespan of the LEDs to over 50,000 hours, ensuring long-term stability and durability — key for projects requiring continuous operation. The LED ring pendant light design also allows easy assembly, with multiple segments forming a complete circle ranging from 0.5m to 2m in diameter.
3. DMX512 Control and RGBW Color Mixing

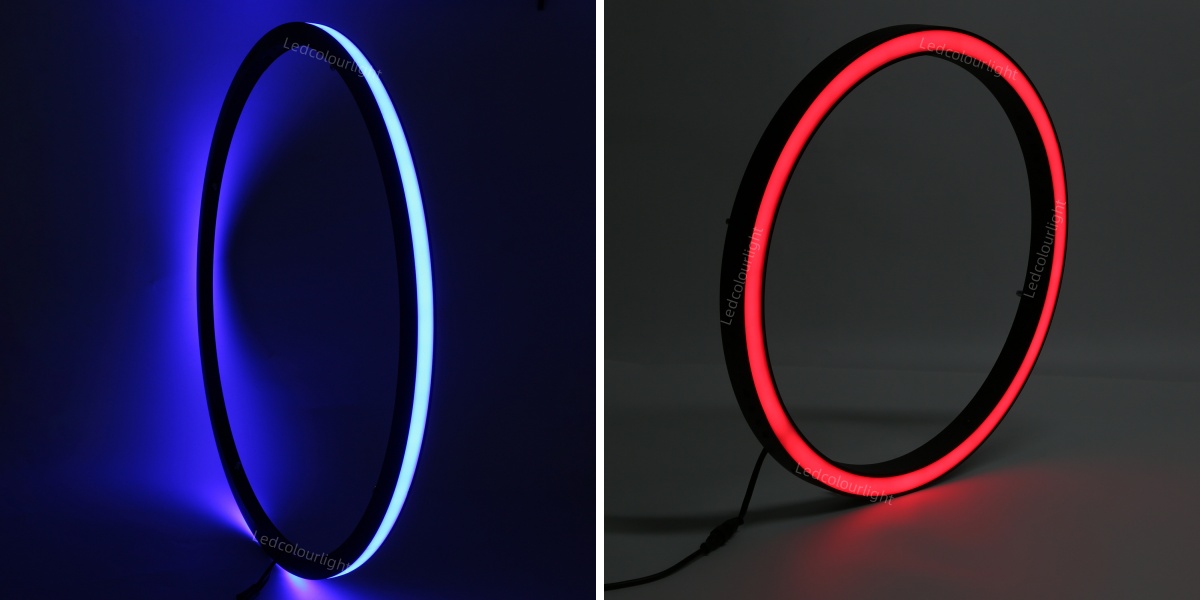

Each ring integrates DMX512 digital control, supporting precise pixel-by-pixel adjustment for complex visual effects, and enabling precise and synchronous control of multiple LED ring lights. With RGBW configuration — Red, Green, Blue, and an independent White channel, enabling the light to produce a wide range of colors and achieve high - quality white light output — designers gain an extended color palette and improved color temperature control.
This setup is especially beneficial for architectural or stage environments that require both vivid color transitions and natural white illumination. The 60 LEDs per meter (10 pixels per meter) setup allows for precise control of individual sections of the light. This pixel - level control enables the creation of complex dynamic lighting effects, such as chasing, fading, and strobing, which are highly sought after in entertainment venues and creative lighting installations..
4. Comparison: Outer-Curved vs. Inner-Curved Ring Lights
Both outer-curved and side-curved ring pendant lights serve different design philosophies:
Outer-Curved Design:
The light faces outward, emphasizing spatial expansion and visual extension. This makes it ideal for wrapping around pillars, trees, or façades, projecting light into open areas. It enhances dimensionality and is particularly effective in public spaces and performance environments.
The light faces outward, emphasizing spatial expansion and visual extension. This makes it ideal for wrapping around pillars, trees, or façades, projecting light into open areas. It enhances dimensionality and is particularly effective in public spaces and performance environments.
Side-Curved Design:
The light faces downward or upward, suitable for highlighting central objects or architectural ceilings. It provides focused illumination and a soft, enclosed aesthetic.
The light faces downward or upward, suitable for highlighting central objects or architectural ceilings. It provides focused illumination and a soft, enclosed aesthetic.
The outer-curved design, however, stands out in versatility — it's not only suitable for suspended or pendant-style use but can also be mounted directly on surfaces or integrated into environmental art installations.
5. Technical Advantages and Customization Options
The LED ring pendant light offers several technical and customization benefits:
- Multiple Diameters: 0.5m, 1m, 1.5m, 2m, or custom sizes available.
- Light Source: 60 LEDs per meter SMD5050 RGBW, 10 pixels/m.
- Power Supply: DC24V input with efficient power distribution.
- Connection: 4-pin or 5-pin waterproof connectors, allowing plug-and-play installation, ensuring a secure and watertight connection.
- Waterproof Performance: IP65-rated design ensures reliable outdoor use, resistant to moisture and dust, making it suitable for both indoor and outdoor applications.
- Mounting Flexibility: To meet the diverse installation needs of customers, the DMX RGBW outer-curved circle pendant light offers two delivery options: pre-assembled full circles or segmented sections. The pre-assembled full circles are ready for immediate installation, saving time and labor costs for customers. The segmented sections, on the other hand, allow customers to surround objects of different shapes and sizes and then assemble them into a complete circle. This flexibility is particularly useful in applications such as wrapping around columns, arches, or custom-shaped displays.
Such flexibility allows the same lighting system to adapt to different environments — from hotels and shopping centers to festivals and outdoor shows.
6. Application Scenarios: Art Meets Engineering
The outer-curved circle pendant light is a powerful design tool in various fields:
- Architectural Lighting: Enhances the facade of buildings or urban sculptures with a dynamic glow.

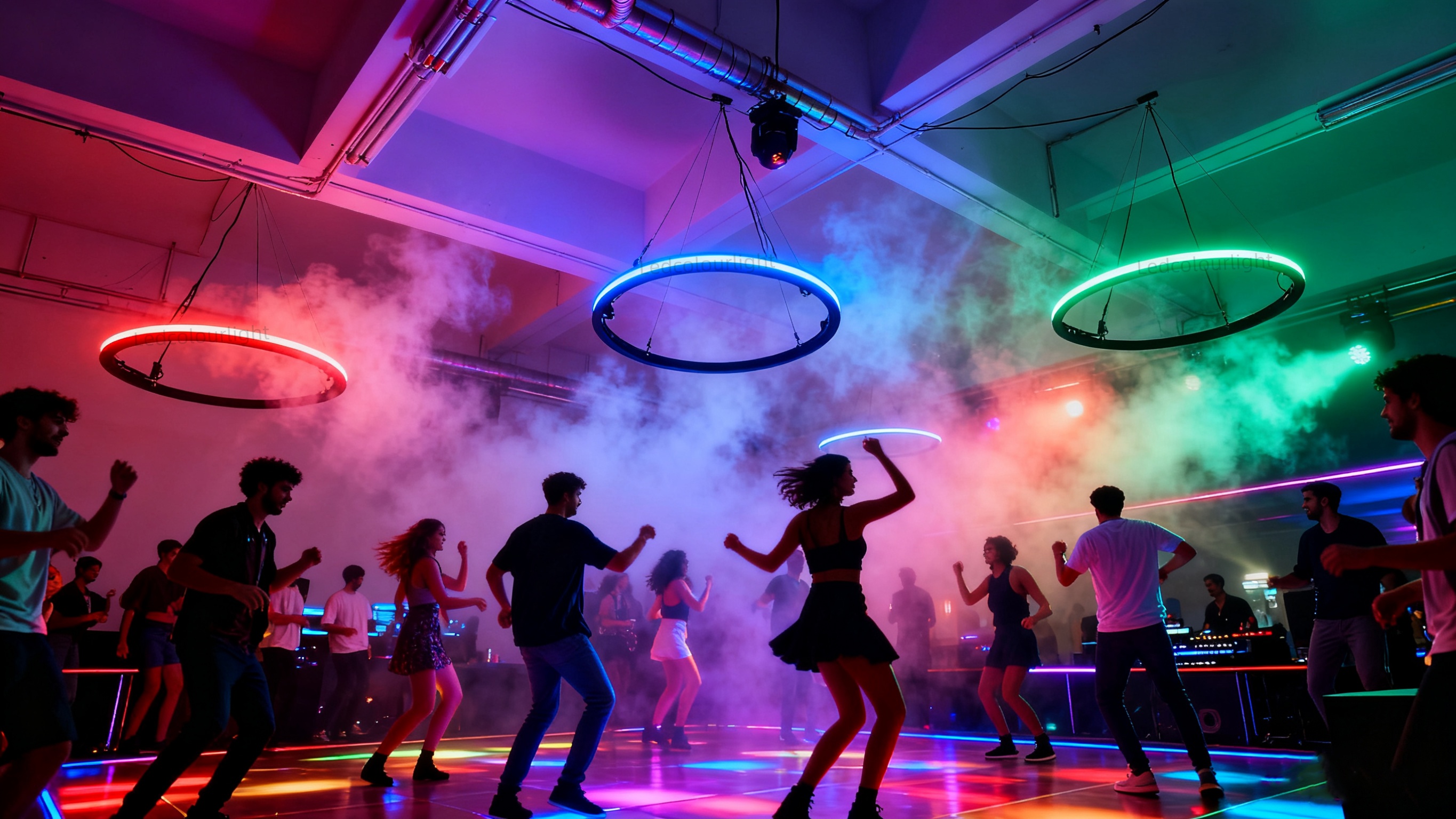

- Event and Stage Design: Adds visual rhythm and modern appeal to concerts, exhibitions, or brand events.
- Landscape and Garden Projects: Surrounds trees, fountains, or outdoor structures with dynamic RGBW color transitions.
- Interior Design: Creates futuristic ceiling or wall ring effects for clubs, restaurants, and galleries.
- Art and Cultural Spaces: Accurately reproduces the colors of the artworks, allowing visitors to appreciate the details and beauty of the art.
The balance between soft diffusion and vivid brightness gives designers freedom to blend the light with natural or artificial surroundings.
7. Production and Quality Control
Each LED ring is carefully produced under rigorous quality standards. The production process includes:
- Precision PCB soldering and light uniformity calibration
- Silicone diffuser molding for consistent transmission
- Waterproof sealing tests
- Long-hour aging tests to ensure stability under various environmental conditions
Every ring undergoes a full lighting test before shipment to guarantee consistency across batches.
8. A Step Forward in Pixel Light Design
This new LED ring pendant light embodies the next evolution in pixel lighting design — combining art, precision engineering, and adaptability. Its outer-curved architecture allows designers to go beyond traditional boundaries, redefining how circular light interacts with architectural forms.
As part of Ledcolourlight's growing catalog of professional pixel lighting solutions, this product demonstrates the company's continuous commitment to innovation and customization. Whether used as a single circle or a cluster of interconnected rings, it's more than a lighting product — it's a design statement.
