Light Without Limits - Explore the Various Series of COB Strips

2025-11-10

COB LED Strips – Seamless, High-Brightness, and Ultra-Flexible Lighting

Upgrade your lighting experience with COB LED strips, the latest innovation in modern illumination. Unlike traditional SMD strips, COB strips feature hundreds of densely packed LED chips on a continuous substrate, delivering smooth, dot-free light that looks elegant and professional in any space. In this article, we'll explore the various series of COB LED strips, highlighting their unique strengths, ideal applications, and advantages over traditional SMD LED strips.

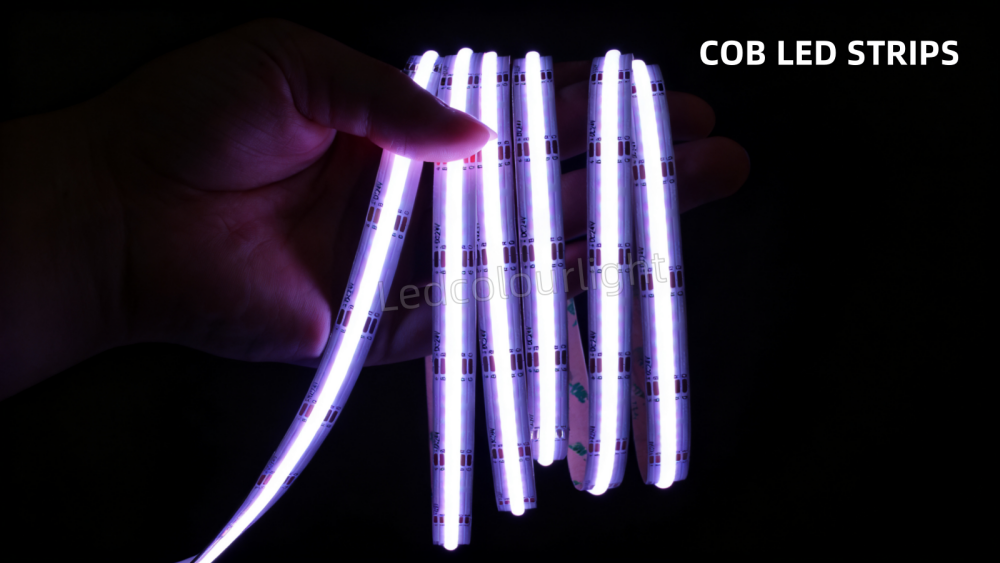

What Are COB LED Strips?

Unlike traditional LED strips, where discrete SMD LEDs are placed at intervals, COB LED flex strips refer to LED strips that use COB (Chip-on-board) packaging technology, which means that multiple LED chips are densely integrated on a substrate to form a high-brightness and high-uniformity light source. This process eliminates the gaps between light sources, resulting in a perfectly smooth, seamless "line of light" with zero spotting.

Key Upgrade over Standard SMD Strips:

Elimination of Spotting: The most significant advantage. Standard SMD strips create visible bright points, especially when installed close to a surface. COB strips provide a flawless, homogeneous glow.
Superior Heat Dissipation Performance: The COB packaging allows for more efficient heat dissipation from the LED chips to the substrate, contributing to longer lifespan and better performance.
Enhanced Reliability: With fewer solder joints and a robust, continuous encapsulation, COB strips are less prone to failure points.

A Comprehensive Classification of COB Strips

To specify the perfect COB LED flex strips for any application, it is essential to understand their classification across multiple technical dimensions.

1. By Voltage & Circuit Design

Voltage determines performance, safety, and installation flexibility.

⚡Low Voltage (DC):
DC 12V / 24V COB Strips: The industry standard. 24V strips are generally preferred for longer runs as they suffer less from voltage drop, allowing single lengths of up to 10 meters without significant dimming at the end.
High Voltage (AC):
⚡AC 120V / 240V COB Strips: Plug-and-play convenience, no power adapter required. A game-changer for large-scale installations. These strips can run up to 100 meters on a single power connection, drastically reducing the number of power injection points required and simplifying installation for facades, coves, and other long, continuous runs.

Compared to SMD strips, COB versions produce smoother light, consume less energy, and minimize wiring complexity.

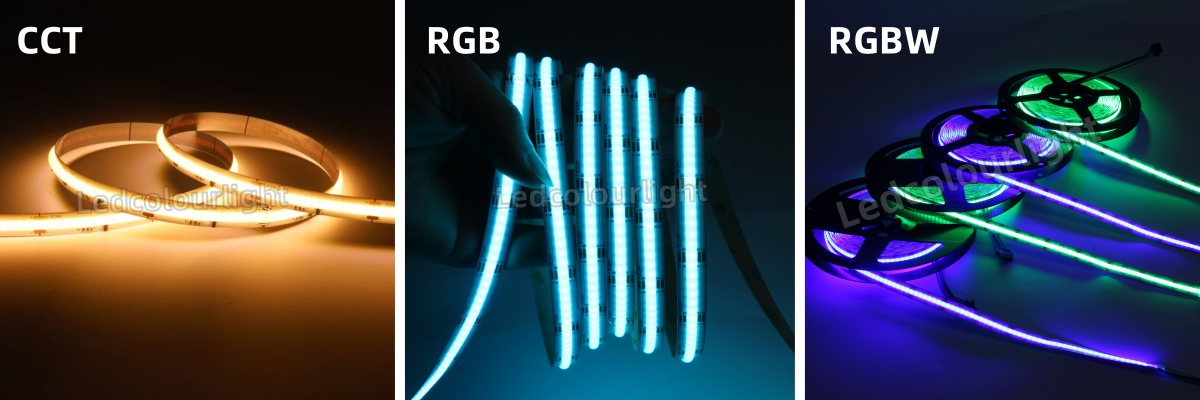

2. By Color Temperature & Chromaticity (The Color Series)

⚡Fixed CCT: Available in a range of standard Correlated Color Temperatures (2700K Warm White to 6500K Cool White). These COB LED strips deliver pure, stable light perfect for applications with a static, consistent ambiance.

⚡Tunable White (CCT): This series integrates warm white and cool white chips on a single strip. Using a dedicated controller, you can seamlessly adjust the light from a cozy warm glow to an invigorating cool white. Perfect for residential spaces, hotels, and restaurants where lighting must adapt to the time of day or function.

⚡RGB COB Strips: Combine Red, Green, and Blue chips to create millions of colors. Excellent for decorative, accent, and mood lighting.

⚡RGBW COB Strips: Add a dedicated White chip to the RGB array. This solves the problem of poor-quality "mixed white" from RGB alone, delivering both vibrant colors and a pure, bright white for functional lighting.

⚡RGBCCT COB Strips: The ultimate in flexibility. Combining RGB with Tunable White (WW+CW), this 5-in-1 solution offers the entire spectrum of color and the full range of white light tunability, all from a single strip.

Compared to traditional RGB SMD strips, COB RGB strips offer: No visible light dots or shadow gaps. Smoother color blending. Higher color rendering (CRI > 90).

3. By Power, Brightness & Density

The performance of COB LED flex strips is directly linked to their power consumption (Watts per Meter) and LED density.

⚡Standard Density: Ranging from 320~400 LEDs/m, 5W/m to 10W/m. Suitable for general accent and decorative lighting.

⚡High Density / High Power: Ranging from 480–896 chips/m, 12W/m to 30W/m and beyond. These cob strips deliver significantly higher lumen output, making them suitable for task lighting and even primary ambient lighting in some applications.

COB LED strips achieve higher lumen output per watt while maintaining a uniform linear light effect, eliminating the dotted shadow often seen with traditional SMD designs.

4. By Form Factor & Flexibility

⚡Standard Flexible Strips: The most common type, can be bent around corners and curved surfaces.
⚡Side-Emitting COB Strips: Light is emitted from the side rather than the top, perfect for curved designs or linear architectural accents.
⚡Ultra-Narrow or Slim COB Strips: Compact designs (as thin as 3~4mm) that fit into fine furniture, mirrors, or art frames.
⚡Cuttable vs. Non-Cuttable:

Standard Cuttable: Can be cut at designated points (typically every few centimeters, such as 2.5 cm, 5 cm).
Cut-Anywhere COB Strips: A revolutionary design featuring an intricate cross-circuit layout. They can be cut to length at any point without damaging the remaining section, offering unparalleled installation flexibility and zero waste.

Compared to SMD alternatives, COB strips deliver uniform light lines without secondary diffusers — reducing installation cost and complexity.

5. Functional Control Series

⚡ Constant-On COB LED Flex Strips: Simple and reliable — plug, connect, and illuminate. Ideal for budget-friendly lighting projects.
⚡ Dimmable COB Strips: Compatible with PWM or 0–10V dimmers, offering smooth, flicker-free brightness control.

⚡ Smart COB LED Strips: Integrate Wi-Fi, Bluetooth, or RF control. Manage brightness, color temperature, and effects through mobile apps or voice assistants.

6. By Protection Level (IP Rating)

⚡IP20: Unprotected, for dry, indoor environments.

⚡IP65: Silicone tube coated, dust-tight, and protected against low-pressure water jets. Ideal for kitchens, bathrooms, and outdoor areas under eaves.

⚡IP68: Fully waterproof and submersible. The gold standard for outdoor landscaping, pool lighting, and any application involving direct contact with water.

IC-Controlled Smart Pixel Series (Addressable COB Strips)

This is the next generation of lighting — where every segment of your LED strip becomes individually controllable.

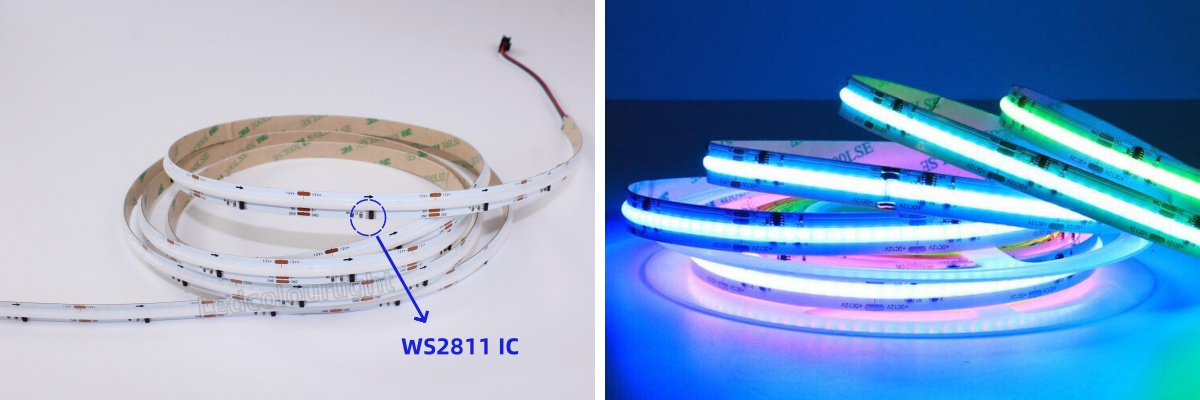

⚡ WS2811 COB LED Flex Strips: External IC control, each segment is programmable. Optional specifications: WS2811 IC + CCT: 720 LEDs/m, WS2811 + RGB: 420 / 720 LEDs/m. Affordable and ideal for decorative and ambient lighting.

⚡WS2818 RGB COB Strips: Features a signal break-point resume function, allowing the strip to continue operating even if one pixel fails. This ensures higher stability and reliability for large or complex installations. Eenables chasing, fading, and rainbow effects with absolute precision.
⚡ WS2814 RGBW COB Strips: Adds a white channel for enhanced brightness and color balance. Optional specifications: 784 / 896 LEDs/m. Perfect for commercial showcases, event installations, and public light art decoration.
⚙️ Features & Advantages:

Addressable and programmable per segment.
Support for multiple protocols (WS2811, WS2818, WS2814, WS2805, etc.).
Music-reactive, app-controlled, or remote-controlled effects.
Create stunning visual effects: running light, breathing light, color waves, and rainbow transitions.
Compared to standard COB LED strips, IC-controlled COB strips deliver an immersive, dynamic lighting experience — transforming light from functional to emotional.

✨ Why Choose COB LED Strips Over Traditional SMD Strips

Feature	COB LED Strips	SMD LED Strips
Light Uniformity	Continuous, no visible dots	Visible LED points
Flexibility	Excellent, bendable in tight spaces	Moderate
Heat Dissipation	Better thermal management	Average
Brightness Efficiency	High lumens per watt	Moderate
Color Rendering (CRI)	Up to 95+	Typically 80–85
Installation	Easy and clean	May require diffusers
Aesthetic Effect	Smooth and elegant	Pixelated light line

In short: COB strips are the modern evolution of linear lighting — cleaner, brighter, more efficient, and far more versatile.

Application Scenarios: Matching the COB Strip to the Project

Architectural Covelighting: Tunable White or high CRI Fixed CCT COB strips in 24V. The seamless output is critical for a clean, professional shadow line.
Museum & Retail Display: High CRI (>95) COB strips are non-negotiable here. They ensure artifacts and products are seen in their true colors without any distracting hotspots.
Residential Kitchen & Under-Cabinet Task Lighting: High CRI, High-Density COB strips in 3000K-4000K provide excellent, uniform light for food preparation.
Commercial Signage & Channel Letters: High Voltage COB strips are ideal for their long run capabilities and brilliant, even illumination inside letters and lightboxes.
Entertainment & Hospitality: RGBCCT COB strips controlled via SPI protocol or a smart system offer the ultimate flexibility to create dynamic atmospheres from a vibrant party mode to a calm, warm white.

For designers, architects, and installers, specifying the right COB strip—whether it's a simple IP20 accent light or a complex, SPI-controlled RGBCCT facade system—is the key to achieving flawless, future-proof lighting that truly blends form with function.
