Category
P50mm P100mm Transparent Curtain Display LED Mesh
LCL-RGB-LM20
Delivery:
EXW
minimum order:
1 square meter
Country of Origin:
Shenzhen
LED mesh is a flat curtain-style display with a large number of LEDs. It can display moving patterns, texts, and images. Foldable, high transparency, ultra-thin design, an excellent choice for stage backgrounds and building facade decorations. Modular design, composed of multiple modules spliced together to form a whole, without the need for complex installation structures. The size can be customized according to the project, and can be bent, folded, rolled, hung, etc.
Quantity:
P50mm P100mm Transparent Curtain Display LED Mesh
- Video for LED Mesh Lighting Effects, P50mm, 4LEDs per light:
Beautiful dynamic effects can be displayed after programming and controlling
- Description for LED Mesh:

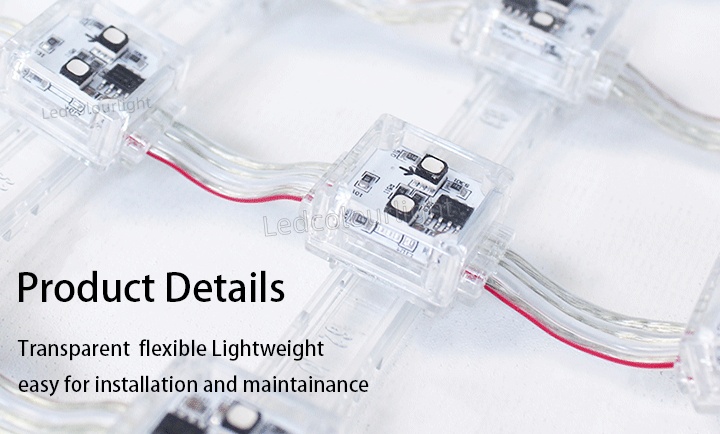

Multiple modules of LED mesh display are ideal for covering huge building facades, ceilings, or any other structure to form a dynamic media screen to display videos and pictures. Adopt Epistar high-brightness chip, long life, strong product stability, and high controllability. The pitch of transparent LED mesh curtain is P50-100mm, 100-400 dots per square meter, and the maximum LED mesh display module is 1m*6m, which can be customized according to your project area. TTL or DMX512 control optional, RGB full color. Flexible, allowing you to bend and roll them easily and can be used on any surface. The high transparency does not obscure the appearance of the facade itself. Lightweight construction minimizes weight stress, reducing installation time and expense.
Features for LED Mesh:
- Dot size: 20mm. Available in 25mm, 30mm
- Anti-flame retardant PC engineering plastics, transparent shell
- Epistar SMD3535 lamp beads as the light source
- Pixel pitch of LED mesh is 50mm, 400 dots per square meter, or customized to suit your project plans
- The maximum module is 6*1m, multiple modules can be connected together to cover more areas

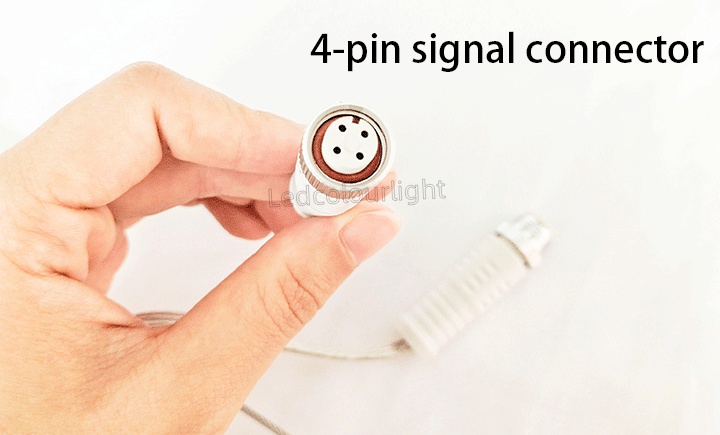

- 4-pin signal input and output
- TTL or DMX control available, RGB full color

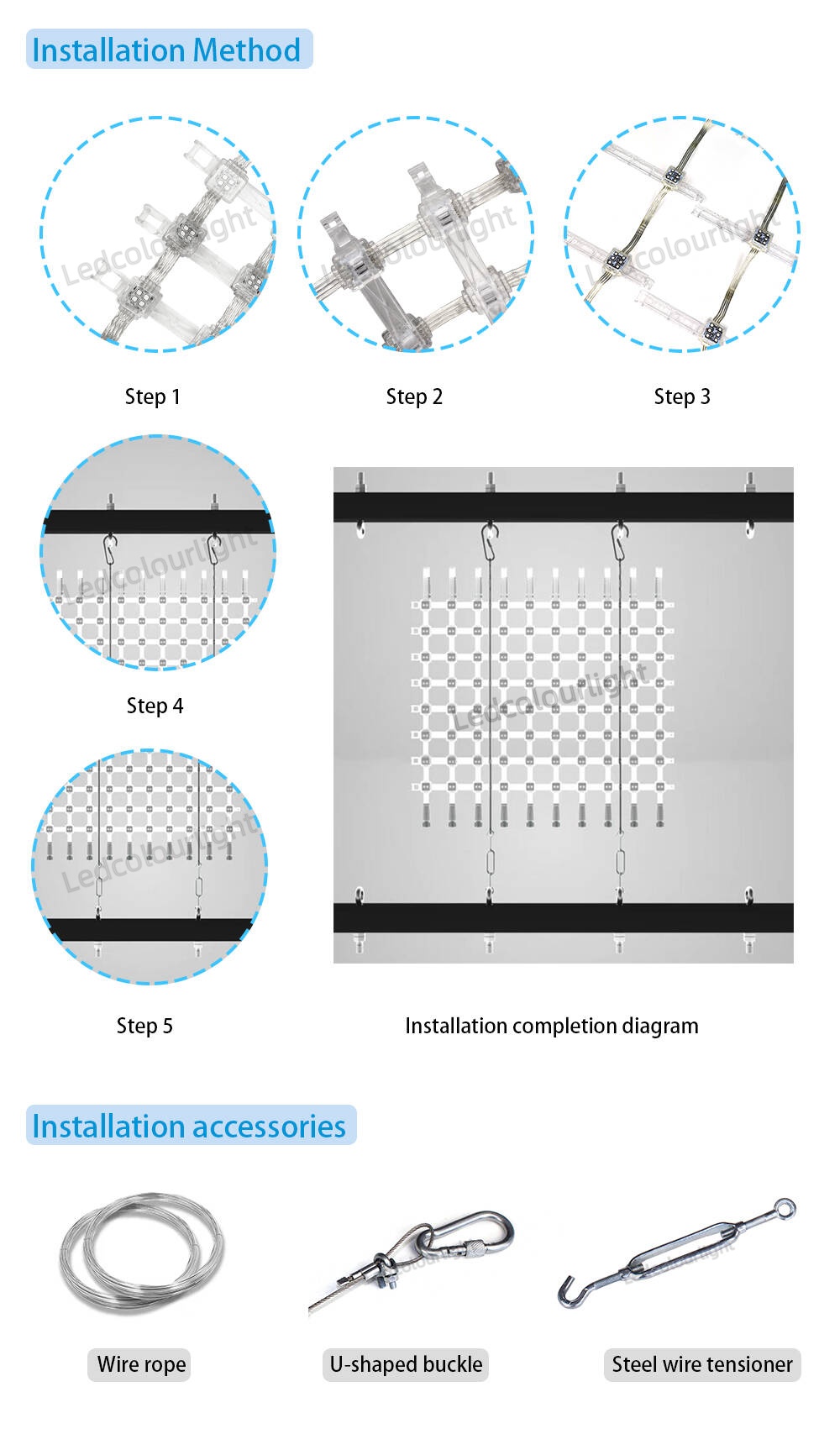

- Flexible, lightweight, suspended by wire rope, easy to install

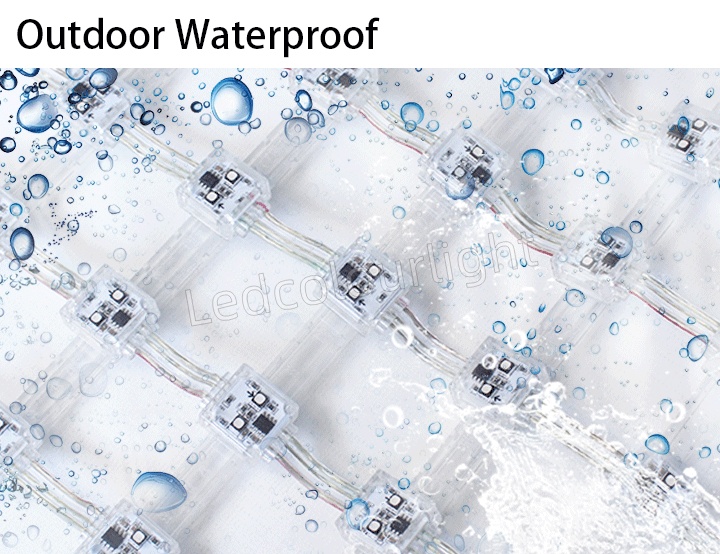

- IP67 protection
More Details for LED Mesh Display:
