Successful Delivery of 1900 Standing 50mm 3D LED Rainbow Tube Lights

2025-08-05

Check out this Stunning Video of the Ledcolourlight 50mm LED 3D Tube in Action!

1900pcs High-Performance 3D LED Rainbow Tube Lights Successfully Delivered: Perfect for Outdoor Installation Project

In a remarkable production and delivery milestone, Ledcolourlight has successfully completed and shipped a total of 1900 pieces of 50mm 3D LED Rainbow Tube Lights with vertical brackets for an outdoor decorative lighting project. The order included 1700 units of 1-meter and 200 units of 2-meter 3D LED tubes, all tailored to meet the strict requirements of professional show and park lighting environments.
This project demonstrates not only our manufacturing strength and attention to quality but also our commitment to creating fully customizable solutions that meet unique project specifications.

I. Product Highlights for 50mm 3D LED Tube: Built for Performance and Visual Impact

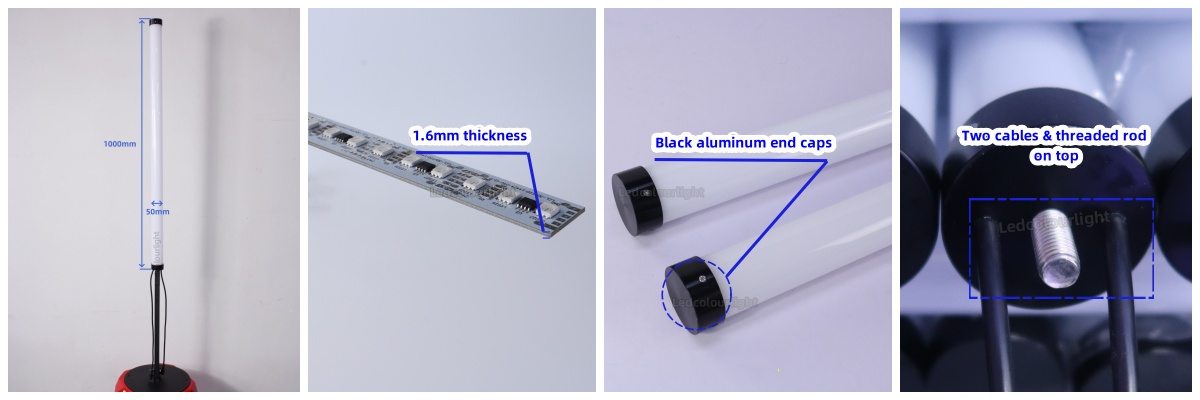

The 50mm 3D LED tube DMX features a milky white PC round tube shell and black aluminum end caps, ensuring both aesthetic appeal and robust protection. The dual-sided illumination design guarantees 360° shadow-free lighting with excellent color mixing, eliminating any dark zones.

Key Specifications:

- Diameter: 50mm {Available in 40mm, 80mm - DMX Tube Light INFO, 100mm, and 150mm}

- Length: 100cm & 200cm (30cm, 50cm, 120cm, 150cm, 250cm, and 300cm available)

- Material: Milky white PC cylindrical housing

- End Caps: Black aluminum sealed caps for durability and elegance (opaline PC available)

- Lighting: Double-sided illumination with 360° shadow-free glow

- LED Density: 96 SMD5050 LEDs per meter for smooth, vibrant effects (120/144 LEDs available for higher densities)

- Pixel Density: 16 individually controllable pixel points per meter

- Control Protocol: DMX512 protocol with RGB color mixing, full programmable color customization

- Cabling: Each 3D tube light has two 75cm 4-pin waterproof cables from one end for easy plug-and-play daisy-chaining and installation, and IP65 waterproof connectors for reliable outdoor use

- Mounting: Each rainbow tube light includes an M10 threaded rod for secure standing installation

In terms of control flexibility, each DMX LED tube can be assigned a unique DMX address, allowing for individual patterns and effects across the installation—ideal for creating complex 3D lighting shows or interactive designs. Alternatively, all 3D LED tubes can share the same DMX address for unified, synchronized color changes and transitions. This adaptability makes the system suitable for both dynamic light art and uniform architectural displays.

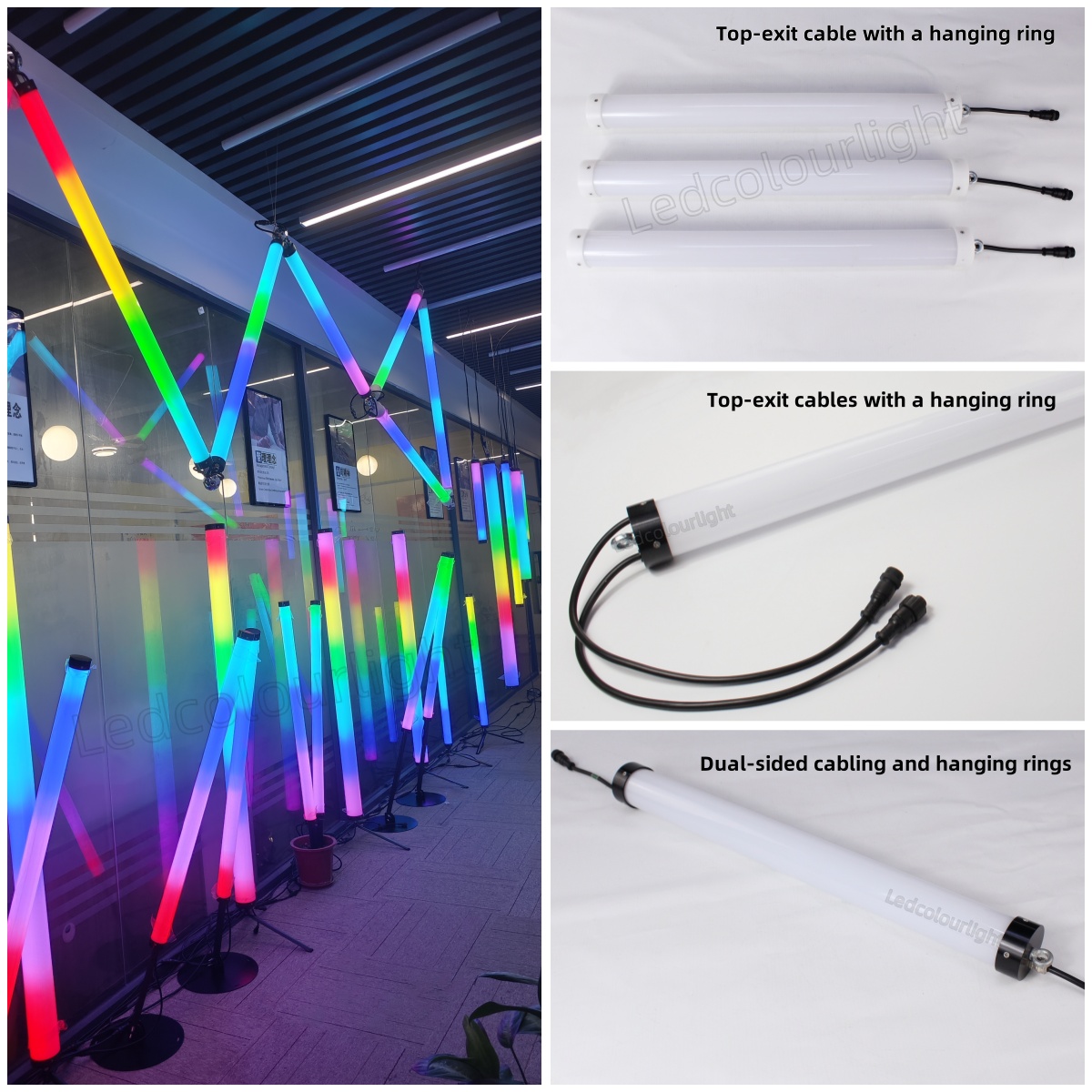

To enhance installation flexibility, the 3D LED tubes are also available with dual-sided cabling and hanging rings for suspended mounting, or a top-exit cable with a hanging ring for vertical hanging configurations.

different cable out for 50mm 3d led tube

To learn more about our pixel tube light series , click here.

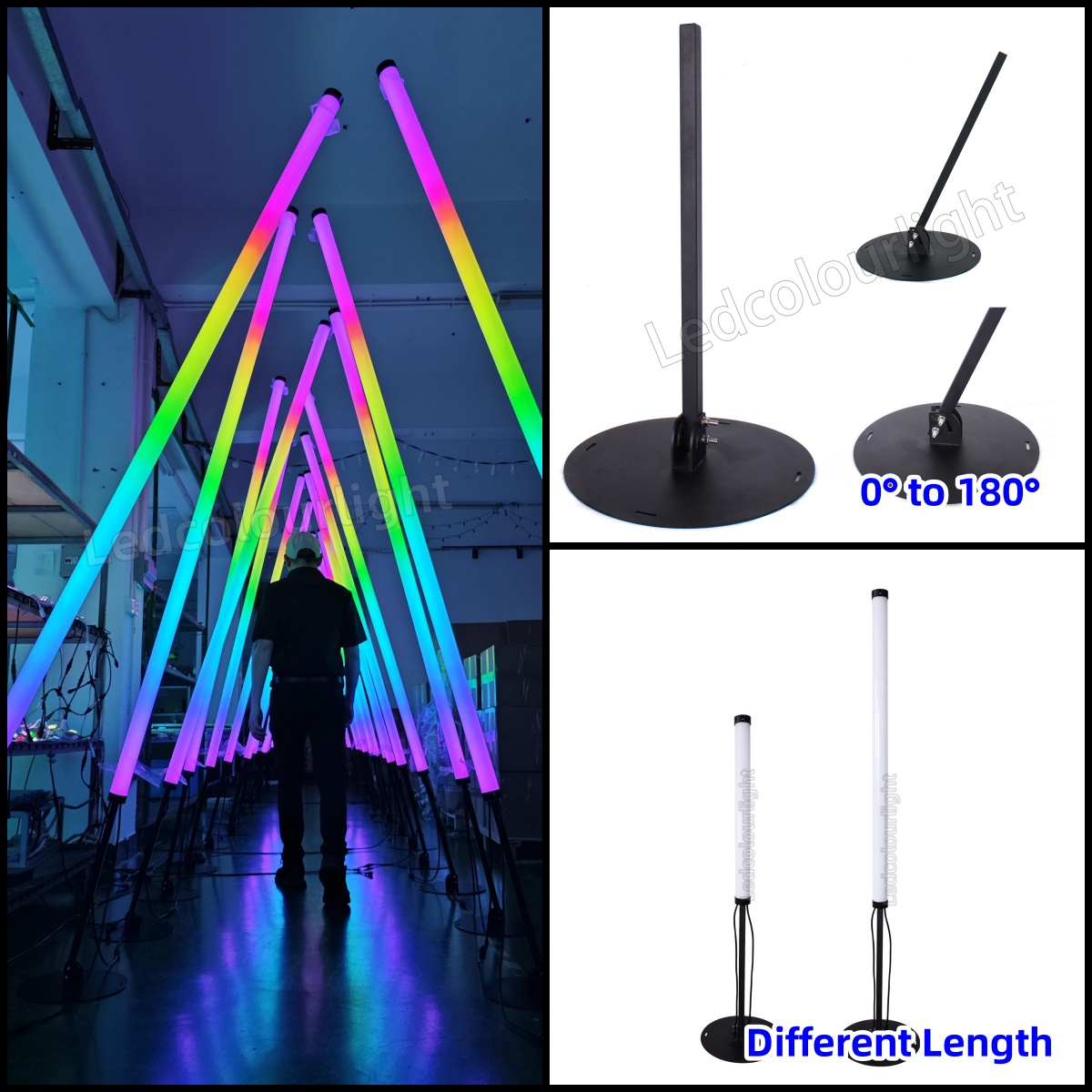

II. Adjustable Mounting System for 50mm Rainbow Tube Lights: Multi-Angle, Endless Display Possibilities

Each 3D tube light comes with a custom-designed standing support system, consisting of:

- 30cm diameter circular base plate, four holes on the base for ground fixing, stable installation

- 50cm vertical standing pole (height customizable per request)

- Adjustable mounting angle from 0° to 180°, allowing for artistic arrangement and lighting design creativity

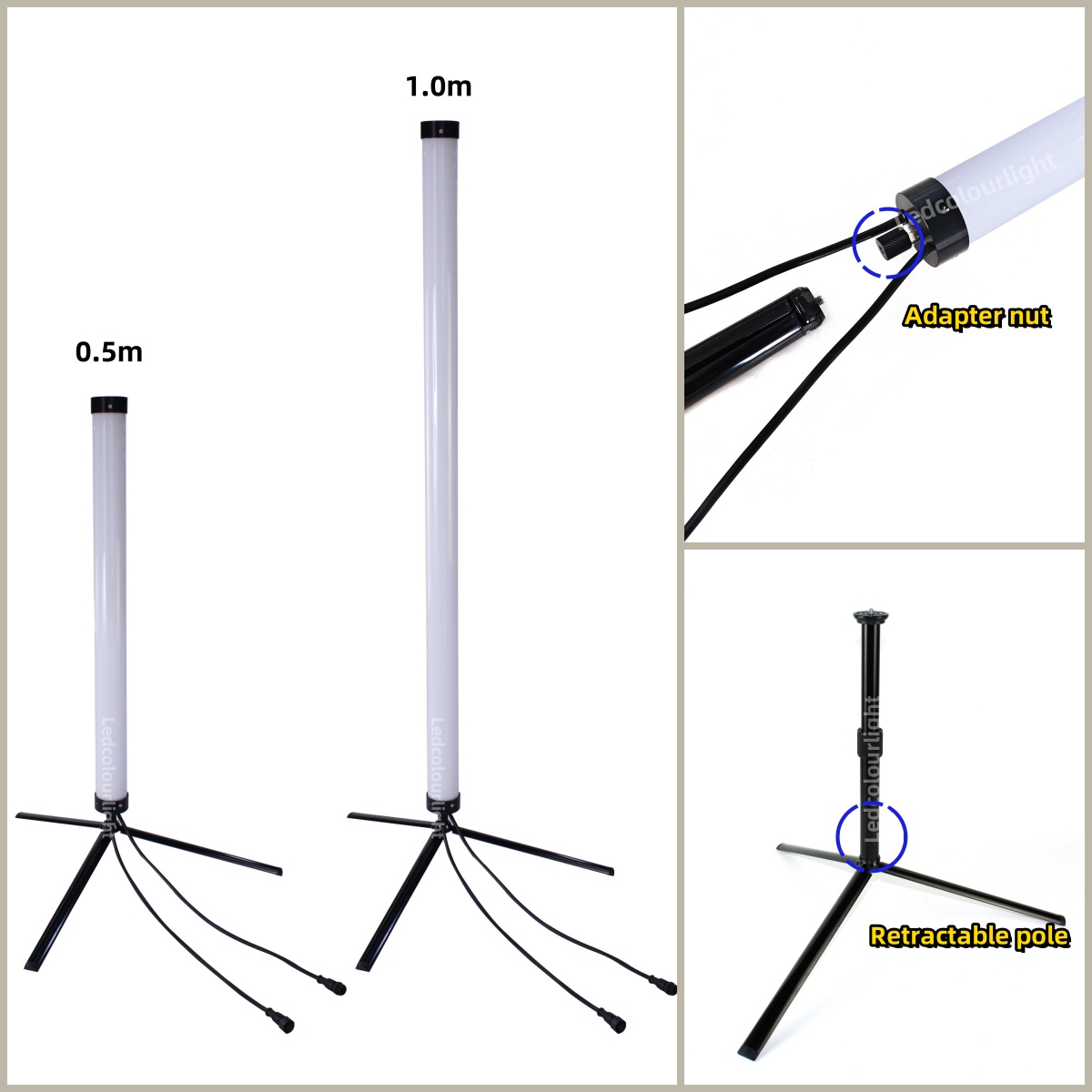

This support structure ensures the lights remain steady and aligned across diverse ground surfaces, making them ideal for temporary or permanent outdoor lighting installations. We also provide tripod brackets for 50mm rainbow tube light to provide more mounting options.

50mm rainbow led tube with vertical standing bracket

III. Control System for 3D LED Tube DMX: Seamless Synchronization with Art-Net

To handle the massive number of pixel points and maintain perfect synchronization, the system was integrated with 14 units of 16-output Art-Net controllers. This setup ensures:

- Smooth transmission of lighting signals

- Real-time control and pixel mapping

- Flexible network-based addressing for easy installation and operation

IV. Built to Withstand the Outdoors: IP65 Waterproof Design

All 1900 tube lights were manufactured with IP65-rated waterproofing, enabling reliable performance in outdoor environments exposed to rain and moisture. While most units are used for ground-standing installation, the waterproof rating also supports potential suspended applications in open spaces.

Waterproofing is enhanced with:

- Professional sealing at the aluminum end caps

- Silicone gel protection inside

- 4-pin waterproof connectors ensuring safe and secure power / data delivery

V. Rigorous Production Process for 50mm 3D Tube Light: Quality from Start to Finish

1. Precision Manufacturing & Component Selection
Each rainbow tube light is assembled using premium milky white PC tubes for optimal light diffusion, paired with durable black aluminum end caps to enhance heat dissipation and longevity. The high-efficiency RGB SMD5050 LEDs are carefully calibrated to ensure uniform brightness and color consistency.

2. Strict Quality Control & Aging Test
Before shipment, every unit undergoes a 24~48 hours aging test under various environmental conditions to verify:

Stable DMX signal transmission
Waterproof integrity (IP65 validation)
Color accuracy & brightness uniformity
Mechanical durability (vibration & impact resistance tests)

3. Visual inspection for housing integrity and cable sealing

4. Our quality control team also performed individual function testing on each light before packing, ensuring a 100% pass rate on delivery.

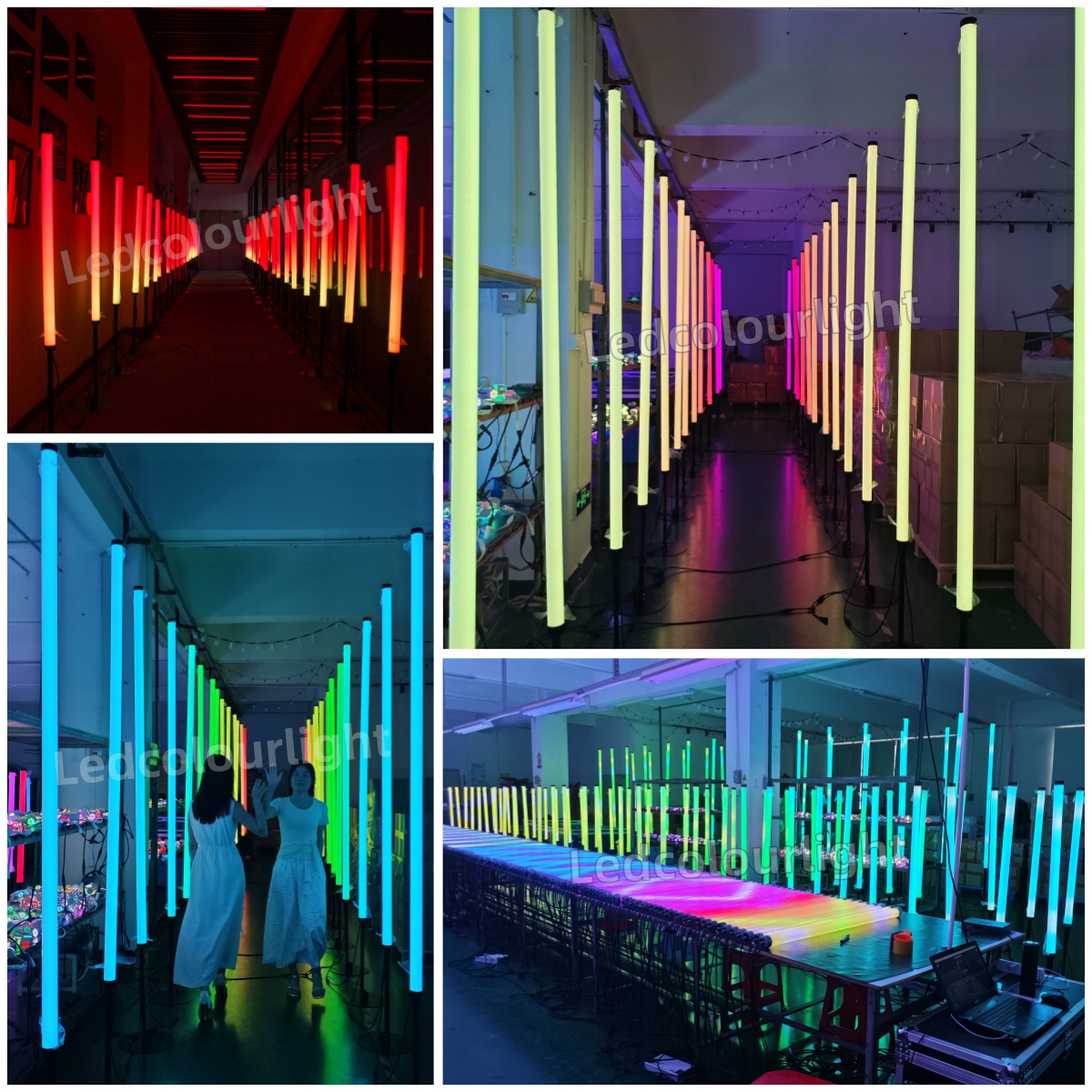

VI. Factory Installation Demonstration: Practical Visualization for Clients

To help clients visualize the actual effect, we conducted in-house installation demonstrations with both 1-meter and 2-meter 3D tube lights:

1-meter units were evenly aligned from the front desk to the office hallway, creating a seamless tunnel-like RGB glow
A combination of 1-meter and 2-meter tubes were arranged in the workshop to mimic a 3D matrix layout

These installations showcased the versatility of the lights for stage shows, light tunnels, interactive experiences, park decoration, and more.

Ⅶ. Secure Packaging for International Shipping

All products were packaged in standard export cartons, followed by a layer of protection with wooden frames to ensure safe delivery over long-distance transport. This double-layer protection prevents damage during long-distance logistics.

Why Choose Ledcolourlight 50mm 3D Tube Lights?

✔ No Dark Zones – 360° even illumination for immersive lighting
✔ Robust Build – IP65 waterproof, corrosion-resistant aluminum & PC materials
✔ Plug-and-Play – Pre-wired with waterproof connectors for quick setup
✔ Customizable Control – DMX-compatible for advanced lighting programming
✔ Multi-Application – Ideal for stages, exhibitions, retail displays, and outdoor decor

Conclusion: A Perfect Combination of Customization, Reliability, and Artistry

The successful delivery of 1900 DMX-controlled 3D tube lights marks another milestone in Ledcolourlight's journey of serving complex lighting projects worldwide. With precision engineering, customizable options, and strict quality control, we are proud to support lighting designers, event planners, and architectural engineers in transforming their creative visions into immersive real-world experiences.

If you're planning your next large-scale lighting project, contact us today to discuss custom lighting solutions tailored to your needs!
