Turn Simple Pixel LED Bars Into Spectacular Structures
2025-12-09
Unlocking Geometric Creativity: Designing Light Structures with 20×20mm Pixel LED Bars
The 20×20mm Pixel LED Bar can be used to construct a wide variety of geometric light art installations, making it a versatile tool for creative lighting projects. Available in 0.5-meter and 1-meter lengths, it features a slim black aluminum profile and supports multiple interchangeable PC diffusers, allowing designers to customize both the appearance and the light output. More than just an LED light board in a rigid shell, the LED bar pixel functions as a modular building block—enabling the creation of shape, depth, and dynamic visual dimension in architectural and stage lighting designs.
This article focuses on one core theme:
The Pixel LED Bar as a geometry-building instrument.
With this perspective, its technical specifications become more than numbers—they become the foundation for architectural creativity, kinetic lighting, and 3D visual storytelling.
The Pixel LED Bar as a geometry-building instrument.
With this perspective, its technical specifications become more than numbers—they become the foundation for architectural creativity, kinetic lighting, and 3D visual storytelling.
1. A Modular Pixel LED Bar Engineered for Structural Design
Each addressable LED bar measures 20×20mm, a dimension that hits the perfect balance between strength and slimness. The internal configuration consists of high-brightness SMD5050 LEDs arranged as 30 LEDs with 5 pixels in every 0.5m pixel LED bar (60 LEDs with 10 pixels in 1.0m), powered via SPI-UCS1903 or DMX512 control.
You can choose between two power architectures:
▶ DC12V (60LEDs with 20 pixels per meter, or 60 LEDs with 60 pixels model)
▶ DC24V (recommended for long-distance or high-power installations)
These Mi Pixel LED Bars are fully sealed with a weather-resistant design, achieving IP65 waterproof protection, enabling permanent outdoor installations even under rain, wind, and fluctuating temperatures.
You can choose between two power architectures:
▶ DC12V (60LEDs with 20 pixels per meter, or 60 LEDs with 60 pixels model)
▶ DC24V (recommended for long-distance or high-power installations)
These Mi Pixel LED Bars are fully sealed with a weather-resistant design, achieving IP65 waterproof protection, enabling permanent outdoor installations even under rain, wind, and fluctuating temperatures.

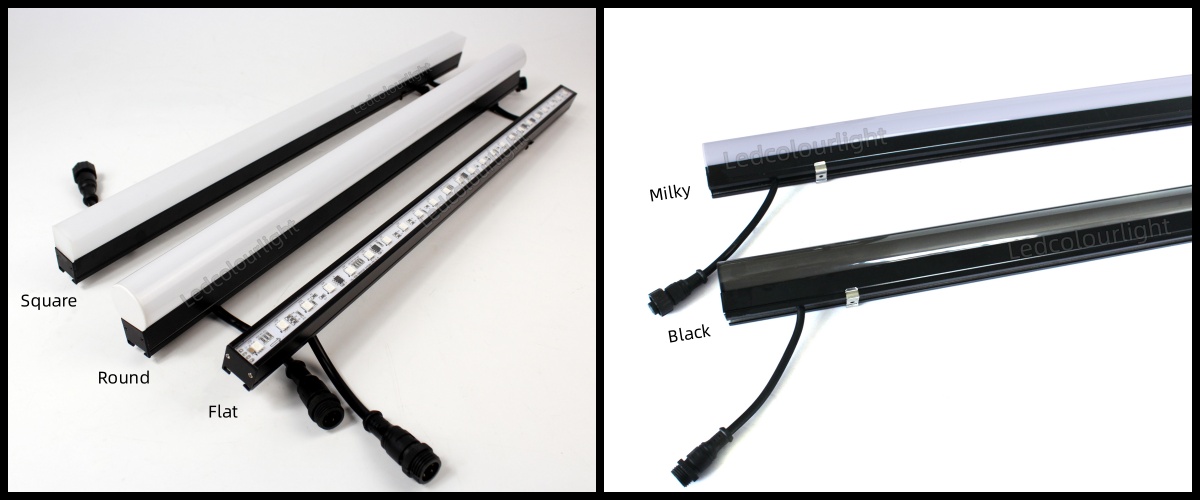

2. Multiple Diffuser Options: The First Level of Geometric Expression
Light shape begins with light diffusion. This is why the addressable LED bar offers a complete library of PC diffusers:
▍Flat Covers
▍Flat Covers
• Transparent – reveals each pixel clearly for crisp, sharp dot-driven visual effects.
• Black – an elegant "invisible look" during daytime; pixels appear only when powered.
▍Arc Covers (Curved Lens Style)
• Milky White – effectively turning discrete points into continuous luminous surfaces, delivers a soft, evenly diffused glow suitable for ambient lighting.
• Black – provides a gentle, luminous arc effect with high contrast in darker spaces.
▍Square Covers
• White / Black – geometric diffusers for rigid lines and cube-like visual surfaces.
• Black – an elegant "invisible look" during daytime; pixels appear only when powered.
▍Arc Covers (Curved Lens Style)
• Milky White – effectively turning discrete points into continuous luminous surfaces, delivers a soft, evenly diffused glow suitable for ambient lighting.
• Black – provides a gentle, luminous arc effect with high contrast in darker spaces.
▍Square Covers
• White / Black – geometric diffusers for rigid lines and cube-like visual surfaces.
Each diffuser alters the visual character of the pixel LED bar—transforming it from a simple rigid light strip into a glowing rod, a backlit line, a pixel tube, or a sharp punching point in a light sculpture. This variety forms the visual vocabulary designers need for geometric lighting.
3. Beyond Linear Lighting: Building Shapes, Volumes, and Spatial Forms

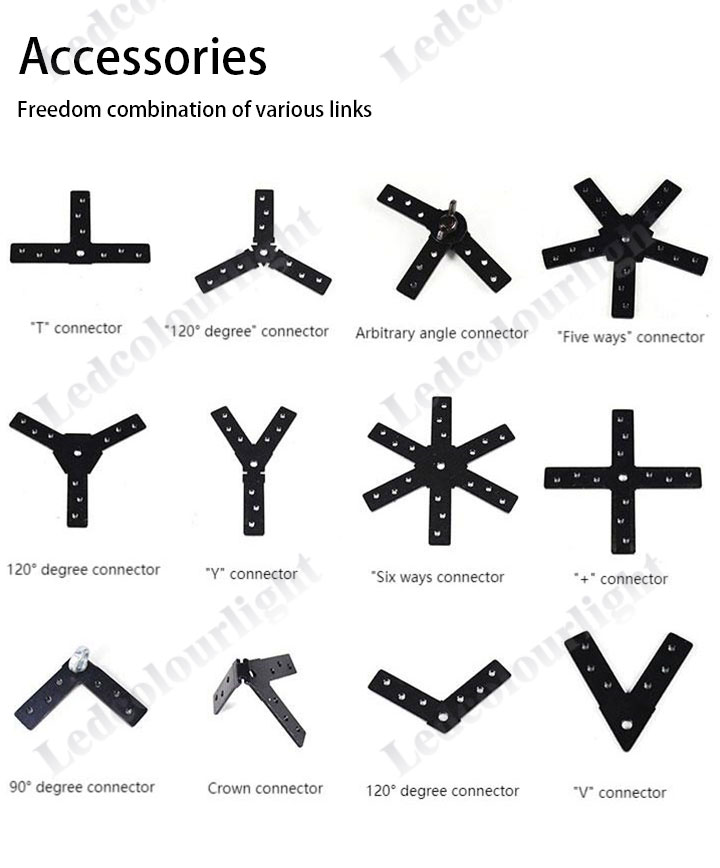

The true identity of this product emerges when designers start assembling multiple pixel LED bars with joining clips. The system is engineered to support stable and repeatable geometric formations, making it an excellent component for stage art, theme parks, commercial plazas, exhibitions, and night attractions.
Here are the core geometric capabilities:
3.1 Square Structures (Cubic Frames & Light Boxes)
Using four bars and corner connectors, designers can construct:
Here are the core geometric capabilities:
3.1 Square Structures (Cubic Frames & Light Boxes)
Using four bars and corner connectors, designers can construct:
- Square frames
- Cube outlines
- Floating 3D boxes
- Modular matrix grids
With flat black covers, these LED cubes appear nearly invisible until illuminated, giving installations a surprising and futuristic aesthetic.
3.2 Triangle Structures (Pyramids & Multi-facet Shapes)
Triangular connections allow for:
3.2 Triangle Structures (Pyramids & Multi-facet Shapes)
Triangular connections allow for:
- 3-D pyramids
- Angular prism shapes
- Polygon combinations (3-points, 6-points, 9-points)
This geometry is perfect for decorative installations, sci-fi-themed rooms, stage props, or interactive light sculptures that rely on angular symmetry.
3.3 Firework-Style 3D Bursts
By joining several pixel LED bars at a central hub, lighting designers can build:
3.3 Firework-Style 3D Bursts
By joining several pixel LED bars at a central hub, lighting designers can build:
- "Starburst" effects
- Radial fireworks
- Light spokes for kinetic sculptures
- Decorative explosion patterns for festivals and events
Each pixel can be programmed independently (SPI) or via DMX universes, enabling dynamic, high-contrast motion effects like exploding rays, expanding waves, or energy pulses.
3.4 Architectural Outlines & Visual Pathways
Beyond standalone shapes, pixel bars can also be integrated into buildings:
- staircases
- roof edges
- structural frames
- public art installations
- long linear pathways with repeated pixel segments
The slim 20×20mm profile ensures clean architectural integration.
4. Advanced Control Capabilities (SPI UCS1903 or DMX512)
SPI (UCS1903) Control
Ideal for:
- High pixel-count scenes
- Video mapping
- Complex animations
- Rapid data transmission with minimal cost
- Kinetic art driven by playback hardware
SPI enables designers to treat each pixel as a part of a high-definition video canvas.
DMX512 Control
Recommended for:
- Stage lighting systems
- Long-distance wired installations
- Rental setups
- Architectural outlines
- Theme park infrastructure
DMX offers stable daisy-chain installations and integration with professional lighting consoles such as MA, Chamsys, or MADRIX.
5. Built for Indoor and Outdoor Durability
The Pixel LED Bar is constructed around a black aluminum housing, ensuring:
- Excellent heat dissipation
- Longer LED lifespan
- High structural rigidity
- Resistance to UV and environmental stress
With an IP65 rating, it is suitable for:
- Outdoor facades
- Winter festivals
- Theme park installations
- Nighttime art trails
- Stage touring setups exposed to weather
This durability allows designers to safely build large-scale geometric installations without the maintenance concerns associated with conventional LED strips.
6. Application Scenarios: From Arts to Industry
The versatility of geometric building places the addressable LED bar into multiple professional fields:
Entertainment Lighting: Concerts, festivals, DJ booths, stage props with 3D light frameworks, touring light sets.
Entertainment Lighting: Concerts, festivals, DJ booths, stage props with 3D light frameworks, touring light sets.
Commercial Spaces: Mall installations, brand launch events, immersive showrooms.
Architectural Enhancement: Hotel facades, outdoor plazas, public art sculptures.
Amusement Parks & Attractions: Decorative tunnels, light cubes, interactive geometric zones
Exhibitions & Museums: Science-themed LED sculptures, motion-reactive geometric artwork, futuristic lighting corridors
These installations often require repeated geometric shapes—and the Pixel LED Bar system excels exactly there.
Architectural Enhancement: Hotel facades, outdoor plazas, public art sculptures.
Amusement Parks & Attractions: Decorative tunnels, light cubes, interactive geometric zones
Exhibitions & Museums: Science-themed LED sculptures, motion-reactive geometric artwork, futuristic lighting corridors
These installations often require repeated geometric shapes—and the Pixel LED Bar system excels exactly there.
7. Why the Pixel Bar Excels in Geometric Designs
A summary of its engineering advantages:
- Consistent 20×20mm dimension → perfect for modular assembly
- Multiple length options (0.5m / 1m) → scalable patterns
- Multiple diffuser types → visual diversity
- SPI or DMX512 protocol → flexible show control
- IP65 waterproof → outdoor reliability
- Rigid aluminum profile → structural stability
- Precise pixel segmentation → smooth animations
- Connecting clip assembly system → easy geometric construction
In essence, this addressable LED bar is not just an LED fixture—it is a creative framework.
Conclusion: Build Light, Build Geometry, Build Experience
The 20×20mm Pixel LED Bar redefines what designers can create with linear lighting. By focusing on geometric construction, it becomes a universal component for modern light installations—capable of forming cubes, triangles, fireworks, tunnels, matrices, frames, and endless custom shapes.
For designers seeking a product that offers structural freedom, visual precision, and strong durability, this addressable LED bar stands out as a powerful and flexible tool. Whether you're constructing a monumental outdoor artwork or crafting an immersive indoor experience, the geometric potential of this bar opens the door to a new generation of creative lighting.
